NVE ADL024-14E
Click Image for Gallery
The NVE ADL024-14E nanopower digital switch integrates NVE’s patented Spintronic GMR technology. Which offers a digital low-power CMOS circuitry and onboard signal processing. The ADL series from NVE is internally duty cycled at 55Hz to further reduce the power consumption which is ideal for operating from a 3.3V power supply or single lithium cell battery. The nanopower switch is extremely small in an ultraminiature ULLGA package and has a magnetic operate point of 28Oe (typ.).
- GMR nanopower digital switch
- Operating voltage between 2.4V and 3.6V
- Quiescent current of 0.13µA(typ.) at 2.4V
- Duty cycled at 55Hz for low power consumption
- Magnetic operate point of 28Oe (typ.)
- Precise detection of low magnetic fields
- Release differential between 2Oe and 14Oe
- Operating temperature range from -40°C to +125°C
- Ultraminiature 1.1mm x 1.1 mm ULLGA package
The NVE ADL024-14E GMR nanopower digital switch covers the following applications:
- Portable instruments
- Utility meters
- Lithium cell powered application

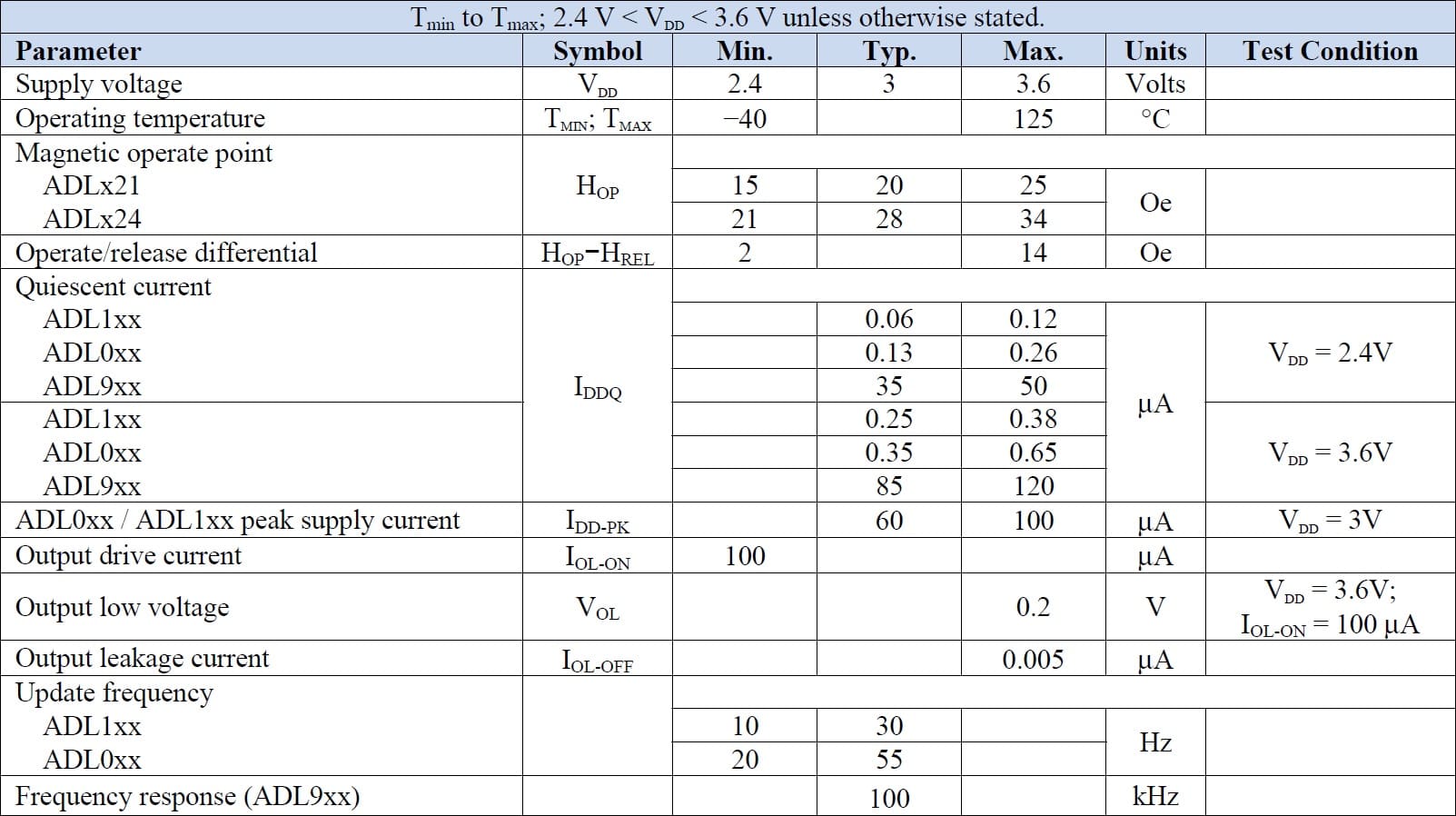

The below table gives the full specifications of the NVE ADL series including the ADL024-14E
| Specifications | |
| Additional Features |
|
| Frequency Response | 55Hz |
| Magnetic Orientation | Cross-axis |
| Operating Temperature | -40°C to +125°C |
| Output Configuration | Current sink to 100µA |
| Supply Voltage | 3.6V |
