PCB terminals are universal, direct PCB connector for industrial electronics.
The LM 3.50/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a clamping yoke screw connection. Designed with a conductor outlet direction of 90° and a choice from 2 up to 12 poles and a 3.5mm pitch. The LM 3.50/90 series from Weidmüller have a fully automatic assembly using wave soldering and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .
The below table gives the specifications of the Weidmüller LM 3.50/90 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LM 5.08/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a clamping yoke screw connection. Designed with a conductor outlet direction of 90° and a choice from 2 up to 24 poles and a 5.08mm pitch. The LM 5.08/90 series from Weidmüller have a fully automatic assembly using wave soldering and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .
The below table gives the specifications of the Weidmüller LM 5.08/90 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LSF-SMD 3.50/180 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 12 poles and a 3.5mm pitch. The LSF-SMD 3.50/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .
The below table gives the specifications of the Weidmüller LSF-SMD 3.50/180 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LSF-SMD 3.50/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 90°, and a choice from 2 up to 12 poles and a 3.5mm pitch. The LSF-SMD 3.50/90 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .
The below table gives the specifications of the Weidmüller LSF-SMD 3.50/90 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LSF-SMD 5.00/180 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 12 poles and a 5mm pitch. The LSF-SMD 5.00/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .
The below table gives the specifications of the Weidmüller LSF-SMD 5.00/180 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LSF-SMD 5.00/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 90°, and a choice from 2 up to 8 poles and a 5mm pitch. The LSF-SMD 5.00/90 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .
The below table gives the specifications of the Weidmüller LSF-SMD 3.50/90 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LSF-SMD 7.50/180 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 12 poles and a 7.5mm pitch. The LSF-SMD 7.50/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .
The below table gives the specifications of the Weidmüller LSF-SMD 7.50/180 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LSF-SMD 7.50/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 90°, and a choice from 2 up to 6 poles and a 7.5mm pitch. The LSF-SMD 3.50/90 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .
The below table gives the specifications of the Weidmüller LSF-SMD 7.50/90 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LSF-SMT 3.50/180 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 24 poles and a 3.5mm pitch. The LSF-SMT 3.50/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .
The below table gives the specifications of the Weidmüller LSF-SMT 3.50/180 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LSF-SMT 3.50/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 90°, and a choice from 2 up to 24 poles and a 3.5mm pitch. The LSF-SMT 3.50/90 series from Weidmüller have a fully automatic assembly using reflow soldering (SMT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

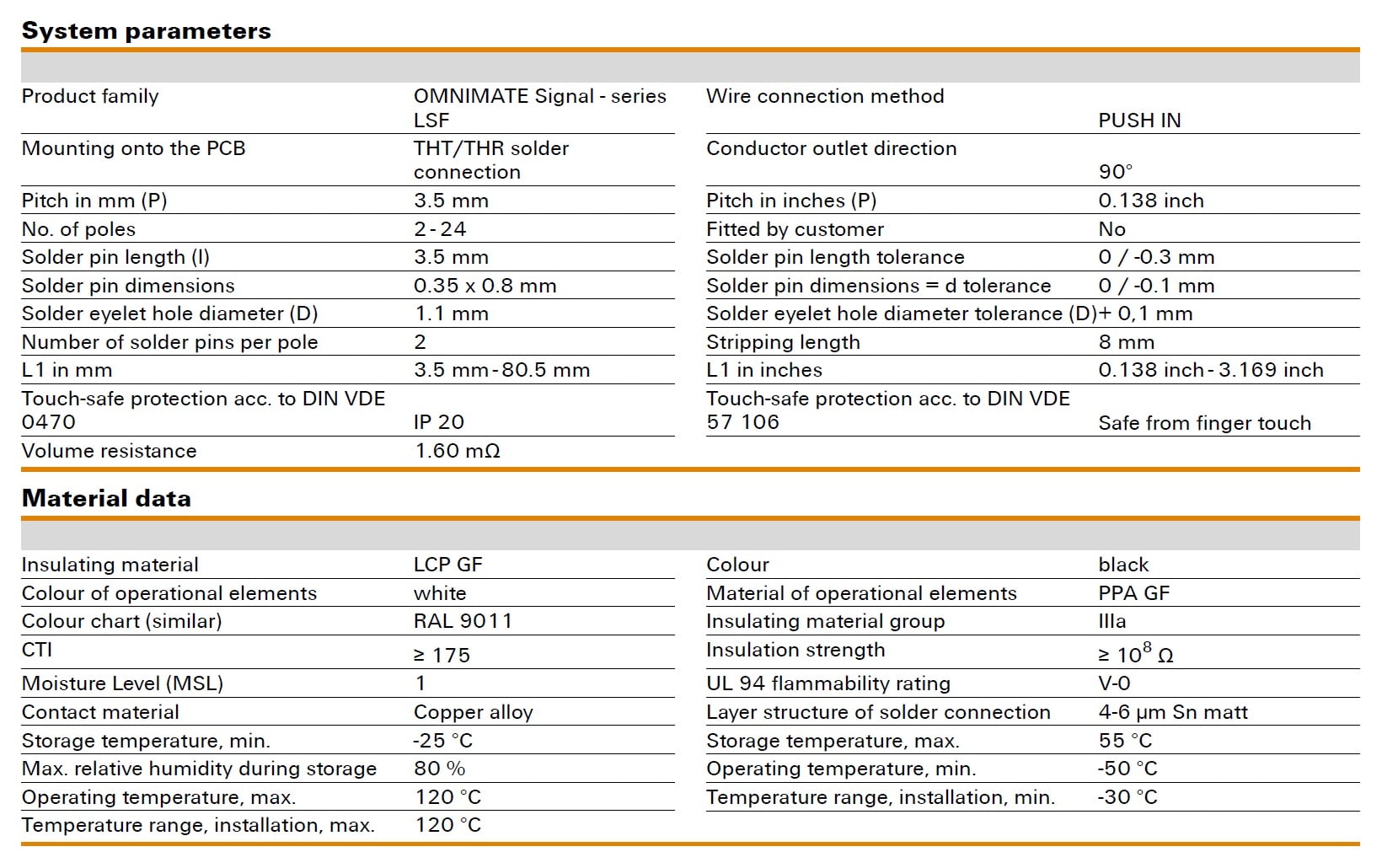

The below table gives the specifications of the Weidmüller LSF-SMT 3.50/90 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LSF-SMT 5.00/180 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 8 poles and a 5mm pitch. The LSF-SMT 5.00/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

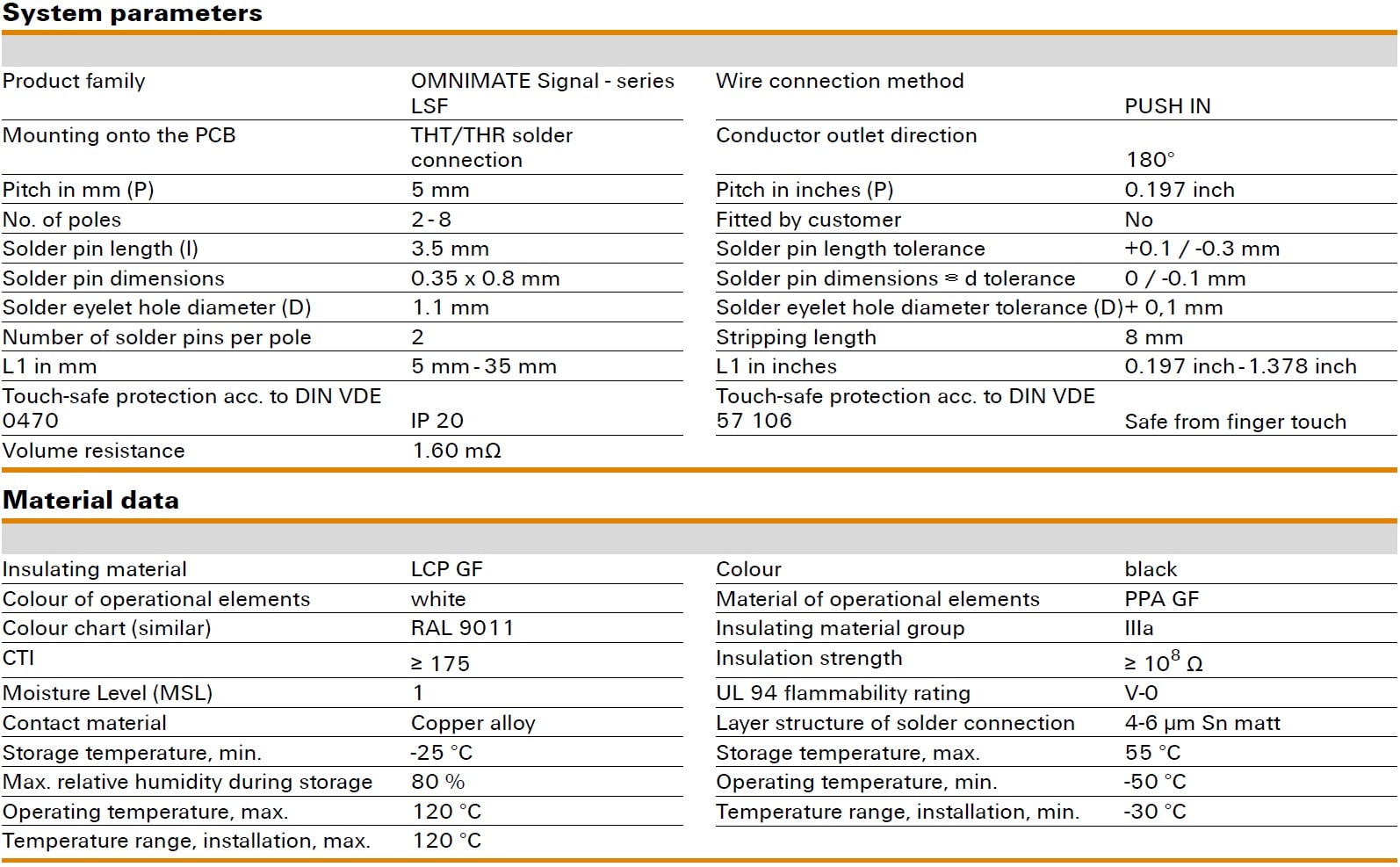

The below table gives the specifications of the Weidmüller LSF-SMT 5.00/180 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LSF-SMT 5.00/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 90°, and a choice from 2 up to 8 poles and a 5mm pitch. The LSF-SMT 5.00/90 series from Weidmüller have a fully automatic assembly using reflow soldering (SMT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .
The below table gives the specifications of the Weidmüller LSF-SMT 5.00/90 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LSF-SMT 5.08/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 90°, and a choice from 2 up to 8 poles and a 5.08mm pitch. The LSF-SMT 5.08/90 series from Weidmüller have a fully automatic assembly using reflow soldering (SMT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

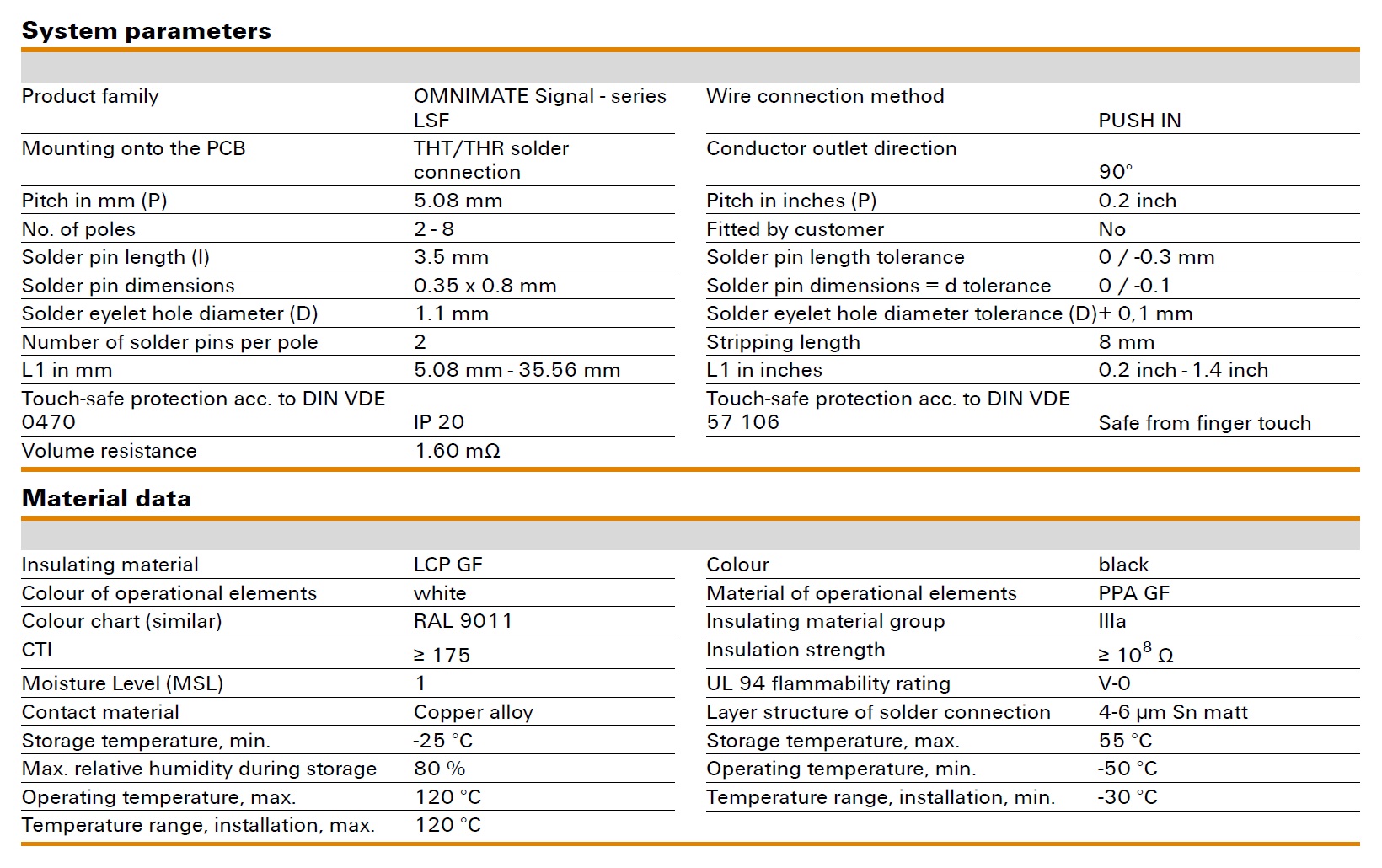

The below table gives the specifications of the Weidmüller LSF-SMT 5.08/90 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LSF-SMT 7.50/180 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 8 poles and a 7.5mm pitch. The LSF-SMT 7.50/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .
The below table gives the specifications of the Weidmüller LSF-SMT 7.50/180 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LSF-SMT 7.50/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 90°, and a choice from 2 up to 8 poles and a 7.5mm pitch. The LSF-SMT 7.50/90 series from Weidmüller have a fully automatic assembly using reflow soldering (SMT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .
The below table gives the specifications of the Weidmüller LSF-SMT 7.50/90 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
