High Performance, High Voltage and High Ohmic Thick Film Resistors |
|
For their official website, please click here |
The CN custom through-hole resistor network series from Ohmcraft® provides a fully customisable solution for your resistor network needs. The CN series offers ohmic values up to 2GΩ, very low noise, ultra-high stability including tight ratio tolerances to ±0.1%, low absolute TCR to ±10 ppm/°C with a tracking TCR down to ±5 ppm/°C and a low VCR to 0.05 ppm/V. By utilising their patented Micropen® precision printing technology, FineFilm, Ohmcraft are able to provide an entirely new level of performance and stability in custom leaded resistor networks.
Due to the endless possibilities with the Ohmcraft CN custom resistor network series, each requirement will be individually reviewed and a part number allocated upon approval. Please include the following information for any requirement:
£0.00 Ex Tax: £0.00
The HC0202 high ohmic bondable chip resistor series from Ohmcraft® offers a resistance range from 1kΩ up to 500MΩ all in very small 0202 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide an entirely new level of performance and stability in thick-film surface-mount resistors. HC0202 resistors offer very low noise, ultra-high stability with tolerances down to ±0.5%, TCR as low as ±25 ppm/°C and VCR down to 1 ppm/V.
Ohmcraft's HC0202 high ohmic surface-mount resistors are available with wire-bondable Gold (Au) terminations.
Standard case sizes for the HC series are 0202, 0303, 0403, 0404, 0502 and 0505, with custom case sizes available.
For custom configurations or requirements, please contact us.

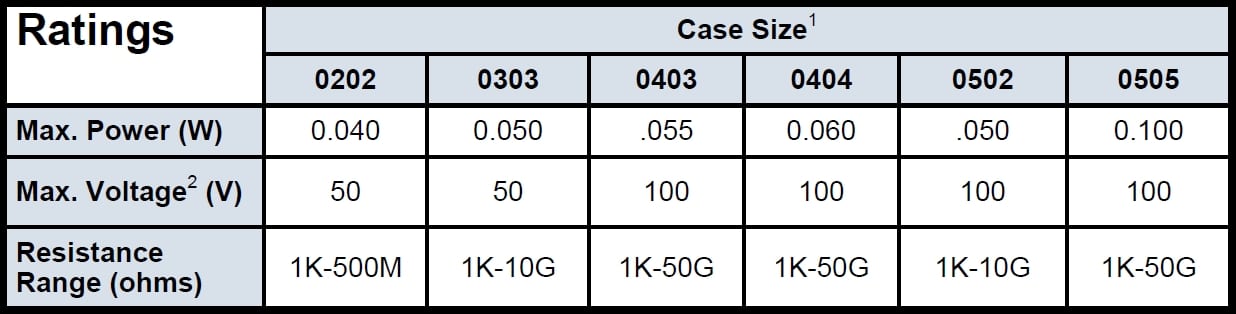

The below table gives the available specifications for the HC series including the HC0202:
1Other custom case sizes are available.
2The continuous maximum voltage applied cannot exceed the maximum power rating.
£0.00 Ex Tax: £0.00
The HC0303 high ohmic bondable chip resistor series from Ohmcraft® offers a resistance range from 1kΩ up to 10GΩ all in very small 0303 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide an entirely new level of performance and stability in thick-film surface-mount resistors. HC0303 resistors offer very low noise, ultra-high stability with tolerances down to ±0.5%, TCR as low as ±25 ppm/°C and VCR down to 1 ppm/V.
Ohmcraft's HC0303 high ohmic surface-mount resistors are available with wire-bondable Gold (Au) terminations.
Standard case sizes for the HC series are 0202, 0303, 0403, 0404, 0502 and 0505, with custom case sizes available.
For custom configurations or requirements, please contact us.
The below table gives the available specifications for the HC series including the HC0303:
1Other custom case sizes are available.
2The continuous maximum voltage applied cannot exceed the maximum power rating.
£0.00 Ex Tax: £0.00
The HC0403 high ohmic bondable chip resistor series from Ohmcraft® offers a resistance range from 1kΩ up to 50GΩ all in very small 0403 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide an entirely new level of performance and stability in thick-film surface-mount resistors. HC0403 resistors offer very low noise, ultra-high stability with tolerances down to ±0.5%, TCR as low as ±25 ppm/°C and VCR down to 1 ppm/V.
Ohmcraft's HC0403 high ohmic surface-mount resistors are available with wire-bondable Gold (Au) terminations.
Standard case sizes for the HC series are 0202, 0303, 0403, 0404, 0502 and 0505, with custom case sizes available.
For custom configurations or requirements, please contact us.
The below table gives the available specifications for the HC series including the HC0403:
1Other custom case sizes are available.
2The continuous maximum voltage applied cannot exceed the maximum power rating.
£0.00 Ex Tax: £0.00
The HC0404 high ohmic bondable chip resistor series from Ohmcraft® offers a resistance range from 1kΩ up to 50GΩ all in very small 0404 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide an entirely new level of performance and stability in thick-film surface-mount resistors. HC0404 resistors offer very low noise, ultra-high stability with tolerances down to ±0.5%, TCR as low as ±25 ppm/°C and VCR down to 1 ppm/V.
Ohmcraft's HC0404 high ohmic surface-mount resistors are available with wire-bondable Gold (Au) terminations.
Standard case sizes for the HC series are 0202, 0303, 0403, 0404, 0502 and 0505, with custom case sizes available.
For custom configurations or requirements, please contact us.
The below table gives the available specifications for the HC series including the HC0404:
1Other custom case sizes are available.
2The continuous maximum voltage applied cannot exceed the maximum power rating.
£0.00 Ex Tax: £0.00
The HC0502 high ohmic bondable chip resistor series from Ohmcraft® offers a resistance range from 1kΩ up to 10GΩ all in very small 0502 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide an entirely new level of performance and stability in thick-film surface-mount resistors. HC0502 resistors offer very low noise, ultra-high stability with tolerances down to ±0.5%, TCR as low as ±25 ppm/°C and VCR down to 1 ppm/V.
Ohmcraft's HC0502 high ohmic surface-mount resistors are available with wire-bondable Gold (Au) terminations.
Standard case sizes for the HC series are 0202, 0303, 0403, 0404, 0502 and 0505, with custom case sizes available.
For custom configurations or requirements, please contact us.
The below table gives the available specifications for the HC series including the HC0502:
1Other custom case sizes are available.
2The continuous maximum voltage applied cannot exceed the maximum power rating.
£0.00 Ex Tax: £0.00
The HC0505 high ohmic bondable chip resistor series from Ohmcraft® offers a resistance range from 1kΩ up to 50GΩ all in very small 0505 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide an entirely new level of performance and stability in thick-film surface-mount resistors. HC0505 resistors offer very low noise, ultra-high stability with tolerances down to ±0.5%, TCR as low as ±25 ppm/°C and VCR down to 1 ppm/V.
Ohmcraft's HC0505 high ohmic surface-mount resistors are available with wire-bondable Gold (Au) terminations.
Standard case sizes for the HC series are 0202, 0303, 0403, 0404, 0502 and 0505, with custom case sizes available.
For custom configurations or requirements, please contact us.
The below table gives the available specifications for the HC series including the HC0505:
1Other custom case sizes are available.
2The continuous maximum voltage applied cannot exceed the maximum power rating.
£0.00 Ex Tax: £0.00
The HVA05 precision high voltage axial resistor series from Ohmcraft® offers a voltage rating of 5kV, power rating of 1W and a resistance range from 500kΩ up to 500MΩ all in a cylindrical axial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, non-inductive thick-film resistor. HVA resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (500kΩ to 100MΩ), TCR as low as ±50 ppm/°C and VCR down to 0.1 ppm/V.
Ohmcraft's HVA05 high voltage axial leaded through-hole resistor series offers a body length of 14.27mm (±0.76mm) and a diameter of 4.57mm (±0.38mm). The lead length is 38.1mm (±3.18mm) with a diameter of 0.64mm (±0.05mm).
The HVA series is produced using an Alumina substrate, coated in high-temperature silicone conformal and fitted with stainless steel end caps. The leads are solderable Gold and Nickel plated copper (RoHS compliant).
For custom configurations or requirements, please contact us.
The below table gives the specifications available for the complete HVA series including the HVA05:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVA10 precision high voltage axial resistor series from Ohmcraft® offers a voltage rating of 15kV, power rating of 2W and a resistance range from 500kΩ up to 2GΩ all in a cylindrical axial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, non-inductive thick-film resistor. HVA resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (500kΩ to 100MΩ), TCR as low as ±50 ppm/°C and VCR down to 0.1 ppm/V.
Ohmcraft's HVA10 high voltage axial leaded through-hole resistor series offers a body length of 38.1mm (±0.76mm) and a diameter of 4.57mm (±0.38mm). The lead length is 38.1mm (±3.18mm) with a diameter of 0.64mm (±0.05mm).
The HVA series is produced using an Alumina substrate, coated in high-temperature silicone conformal and fitted with stainless steel end caps. The leads are solderable Gold and Nickel plated copper (RoHS compliant).
For custom configurations or requirements, please contact us.
The below table gives the specifications available for the complete HVA series including the HVA10:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVA18 precision high voltage axial resistor series from Ohmcraft® offers a voltage rating of 15kV, power rating of 3.6W and a resistance range from 500kΩ up to 2GΩ all in a cylindrical axial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, non-inductive thick-film resistor. HVA resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (500kΩ to 100MΩ), TCR as low as ±50 ppm/°C and VCR down to 0.1 ppm/V.
Ohmcraft's HVA18 high voltage axial leaded through-hole resistor series offers a body length of 38.1mm (±0.76mm) and a diameter of 7.87mm (±0.38mm). The lead length is 38.1mm (±3.18mm) with a diameter of 1.02mm (±0.05mm).
The HVA series is produced using an Alumina substrate, coated in high-temperature silicone conformal and fitted with stainless steel end caps. The leads are solderable Gold and Nickel plated copper (RoHS compliant).
For custom configurations or requirements, please contact us.
The below table gives the specifications available for the complete HVA series including the HVA18:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVA25 precision high voltage axial resistor series from Ohmcraft® offers a voltage rating of 20kV, power rating of 5W and a resistance range from 500kΩ up to 4GΩ all in a cylindrical axial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, non-inductive thick-film resistor. HVA resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (500kΩ to 100MΩ), TCR as low as ±50 ppm/°C and VCR down to 0.1 ppm/V.
Ohmcraft's HVA25 high voltage axial leaded through-hole resistor series offers a body length of 53.98mm (±0.76mm) and a diameter of 7.87mm (±0.38mm). The lead length is 38.1mm (±3.18mm) with a diameter of 1.02mm (±0.05mm).
The HVA series is produced using an Alumina substrate, coated in high-temperature silicone conformal and fitted with stainless steel end caps. The leads are solderable Gold and Nickel plated copper (RoHS compliant).
For custom configurations or requirements, please contact us.
The below table gives the specifications available for the complete HVA series including the HVA25:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVA38 precision high voltage axial resistor series from Ohmcraft® offers a voltage rating of 30kV, power rating of 7.5W and a resistance range from 500kΩ up to 6GΩ all in a cylindrical axial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, non-inductive thick-film resistor. HVA resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (500kΩ to 100MΩ), TCR as low as ±50 ppm/°C and VCR down to 0.1 ppm/V.
Ohmcraft's HVA38 high voltage axial leaded through-hole resistor series offers a body length of 79.38mm (±0.76mm) and a diameter of 7.87mm (±0.38mm). The lead length is 38.1mm (±3.18mm) with a diameter of 1.02mm (±0.05mm).
The HVA series is produced using an Alumina substrate, coated in high-temperature silicone conformal and fitted with stainless steel end caps. The leads are solderable Gold and Nickel plated copper (RoHS compliant).
For custom configurations or requirements, please contact us.
The below table gives the specifications available for the complete HVA series including the HVA38:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVA50 precision high voltage axial resistor series from Ohmcraft® offers a voltage rating of 50kV, power rating of 10W and a resistance range from 500kΩ up to 10GΩ all in a cylindrical axial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, non-inductive thick-film resistor. HVA resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (500kΩ to 100MΩ), TCR as low as ±50 ppm/°C and VCR down to 0.1 ppm/V.
Ohmcraft's HVA50 high voltage axial leaded through-hole resistor series offers a body length of 127.38mm (±0.76mm) and a diameter of 7.87mm (±0.38mm). The lead length is 38.1mm (±3.18mm) with a diameter of 1.02mm (±0.05mm).
The HVA series is produced using an Alumina substrate, coated in high-temperature silicone conformal and fitted with stainless steel end caps. The leads are solderable Gold and Nickel plated copper (RoHS compliant).
For custom configurations or requirements, please contact us.
The below table gives the specifications available for the complete HVA series including the HVA50:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVC0402 high voltage chip resistor series from Ohmcraft® offers a voltage rating of 150V, power rating of 0.04W and a resistance range from 10kΩ up to 1GΩ all in a 0402 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. The HVC0402 resistors series offers very low noise, ultra-high stability with tolerances down to ±1% (between 10kΩ and 500MΩ), TCR as low as ±50 ppm/°C (between 10kΩ and 100MΩ) and VCR down to 1 ppm/V.
Ohmcraft's HVC0402 ultra-high voltage surface-mount resistors are available with various terminations:
Please see the HVC series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.
The below table gives the available specifications for the HVC0402 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVC0603 high voltage chip resistor series from Ohmcraft® offers a voltage rating of 400V, power rating of 0.06W and a resistance range from 10kΩ up to 50GΩ all in a 0603 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. The HVC0603 resistors series offers very low noise, ultra-high stability with tolerances down to ±0.5% (between 10kΩ and 10MΩ), TCR as low as ±50 ppm/°C (between 10kΩ and 500MΩ) and VCR down to 1 ppm/V.
Ohmcraft's HVC0603 ultra-high voltage surface-mount resistors are available with various terminations:
Please see the HVC series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.
The below table gives the available specifications for the HVC0603 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
