Weidmüller LM 3.50/90 Series

Weidmüller LM 3.50/90 Series

The LM 3.50/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a clamping yoke screw connection. Designed with a conductor outlet direction of 90° and a choice from 2 up to 12 poles and a 3.5mm pitch. The LM 3.50/90 series from Weidmüller have a fully automatic assembly using wave soldering and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Through-hole technology with wave soldering
  • Number of poles available from 2 to 12
  • Solder pin length of 3.2mm
  • Pitch of 3.5mm
  • Conductor outlet direction of 90°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 3.5mm to 5mm depending on the number of poles required
  • Rated current for minimum number of poles 16A (IEC) and 10A (UL)
  • Orange in colour
  • Packaged in Boxes
  • Operating temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LM 3.50/90 PCB terminal series:

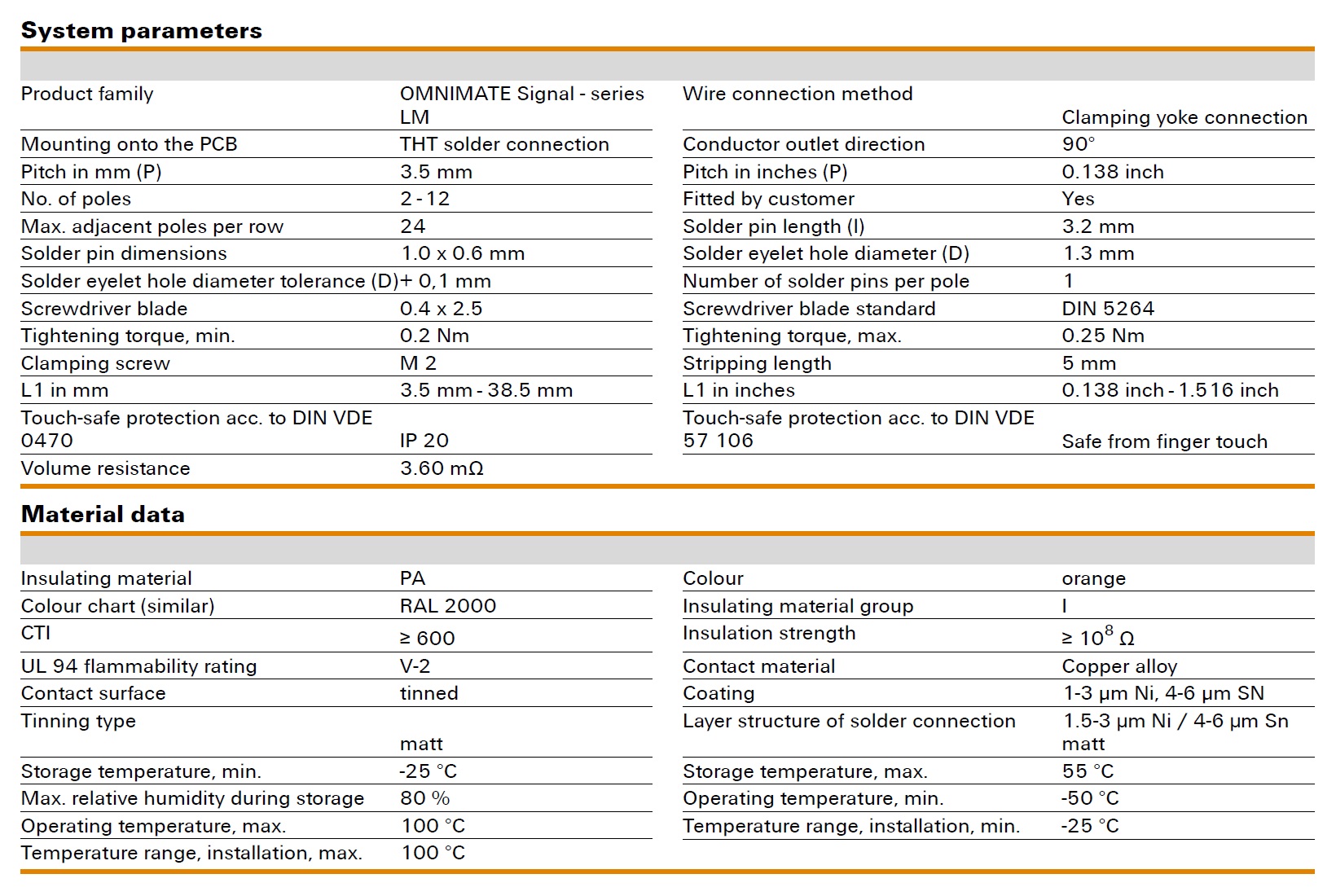

Weidmüller LM 3.50/90_3.2SN OR BX Specifications Please see the relevant datasheet in the technical library for the exact specification
Additional Features
  • PCB terminal connector
  • Rated current for minimum number of poles 16A (IEC) and 10A (UL)
  • Dimensions of L1 3.5mm to 5mm (depending on the number of poles required)
  • SMT solder connection with a solder pin length of 3.2mm
  • Wire connection cross section from AWG 28 to AWG 14
  • Operating temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
Colour Orange
Conductor Outlet Direction 90°
Connection Type Clamping yoke screw connection
Number of Poles 2 to 12
Package/Size Through-hole
Pitch 3.5mm

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
