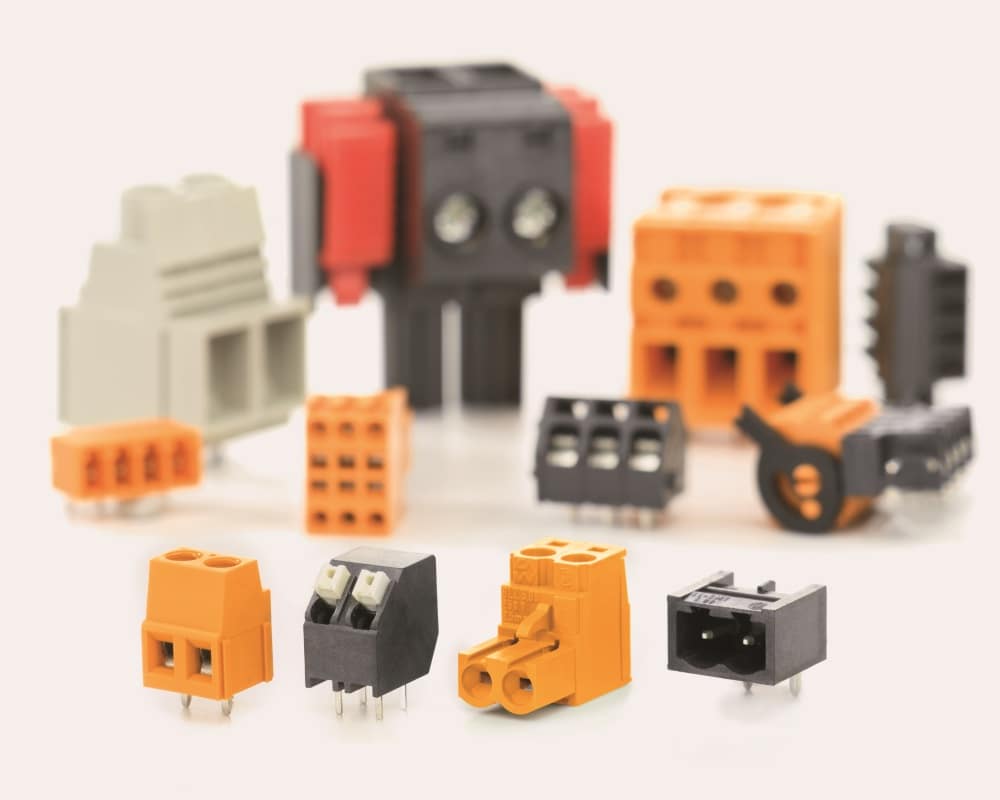

Rhopoint Components are a UK franchised design-in distributor for the Weidmüller Omnimate Signal range including PCB terminal Blocks, plug-in connectors and panel feed through terminal blocks for industrial applications with a focus on signal processing. The components are optimised for application-oriented design, efficient production and reliable application.

Weidmueller Signal
Show:
Sort By:

Weidmüller B2CF 3.50/180 Series

The B2CF 3.50/180 female 2 row plug PCB plug in connector series from Weidmüller's Omnimate signal range has been designed with a conductor outlet direction of 180°. They have a 3.5mm pitch and a choice from 4 up to 46 poles. The B2CF 3.50/180 series from Weidmüller have a push in spring connection with integrated push buttons for opening the terminal point. These connectors have an operating temperature range of −50°C up to +120°C .

  • 2 Row female plug in connector
  • Push in spring connection with integrated push buttons for opening the terminal point
  • Number of poles available from 4 to 46
  • Clamping range from 0.14 mm² to 1.5mm²
  • Pitch of 3.5mm
  • Conductor outlet direction of 180°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 3.5mm to 76.5mm depending on the number of poles required
  • Rated current for minimum number of poles 13.4A (IEC) and 9.5A (UL)
  • Orange in colour (additional colours available on request)
  • Packaged in box
  • Operating temperature range −50°C up to +120°C

The below table gives the specifications of the Weidmüller B2CF 3.50/180 PCB connector series:

Weidmüller B2CF 3.50/180 Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller BL 3.50/180 Series

The BL 3.50/180 female PCB plug in connector series from Weidmüller's Omnimate signal range has been designed with a conductor outlet direction of 180°. They have a 3.5mm pitch and a choice from 2 up to 24 poles. The BL 3.50/180 series from Weidmüller have a clamping yoke screw connection. These connectors have an operating temperature range of −50°C up to +100°C .

  • Female plug in connector
  • Clamping yoke screw connection
  • Number of poles available from 2 to 24
  • Clamping range from 0.08 mm² to 1.5mm²
  • Wire connection cross section from AWG 28 to AWG 14
  • Pitch of 3.5mm
  • Conductor outlet direction of 180°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 3.5mm to 80.5mm depending on the number of poles required
  • Rated current for minimum number of poles 17A (IEC) and 10A (UL)
  • Orange in colour (additional colours available on request)
  • Packaged in box
  • Operating temperature range −50°C up to +100°C

The below table gives the specifications of the Weidmüller BL 3.50/180 PCB connector series:

Weidmüller BL 3.50/180 Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller BLF 2.50/180 Series

The BLF 2.50/180 female plug PCB plug in connector series from Weidmüller's Omnimate signal range has been designed with a conductor outlet direction of 180°. They have a 2.5mm pitch and a choice from 2 up to 12 poles. The BLF 2.50/180 series from Weidmüller have a push in spring connection with integrated push buttons for opening the terminal point. These connectors have an operating temperature range of −40°C up to +105°C .

  • Female plug in connector
  • Push in spring connection with integrated push buttons for opening the terminal point
  • Number of poles available from 2 to 12
  • Wire connection cross section from AWG28 (0.08mm²) to AWG 20 (0.5mm²)
  • Pitch of 2.5mm
  • Conductor outlet direction of 180°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 2.5mm to 27.5mm depending on the number of poles required
  • Rated current for minimum number of poles 6A (IEC) and 5A (UL)
  • Black in colour (additional colours available on request)
  • Packaged in box
  • Operating temperature range −40°C up to +120°C

The below table gives the specifications of the Weidmüller BLF 2.50/180 PCB connector series:

Weidmüller BLF 2.50/180 Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller BLF 3.50/180 Series

The BLF 3.50/180 female PCB plug in connector series from Weidmüller's Omnimate signal range has been designed with a conductor outlet direction of 180°. They have a 3.5mm pitch and a choice from 2 up to 24 poles. The BLF 3.50/180 series from Weidmüller have a push in spring connection. These connectors have an operating temperature range of −50°C up to +120°C .

  • Female plug in connector
  • Push in spring connection
  • Number of poles available from 2 to 24
  • Clamping range from 0.14 mm² to 1.5mm²
  • Wire connection cross section from AWG 26 to AWG 16
  • Pitch of 3.5mm
  • Conductor outlet direction of 180°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 3.5mm to 80.5mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 10A (UL)
  • Orange in colour (additional colours available on request)
  • Packaged in box
  • Operating temperature range −50°C up to +120°C

The below table gives the specifications of the Weidmüller BLF 3.50/180 PCB connector series:

Weidmüller BLF 3.50/180 Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller LM 3.50/90 Series

The LM 3.50/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a clamping yoke screw connection. Designed with a conductor outlet direction of 90° and a choice from 2 up to 12 poles and a 3.5mm pitch. The LM 3.50/90 series from Weidmüller have a fully automatic assembly using wave soldering and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Through-hole technology with wave soldering
  • Number of poles available from 2 to 12
  • Solder pin length of 3.2mm
  • Pitch of 3.5mm
  • Conductor outlet direction of 90°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 3.5mm to 5mm depending on the number of poles required
  • Rated current for minimum number of poles 16A (IEC) and 10A (UL)
  • Orange in colour
  • Packaged in Boxes
  • Operating temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LM 3.50/90 PCB terminal series:

Weidmüller LM 3.50/90_3.2SN OR BX Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller LM 5.08/90 Series

The LM 5.08/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a clamping yoke screw connection. Designed with a conductor outlet direction of 90° and a choice from 2 up to 24 poles and a 5.08mm pitch. The LM 5.08/90 series from Weidmüller have a fully automatic assembly using wave soldering and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Through-hole technology with wave soldering
  • Number of poles available from 2 to 24
  • Solder pin length of 3.5mm
  • Pitch of 5.08mm
  • Conductor outlet direction of 90°
  • Wire connection cross section from AWG 24 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 5.08mm to 119.84mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 15A (UL)
  • Orange in colour
  • Packaged in Boxes
  • Operating temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LM 5.08/90 PCB terminal series:

Weidmüller LM 5.08/90_3.5SN OR BX Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller LSF-SMD 3.50/180 Series

The LSF-SMD 3.50/180 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 12 poles and a 3.5mm pitch. The LSF-SMD 3.50/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Mounting onto PCB with reflow soldering
  • Number of poles available from 2 to 12
  • Pitch of 3.5mm
  • Conductor outlet direction of 180°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 3.5mm to 38.5mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Packaged in tape on reel
  • Operating temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LSF-SMD 3.50/180 PCB terminal series:

Weidmüller LSF-SMD 3.50/180 Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller LSF-SMD 3.50/90 Series

The LSF-SMD 3.50/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 90°, and a choice from 2 up to 12 poles and a 3.5mm pitch. The LSF-SMD 3.50/90 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Mounting onto PCB with reflow soldering
  • Number of poles available from 2 to 12
  • Pitch of 3.5mm
  • Conductor outlet direction of 90°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 3.5mm to 38.5mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Packaged in tape on reel
  • Operating temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LSF-SMD 3.50/90 PCB terminal series:

Weidmüller LSF-SMD 3.50/90 Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller LSF-SMD 5.00/180 Series

The LSF-SMD 5.00/180 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 12 poles and a 5mm pitch. The LSF-SMD 5.00/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Mounting onto PCB with reflow soldering
  • Number of poles available from 2 to 8
  • Pitch of 5mm
  • Conductor outlet direction of 180°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 5mm to 35mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Packaged in tape on reel
  • Operating temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LSF-SMD 5.00/180 PCB terminal series:

Weidmüller LSF-SMD 5.00/180 Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller LSF-SMD 5.00/90 Series

The LSF-SMD 5.00/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 90°, and a choice from 2 up to 8 poles and a 5mm pitch. The LSF-SMD 5.00/90 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Mounting onto PCB with reflow soldering
  • Number of poles available from 2 to 8
  • Pitch of 5mm
  • Conductor outlet direction of 90°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 5mm to 35mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Packaged in tape on reel
  • Operating temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LSF-SMD 3.50/90 PCB terminal series:

Weidmüller LSF-SMD 5.00/90 Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller LSF-SMD 7.50/180 Series

The LSF-SMD 7.50/180 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 12 poles and a 7.5mm pitch. The LSF-SMD 7.50/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Mounting onto PCB with reflow soldering
  • Number of poles available from 2 to 6
  • Pitch of 7.5mm
  • Conductor outlet direction of 180°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 7.5mm to 37.5mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Packaged in tape on reel
  • Operating temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LSF-SMD 7.50/180 PCB terminal series:

Weidmüller LSF-SMD 7.50/180 Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller LSF-SMD 7.50/90 Series

The LSF-SMD 7.50/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 90°, and a choice from 2 up to 6 poles and a 7.5mm pitch. The LSF-SMD 3.50/90 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Mounting onto PCB with reflow soldering
  • Number of poles available from 2 to 6
  • Pitch of 7.5mm
  • Conductor outlet direction of 90°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 7.5mm to 37.5mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Packaged in tape on reel
  • Operating temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LSF-SMD 7.50/90 PCB terminal series:

Weidmüller LSF-SMD 7.50/90 Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller LSF-SMT 3.50/180 Series

The LSF-SMT 3.50/180 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 24 poles and a 3.5mm pitch. The LSF-SMT 3.50/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Through-hole technology with reflow soldering
  • Number of poles available from 2 to 24
  • Solder pin length of 3.5mm
  • Pitch of 3.5mm
  • Conductor outlet direction of 180°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 3.5mm to 80.5mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Packaged in tubes
  • Operating temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LSF-SMT 3.50/180 PCB terminal series:

Weidmüller LSF-SMT 3.50/180 Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller LSF-SMT 3.50/90 Series

The LSF-SMT 3.50/90 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 90°, and a choice from 2 up to 24 poles and a 3.5mm pitch. The LSF-SMT 3.50/90 series from Weidmüller have a fully automatic assembly using reflow soldering (SMT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Through-hole technology with reflow soldering
  • Number of poles available from 2 to 24
  • Solder pin length of 3.5mm
  • Pitch of 3.5mm
  • Conductor outlet direction of 90°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 3.5mm to 80.5mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Packaged in tubes
  • Operating temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LSF-SMT 3.50/90 PCB terminal series:

Weidmüller LSF-SMT 3.50/90 Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00

Weidmüller LSF-SMT 5.00/180 Series

The LSF-SMT 5.00/180 PCB terminal series from Weidmüller's Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 8 poles and a 5mm pitch. The LSF-SMT 5.00/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Through-hole technology with reflow soldering
  • Number of poles available from 2 to 8
  • Solder pin length of 3.5mm
  • Pitch of 5mm
  • Conductor outlet direction of 180°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 5mm to 35mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Packaged in tubes
  • Operating temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LSF-SMT 5.00/180 PCB terminal series:

Weidmüller LSF-SMT 5.00/180 Specifications Please see the relevant datasheet in the technical library for the exact specification

£0.00 Ex Tax: £0.00
