Low Ohmic, Precision and Power Resistors |
|
For their official website, please click here |
The A-H1 through-hole resistor series from Isabellenhütte offers 4-terminal connection technology for current sensing applications. Designed for easy heat sink mounting, the Kelvin connections on this resistor allow high precision measurements even with a low resistance values range from 0.001Ω to 100Ω available. The A-H1 series from Isabellenhütte has low inductance and has high pulse power handling capabilities.
Typical applications for the A-H1 series include:
The below table gives an overview of the specifications for the Isabellenhütte A-H1 series:
* Please contact us for available parts or see the ordering information tab
£0.00 Ex Tax: £0.00
The A-H2 through-hole resistor series from Isabellenhütte offers 4-terminal connection technology for current sensing applications. Designed for easy heat sink mounting, the Kelvin connections on this resistor allow high precision measurements even with a low resistance values range from 0.001Ω to 100Ω available. The A-H2 series from Isabellenhütte has low inductance and has high pulse power handling capabilities.
Typical applications for the A-H2 series include:
The below table gives an overview of the specifications for the Isabellenhütte A-H2 series:
* Please contact us for available parts or see the ordering information tab
£0.00 Ex Tax: £0.00
The AZ-H1 through-hole resistor series from Isabellenhütte offers 4-terminal connection technology for current sensing applications with very low TCR. Designed for easy heat sink mounting, the Kelvin connections on this resistor allow high precision measurements even with a low resistance range of 0.002Ω to 1Ω. The AZ-H1 series from Isabellenhütte has low inductance and has high pulse power handling capabilities.
Typical applications for the AZ-H1 series include:
The below table gives an overview of the specifications for the Isabellenhütte AZ-H1 series:
* Please contact us for available parts or see the ordering information tab
£0.00 Ex Tax: £0.00
The AZ-H2 through-hole resistor series from Isabellenhütte offers 4-terminal connection technology for current sensing applications with very low TCR. Designed for easy heat sink mounting, the Kelvin connections on this resistor allow high precision measurements even with a low resistance range of 0.002Ω to 1Ω. The AZ-H2 series from Isabellenhütte has low inductance and has high pulse power handling capabilities.
Typical applications for the AZ-H2 series include:
The below table gives an overview of the specifications for the Isabellenhütte AZ-H2 series:
* Please contact us for available parts or see the ordering information tab
£0.00 Ex Tax: £0.00
The BAC precision resistor series from Isabellenhütte includes a PCB with connector for voltage sensing, designed for battery management systems or welding equipment with a low resistance value of 50µΩ or 100µΩ. The BAC series from Isabellenhütte is available with untinned or Ni-plated terminals, continuous load up to 550A (50µΩ) within a chip size of 8420.
Typical applications for the BAC series include:
The below table gives an overview of the specifications for the Isabellenhütte BAC series:
£0.00 Ex Tax: £0.00
The BAS precision resistor series from Isabellenhütte, designed for battery management systems or welding equipment with a low resistance values from 0.000035Ω to 0.0005Ω. The BAS series from Isabellenhütte is available with tinned or untinned terminals, continuous load up to 350A (100µΩ) within a chip size of 8420.
Typical applications for the BAS series include:
The below table gives an overview of the specifications for the Isabellenhütte BAS series:
£0.00 Ex Tax: £0.00
The BKW 4-terminal precision resistor series from Isabellenhütte, designed for energy meters with resistance values from 0.0003Ω to 0.0005Ω. The BKW series from Isabellenhütte has extremely good long-term stability, thus the energy meters do not require any recalibration, very high reproducibility of R-value and TCR.
Typical applications for the BKW series include:
The below table gives an overview of the specifications for the Isabellenhütte BKW series:
£0.00 Ex Tax: £0.00
The BRS surface-mount resistor series from Isabellenhütte has an excellent long term stability and is ideal for mounting on DBC and IMS substrate with a maximum solder temperature up to 350°C for 30 seconds or 250°C for 10 minutes. The BRS series from Isabellenhütte has a range of resistance values from 0.002Ω to 0.025Ω and solid metal precision materials.
Typical applications for the BRS series include:
The below tables give an overview of the specifications for the Isabellenhütte BRS series as well as the standard parts available:
Further values and tolerances available on request
£0.00 Ex Tax: £0.00
The BVB surface-mount resistor series from Isabellenhütte is made of composite material considered ideal for use on DBC or ceramic substrate. The BVB series from Isabellenhütte offers 4-terminal connection and has excellent long term stability with a range of resistance values from 0.0002 to 0.005Ω within a 2725 chip size
Typical applications for the BVB series include:
The below tables give an overview of the specifications for the Isabellenhütte BVB series as well as the standard parts:
£0.00 Ex Tax: £0.00
The BVD 2-terminal precision resistor series from Isabellenhütte are designed for energy metering and battery charging, with a resistance value of 0.0005Ω (further values available on request). The BVD series from Isabellenhütte is available with heavy cooper connectors and a continuous current load up to 75A.
Typical applications for the BVD series include:

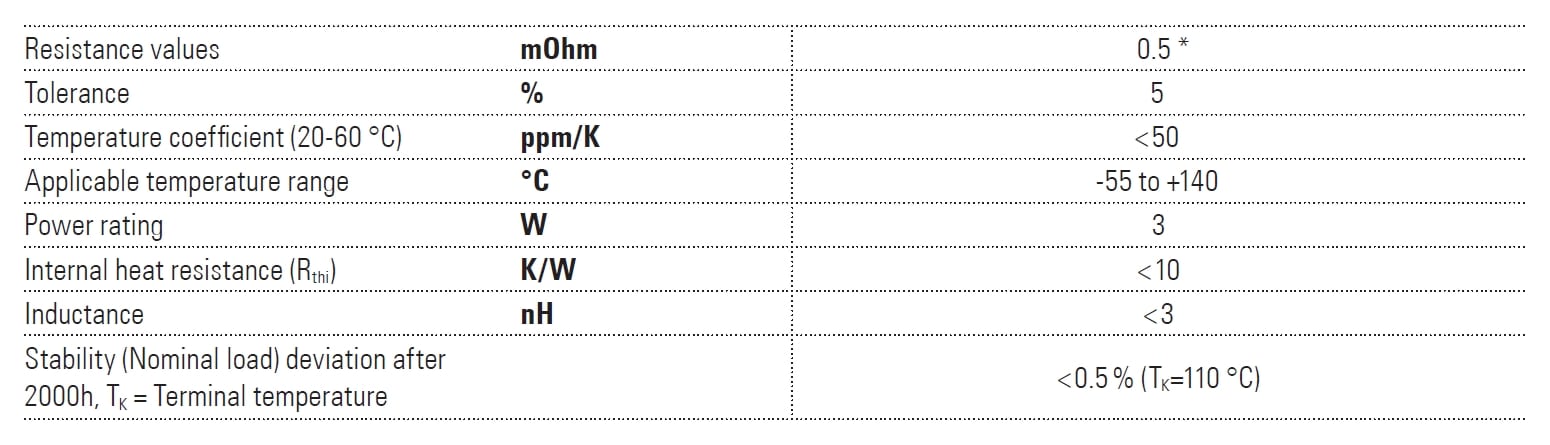

The below table gives an overview of the specifications for the Isabellenhütte BVD series:
* Further values available on request
£0.00 Ex Tax: £0.00
The BVE 2-terminal precision resistor series from Isabellenhütte is designed with large heavy copper connectors for high performance and the resistance range for these resistors is between 0.0001Ω to 0.002Ω. The BVE series from Isabellenhütte offers a continuous current load up to 220A (0.0002Ω), with a TCR value from 50 ppm/K and 5930 chip size.
Typical applications for the BVE series include:
The below tables give an overview of the specifications for the Isabellenhütte BVE series as well as the standard parts available:
£0.00 Ex Tax: £0.00
The BVF 2-terminal precision resistor series from Isabellenhütte is a small designed resistor with a chip size of 1213. The resistance values are 0.001Ω to 0.0015Ω with a TCR of <70 ppm/K and it uses NOVENTIN® material. The BVF series from Isabellenhütte offers a continuous current up to 55A (0.001Ω), with excellent long term stability and is AEC-Q200 qualified.
Typical applications for the BVF series include:
The below table gives an overview of the specifications for the Isabellenhütte BVF series:
£0.00 Ex Tax: £0.00
The BVH 4-terminal through-hole precision resistor series from Isabellenhütte has a chip size of 3820 with solid copper connections. The resistance values available are 0.0003Ω, 0.0005Ω, 0.001Ω and 0.002Ω with a TCR of <100 ppm/K (0.001Ω and 0.005Ω) and <300 ppm/K (0.0003Ω and 0.0005Ω). The BVH series from Isabellenhütte offers a continuous current up to 100A (0.0003Ω), with excellent long term stability and is AEC-Q200 qualified.
Typical applications for the BVH series include:
The below table gives an overview of the specifications for the Isabellenhütte BVH series:
£0.00 Ex Tax: £0.00
The BVM-F precision resistor series from Isabellenhütte is designed for high current applications such as kWh meters and battery chargers, with a resistance value range from 0.0001Ω to 0.0005Ω. The BVM-F series from Isabellenhütte has a three different power connections with a choice of threaded bolts, bolt down holes or solid terminals, which have a continuous current load up to 200A (0.0001Ω).
Typical applications for the BVM-F series include:
The below table gives an overview of the specifications for the Isabellenhütte BVM-F series:
£0.00 Ex Tax: £0.00
The BVN resistor series from Isabellenhütte offers 4-terminal surface-mount connection technology for current sensing applications in a space saving design. Developed for high current automotive applications with a power rating up to 5W, resistance values available are 0.0005Ω and 0.01Ω. The BVN series from Isabellenhütte offers excellent long term stability, manufactured from solid metal alloys and are ideal for mounting on DBC or ceramic substrate.
Typical applications for the BVN series include:
The below table gives an overview of the specifications for the Isabellenhütte BVN series:
£0.00 Ex Tax: £0.00
