The ADR 6-dial decade resistance box series from Alpha Electronics, with 6½ digit readings, features ultra precision resistors, low contact resistance rotary switches, low thermal EMF output terminals and the double shielded construction. There are 5 models of the ADR 6-dial decade resistance box available, each offering different resistance ranges starting from 0.1Ω minimum to 1.111210KΩ maximum up to 10Ω minimum to 11.11110MΩ maximum.
All resistors used in this Decade Resistance Box are from the ultra precision Bulk Metal® Foil resistors manufactured by Alpha Electronics, assuring high stability over time and environment change.
The rotary switches have very low contact resistance which is achieved by connecting three clip-type contacts in parallel. This method also ensures a higher mechanical reliability. Low thermal EMF output terminals use a low thermal resistance rectangular wire circuit configuration. A double shielded construction inhibits interference of environmental noise.
The ADR 6-dial resistance box series has a weight of approximately 4.5kg and dimensions of 430mm x 140mm x 99mm.
The below table gives the full specifications for each model available of the Alpha ADR 6-dial decade resistance box series:
£0.00 Ex Tax: £0.00
The ASR series from Alpha Electronics is an extremely stable standard resistor. It utilises their Ni/Cr alloy Bulk Metal® Foil technology for the resistive elements, which helps provide high stability and a low temperature coefficient. With the extreme stability of this resistor relative to temperature change, the ASR can be used in air without the need of an oil bath or critical environmental temperature control, eliminating added operation and maintenance costs.
Due to Alpha Electronics long-term experience in developing and enhancing ultra-stable Bulk Metal® Foil technology, they are able to provide products with consistency of performance under strict quality control. The ASR is designed to be used in a wide range of environments; from making precise measurements on the production floor, to providing corporate traceability as a calibration and reference standard.
The resistors are mounted within a compact and sturdy box. A cover is provided to protect the resistors and connection terminals from damage during transport and storage.
The ASR series has a weight of approximately 2.5kg and dimensions of 155mm x 97mm x 112mm.
The below table gives the full specifications for each model available of the Alpha ASR series:
* Power = Power rating.
£0.00 Ex Tax: £0.00
The ATV series from Alpha Electronics is a current / voltage (I/V) conversion adaptor used to accurately measure current using a voltage meter. Its small, lightweight construction enables it to be easily attached directly to a voltage meter for ease of operation.
Each model corresponds to a set resistance value and maximum working current.
The below table gives the full specifications for each model available of the Alpha ATV series:
£0.00 Ex Tax: £0.00
The FLA conformally coated resistor series from Alpha Electronics offers a very precise resistor with a resistance range from 10Ω up to 100kΩ all in a small through-hole package. By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce resistors with low temperature coefficients and excellent long-term stability.
The Alpha Electronics FLA precision resistor series have been designed with terminals that are easy for insertion into the PCB.
The FLB series has a pin pitch of 2.54 ±0.25mm.
Alpha's Bulk Metal® foil resistor technology means that these conformally coated, through-hole, precision resistors are ideal for precision measurements, also their low inductance makes them ideal for use at higher frequencies.
The below table gives the full specifications for each resistor model available including the Alpha FLA series:
* Symbols parenthesized are for part number composition
✝ Resistance figures are the values obtained by measuring at the point 2.5 ±1.0mm below the shoulder of the leads
£0.00 Ex Tax: £0.00
The FLB conformally coated resistor series from Alpha Electronics offers a very precise resistor with a resistance range from 10Ω up to 150kΩ all in a small through-hole package. By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce resistors with low temperature coefficients and excellent long-term stability.
The Alpha Electronics FLB precision resistor series have been designed with terminals that are easy for insertion into the PCB.
The FLB series has a pin pitch of 2.54 ±0.25mm.
Alpha's Bulk Metal® foil resistor technology means that these conformally coated, through-hole, precision resistors are ideal for precision measurements, also their low inductance makes them ideal for use at higher frequencies.
The below table gives the full specifications for each resistor model available including the Alpha FLB series:
* Symbols parenthesized are for part number composition
✝ Resistance figures are the values obtained by measuring at the point 2.5 ±1.0mm below the shoulder of the leads
£0.00 Ex Tax: £0.00
The FLC conformally coated resistor series from Alpha Electronics offers a very precise resistor with a resistance range from 10Ω up to 200kΩ all in a small through-hole package. By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce resistors with low temperature coefficients and excellent long-term stability.
The Alpha Electronics FLC precision resistor series have been designed with terminals that are easy for insertion into the PCB.
The FLC series has a pin pitch of 5.08 ±0.25mm.
Alpha's Bulk Metal® foil resistor technology means that these conformally coated, through-hole, precision resistors are ideal for precision measurements, also their low inductance makes them ideal for use at higher frequencies.
The below table gives the full specifications for each resistor model available including the Alpha FLC series:
* Symbols parenthesized are for part number composition
✝ Resistance figures are the values obtained by measuring at the point 2.5 ±1.0mm below the shoulder of the leads
£0.00 Ex Tax: £0.00
The HD resistor series from Alpha Electronics offers their ultra-precision resistor capabilities in a hermetically sealed package. With a resistance range from 1Ω up to 120kΩ all in a small through-hole package with a pin pitch of 5.08 ±0.25mm. By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce resistors with low temperature coefficients and excellent long-term stability.
The Alpha Electronics HD hermetically sealed ultra-precision resistor series have been designed with longer leads to ensure the correct clearance from the PCB is achieved when soldering. It is advised that the resistors are kept over 10mm away from the board surface by using an insulating tube.
The below table gives a summary of the specifications available for each resistor model including the Alpha HD series:
* Symbols parenthesized are for part number composition
✝ Resistance figures are the values obtained by measuring the leads at point 12.7±3.2mm away from the base for type HC and HD, but, in case of resistance below 10Ω, the value at 1.6 ±0.6mm away from the base for all types
** Temperature characteristic Z is applicable for temperature range between 0°C and +60°C
£0.00 Ex Tax: £0.00
The HG resistor series from Alpha Electronics offers their ultra-precision resistor capabilities in a hermetically sealed package. With a resistance range from 1Ω up to 10kΩ all in a four-terminal (Kelvin) connection design through-hole package. By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce resistors with low temperature coefficients and excellent long-term stability.
The Alpha Electronics HG hermetically sealed ultra-precision resistor series have been designed with longer leads to ensure the correct clearance from the PCB is achieved when soldering. It is advised that the resistors are kept over 10mm away from the board surface by using an insulating tube.
The below table gives a summary of the specifications available for each resistor model including the Alpha HG series:
* Symbols parenthesized are for part number composition
✝ Resistance figures are the values obtained by measuring the leads at point 12.7±3.2mm away from the base for type HC and HD, but, in case of resistance below 10Ω, the value at 1.6 ±0.6mm away from the base for all types
** Temperature characteristic Z is applicable for temperature range between 0°C and +60°C
£0.00 Ex Tax: £0.00
The HK resistor series from Alpha Electronics offers their ultra-precision resistor capabilities in a hermetically sealed package all with a zero-TCR. With a resistance range from 100Ω up to 100kΩ all in a small through-hole package with a pin pitch of 3.81 ±0.25mm. By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce resistors with a zero-TCR (0±15 ppm/°C between 0°C and +50°C) and excellent long-term stability.
The Alpha Electronics HK hermetically sealed ultra-precision resistor series have been designed with longer leads to ensure the correct clearance from the PCB is achieved when soldering. It is advised that the resistors are kept over 10mm away from the board surface by using an insulating tube.

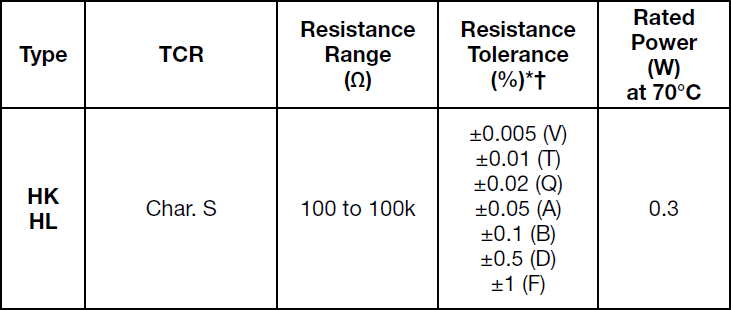

The below table gives a summary of the specifications available for each resistor model including the Alpha HK series:
* Symbols parenthesized are for part number composition
✝ Resistance figures are obtained by measuring the leads at point 12.7 ±3.2mm away from the root
£0.00 Ex Tax: £0.00
The HL resistor series from Alpha Electronics offers their ultra-precision resistor capabilities in a hermetically sealed package all with a zero-TCR. With a resistance range from 100Ω up to 100kΩ all in a small through-hole package with a pin pitch of 5.08 ±0.25mm. By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce resistors with a zero-TCR (0±15 ppm/°C between 0°C and +50°C) and excellent long-term stability.
The Alpha Electronics HL hermetically sealed ultra-precision resistor series have been designed with longer leads to ensure the correct clearance from the PCB is achieved when soldering. It is advised that the resistors are kept over 10mm away from the board surface by using an insulating tube.
The below table gives a summary of the specifications available for each resistor model including the Alpha HL series:
* Symbols parenthesized are for part number composition
✝ Resistance figures are obtained by measuring the leads at point 12.7 ±3.2mm away from the root
£0.00 Ex Tax: £0.00
The KLC ultra-precision thermosensitive resistor series from Alpha Electronics offers a highly accurate device that has a resistivity which varies linearly with temperature change in a through-hole package. By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce these resistors that are ideally designed for temperature detection, providing a small size and rapid response. The temperature characteristics for the KLC series can be freely adjusted, please see the datasheet under the Technical Library tab or the TCR against resistance values available graph below for further details.
These Alpha KLC ultra-precision thermosensitive resistors are made of material only a few µm thick and responds rapidly to temperature changes. Strict control of foil composition maintains uniform quality without fluctuation of temperature characteristics of resistance. They are produced by the same fine photo-etching technology used in other metal foil precision resistors from Alpha.
The KLC series has a pin pitch of 7.62 ±0.25mm.
Typical applications for the KLC ultra-precision thermosensitive resistor series include:

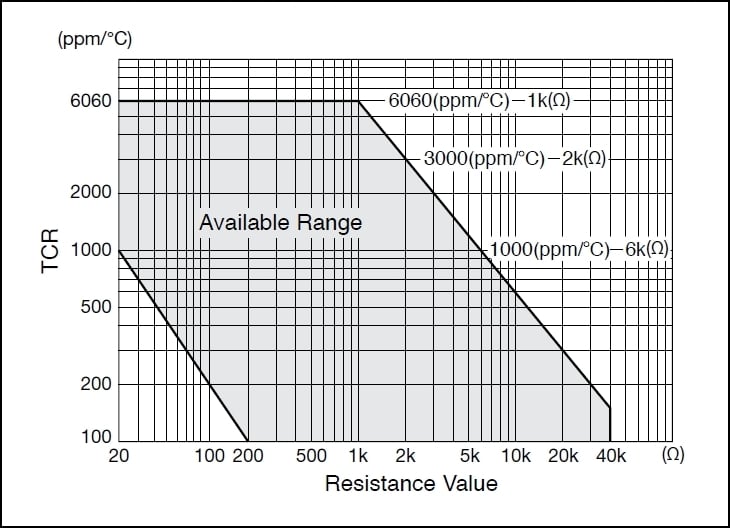

The below graph represents possible TCR values against resistance values available for the KLC thermosensitive resistor series. Please see the datasheet under the Technical Library tab for the full specifications for the KLC series.
Graph showing possible TCR options against resistance values available in the KLC series.
£0.00 Ex Tax: £0.00
The LSR high power standard resistor series from Alpha Electronics was developed to meet the requirements of high current / low resistance applications. Bulk Metal® Foil resistive elements are used to ensure the best long-term stability and lowest temperature coefficients are achieved. The enclosure is manufactured from perforated aluminium to allow effective air flow and temperature dissipation during high power operation. The LSR series is designed to be used in air without oil bath submersion or additional cooling.
LSR high power standard resistor series is suitable for a range of applications such as high precision measurement, corporate metrology calibration labs and references for precision power supplies.
The 1mΩ version has an option to change the terminal knobs for 4W (63A) power measuring capabilities. The P at the end of the model number denotes the high power option.
The LSR series has a weight of approximately 0.6kg and dimensions of 140mm x 90mm x 90mm.
The below table gives the full specifications for each model available of the Alpha LSR series:
£0.00 Ex Tax: £0.00
The MA ultra-precision transfer moulded resistor series from Alpha Electronics offers a wide resistance range from 1Ω up to 200kΩ with tight tolerances, all in a small through-hole package with a pin pitch of 3.81 ±0.25mm. By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce resistors with low temperature coefficients and excellent long-term stability.
Alpha's Bulk Metal® foil resistor technology means that these transfer moulded, through-hole, ultra-precision resistors are ideal for precision measurements, also their low inductance makes them ideal for use at higher frequencies.
These resistors are constructed using an outer coating of transfer moulded epoxy resin, making the parts strongly resistant to heat, moisture and solvents. Internally, there are secondary leads which act as a buffer so that stress on the exterior leads is not transmitted to the foil, providing stability against vibrations when the resistor is mounted on a circuit.

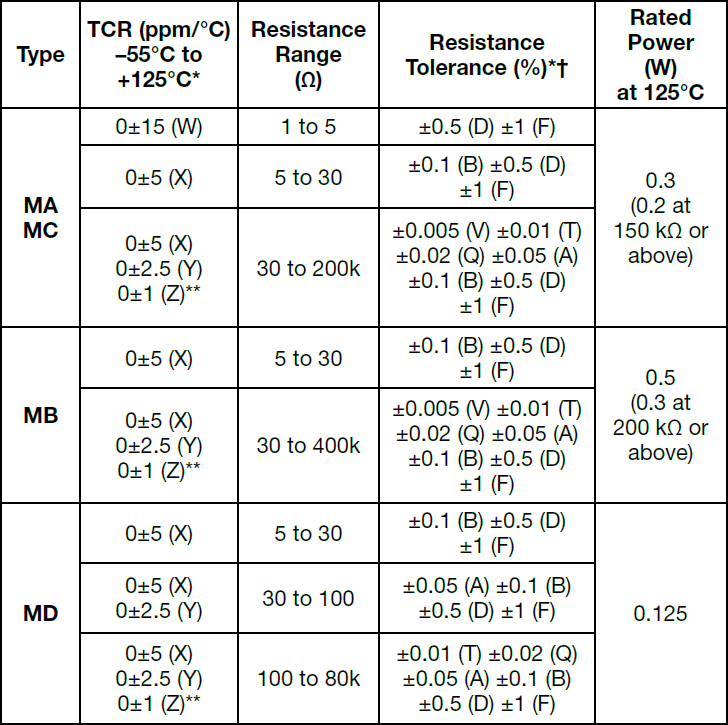

The below table gives the full specifications for each resistor model available including the Alpha MA series:
* Symbols parenthesized are for part number composition
✝ Resistance figures are the values obtained by measuring the leads at point 12.7±3.2mm away from the base for type MB, MC and MD, but, in case of resistance below 10Ω, the value at 1.6 ±0.6mm away from the base for all types
** Temperature characteristic Z is applicable for temperature range between 0°C and +60°C
£0.00 Ex Tax: £0.00
The MB ultra-precision transfer moulded resistor series from Alpha Electronics offers a wide resistance range from 5Ω up to 400kΩ with tight tolerances, all in a small through-hole package with a pin pitch of 7.5 ±0.5mm. By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce resistors with low temperature coefficients and excellent long-term stability.
Alpha's Bulk Metal® foil resistor technology means that these transfer moulded, through-hole, ultra-precision resistors are ideal for precision measurements, also their low inductance makes them ideal for use at higher frequencies.
These resistors are constructed using an outer coating of transfer moulded epoxy resin, making the parts strongly resistant to heat, moisture and solvents. Internally, there are secondary leads which act as a buffer so that stress on the exterior leads is not transmitted to the foil, providing stability against vibrations when the resistor is mounted on a circuit.
The below table gives the full specifications for each resistor model available including the Alpha MB series:
* Symbols parenthesized are for part number composition
✝ Resistance figures are the values obtained by measuring the leads at point 12.7±3.2mm away from the base for type MB, MC and MD, but, in case of resistance below 10Ω, the value at 1.6 ±0.6mm away from the base for all types
** Temperature characteristic Z is applicable for temperature range between 0°C and +60°C
£0.00 Ex Tax: £0.00
The MC ultra-precision transfer moulded resistor series from Alpha Electronics offers a wide resistance range from 1Ω up to 200kΩ with tight tolerances, all in a small through-hole package with a pin pitch of 5.08 ±0.25mm. By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce resistors with low temperature coefficients and excellent long-term stability.
Alpha's Bulk Metal® foil resistor technology means that these transfer moulded, through-hole, ultra-precision resistors are ideal for precision measurements, also their low inductance makes them ideal for use at higher frequencies.
These resistors are constructed using an outer coating of transfer moulded epoxy resin, making the parts strongly resistant to heat, moisture and solvents. Internally, there are secondary leads which act as a buffer so that stress on the exterior leads is not transmitted to the foil, providing stability against vibrations when the resistor is mounted on a circuit.
The below table gives the full specifications for each resistor model available including the Alpha MC series:
* Symbols parenthesized are for part number composition
✝ Resistance figures are the values obtained by measuring the leads at point 12.7±3.2mm away from the base for type MB, MC and MD, but, in case of resistance below 10Ω, the value at 1.6 ±0.6mm away from the base for all types
** Temperature characteristic Z is applicable for temperature range between 0°C and +60°C
