The IVT-S intelligent current and voltage measurement module is a shunt-based plug-and-play measurement system, continuously measuring current from a selection of 5 current ranges (100A, 300A, 500A, 1000A and 2500A), converting the information into a digital signal and communicating the signal via the industry standard CANbus 2.0 interface. The data is processed utilising a 16-bit AD converter at the speed of 1kHz. The modules are offered as a modular design, with the optional extras including outputs for voltage monitoring (three voltage channels are supplied, ideal for battery or relay monitoring applications) and additional CAN port to enable daisy chaining, all in a compact package of only 84x83.2x16.2mm. The IVT-S modules offer guaranteed galvanic isolation up to 1000V making it suitable for high voltage applications. The temperature sensor within the module is utilised for temperature calibration, ensuring excellent precision of ±0.5% across the whole temperature range, for greater safety, and to provide temperature reading off the shunt as requried.
The applications for the IVT-S current and voltage measurement module series include:
The below table gives the specifications available for the Isabellenhütte IVT-S module series:
£0.00 Ex Tax: £0.00
The AFL000-00E low power switch sensor from NVE integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages down to 0.9 Volts and continuous operation at currents between 20 to 55 microamps. Like all NVE magnetic sensors, the AFL sensors have extremely precise magnetic operate point of 10Oe (typ.) and release differential of between 1Oe and 6Oe.
The NVE AFL000-00E GMR low power switch sensor covers the following applications:

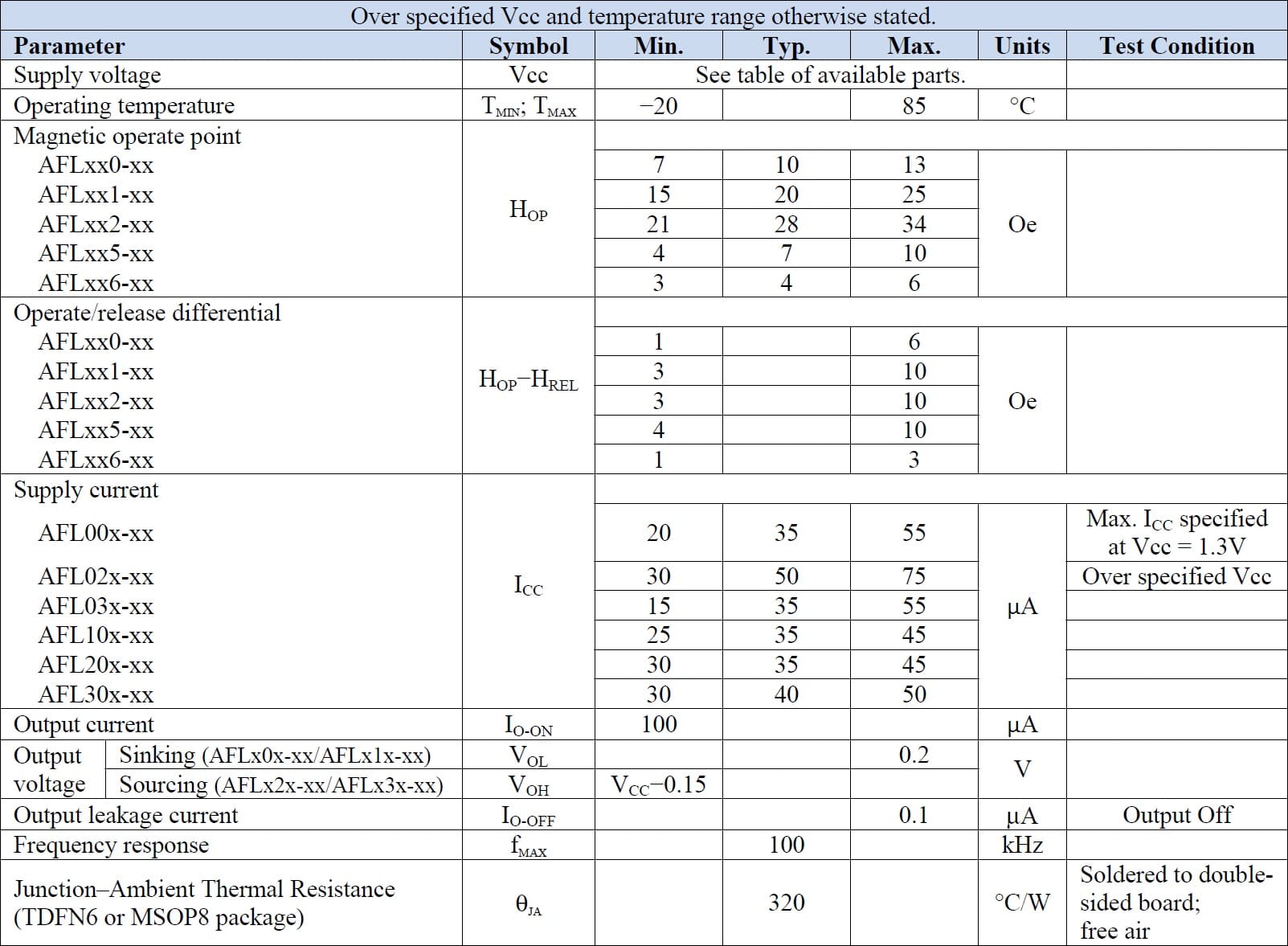

The below table gives the full specifications of the NVE AFL series including the AFL000-00E
£0.00 Ex Tax: £0.00
The AFL000-10E low power switch sensor from NVE integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages down to 0.9 Volts and continuous operation at currents between 20 to 55 microamps. The AFL series from NVE magnetic sensors, have extremely precise magnetic operate point of 10Oe (typ.) and release differential of between 1Oe and 6Oe.
The NVE AFL000-10E GMR low power switch sensor covers the following applications:
The below table gives the full specifications of the NVE AFL series including the AFL000-10E
£0.00 Ex Tax: £0.00
The AFL001-10E low power switch sensor from NVE integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages down to 0.9 Volts and continuous operation at currents between 20μA to 55μA. The AFL series from NVE magnetic sensors, have extremely precise magnetic operate point of 20Oe (typ.) and release differential of between 3Oe and 10Oe.
The NVE AFL000-10E GMR low power switch sensor covers the following applications:
The below table gives the full specifications of the NVE AFL series including the AFL001-10E
£0.00 Ex Tax: £0.00
The AFL002-10E low power switch sensor from NVE integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages down to 0.9 Volts and continuous operation at currents between 20μA to 55μA. The AFL series from NVE magnetic sensors, have extremely precise magnetic operate point of 28Oe (typ.) and release differential of between 3Oe and 10Oe.
The NVE AFL000-10E GMR low power switch sensor covers the following applications:
The below table gives the full specifications of the NVE AFL series including the AFL002-10E
£0.00 Ex Tax: £0.00
The AFL005-10E low power switch sensor from NVE integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages down to 0.9 Volts and continuous operation at currents between 20μA to 55μA. The AFL series from NVE magnetic sensors, have extremely precise magnetic operate point of 7Oe (typ.) and release differential of between 3Oe and 10Oe.
The NVE AFL005-10E GMR low power switch sensor covers the following applications:
The below table gives the full specifications of the NVE AFL series including the AFL005-10E
£0.00 Ex Tax: £0.00
The AFL006-10E low power switch sensor from NVE integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages down to 0.9 Volts and continuous operation at currents between 20μA to 55μA. The AFL series from NVE magnetic sensors, have extremely precise magnetic operate point of 4Oe (typ.) and release differential of between 1Oe and 3Oe.
The NVE AFL005-10E GMR low power switch sensor covers the following applications:
The below table gives the full specifications of the NVE AFL series including the AFL006-10E
£0.00 Ex Tax: £0.00
The AFL020-00E low power switch sensor from NVE integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages down to 0.9 Volts and continuous operation at currents between 30μA to 75μA. The AFL series from NVE magnetic sensors, have extremely precise magnetic operate point of 10Oe (typ.) and release differential of between 1Oe and 6Oe.
The NVE AFL020-00E GMR low power switch sensor covers the following applications:
The below table gives the full specifications of the NVE AFL series including the AFL020-00E
£0.00 Ex Tax: £0.00
The AFL030-00E low power switch sensor from NVE integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages down to 0.9 Volts and continuous operation at currents between 15μA to 55μA. The AFL series from NVE magnetic sensors, have extremely precise magnetic operate point of 10Oe (typ.) and release differential of between 1Oe and 6Oe.
The NVE AFL030-00E GMR low power switch sensor covers the following applications:
The below table gives the full specifications of the NVE AFL series including the AFL030-00E
£0.00 Ex Tax: £0.00
The AFL100-00E low power switch sensor from NVE integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages of 1.8V to 2.5V and continuous operation at currents between 25μA to 45μA. The AFL series from NVE magnetic sensors, have extremely precise magnetic operate point of 10Oe (typ.) and release differential of between 1Oe and 6Oe.
The NVE AFL100-00E GMR low power switch sensor covers the following applications:
The below table gives the full specifications of the NVE AFL series including the AFL100-00E
£0.00 Ex Tax: £0.00
The AFL100-10E low power switch sensor from NVE integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages of 1.8V to 2.5V and continuous operation at currents between 25μA to 45μA. The AFL series from NVE magnetic sensors, have extremely precise magnetic operate point of 10Oe (typ.) and release differential of between 1Oe and 6Oe.
The NVE AFL100-10E GMR low power switch sensor covers the following applications:
The below table gives the full specifications of the NVE AFL series including the AFL100-10E
£0.00 Ex Tax: £0.00
The AFL200-00E low power switch sensor from NVE integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages of 2.7V to 3.6V and continuous operation at currents between 30μA to 45μA. The AFL series from NVE magnetic sensors, have extremely precise magnetic operate point of 10Oe (typ.) and release differential of between 1Oe and 6Oe.
The NVE AFL200-00E GMR low power switch sensor covers the following applications:
The below table gives the full specifications of the NVE AFL series including the AFL200-00E
£0.00 Ex Tax: £0.00
The AFL300-00E low power switch sensor from NVE integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages of 4.5V to 5.5V and continuous operation at currents between 30μA to 50μA. The AFL series from NVE magnetic sensors, have extremely precise magnetic operate point of 10Oe (typ.) and release differential of between 1Oe and 6Oe.
The NVE AFL300-00E GMR low power switch sensor covers the following applications:
The below table gives the full specifications of the NVE AFL series including the AFL300-00E
£0.00 Ex Tax: £0.00
The IL260-1E high speed digital isolator from NVE is a five channel CMOS device with typical data rate of 110Mbps. They feature working voltage of 600VRMS and isolation voltage of 2.5kVrms. The IL260-1E is available in a miniature QSOP package, specified over a temperature range of −40°C to +85°C. These isolators are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. The IL260-1E features symmetric magnetic coupling barrier, providing the best specification in terms of propagation delay and pulse width distortion on the market. The unique fifth channel can be used to distribute isolated clocks or handshake signals to multiple delta-sigma A/D converters. The unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL260 series, including IL260-1E is UL1577 recognised and certified to VDE 0884-10.
Typical applications for the IL260 series include:
£0.00 Ex Tax: £0.00
The IL260-3E high speed digital isolator from NVE is a five channel CMOS device with typical data rate of 110Mbps. They feature working voltage of 600VRMS and isolation voltage of 2.5kVrms. The IL260-1E is available in 0.15" 16-pin SOIC package, specified over a temperature range of −40°C to +85°C. These isolators are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. The IL260-3E features symmetric magnetic coupling barrier, providing the best specification in terms of propagation delay and pulse width distortion on the market. The unique fifth channel can be used to distribute isolated clocks or handshake signals to multiple delta-sigma A/D converters. The unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL260 series, including IL260-3E is UL1577 recognised and certified to VDE 0884-10.
Typical applications for the IL260 series include:
