The SMP-PW surface-mount current sensing resistor series from Isabellenhütte offers SnPb tinned connections suitable for aviation and aerospace applications being ESCC 4001/027 qualified. The design for high power ratings and low internal temperature rises due to the larger pad termination sizes. The Manganin® alloy resistance element has a resistance range of 0.005Ω to 1Ω, TC of below 50ppm/K over the temperature range of +20°C to +60°C and offers excellent long term stability. The SMP-PW model offers these capabilities in a 2010 chip size.
Typical applications for the SMT series include:

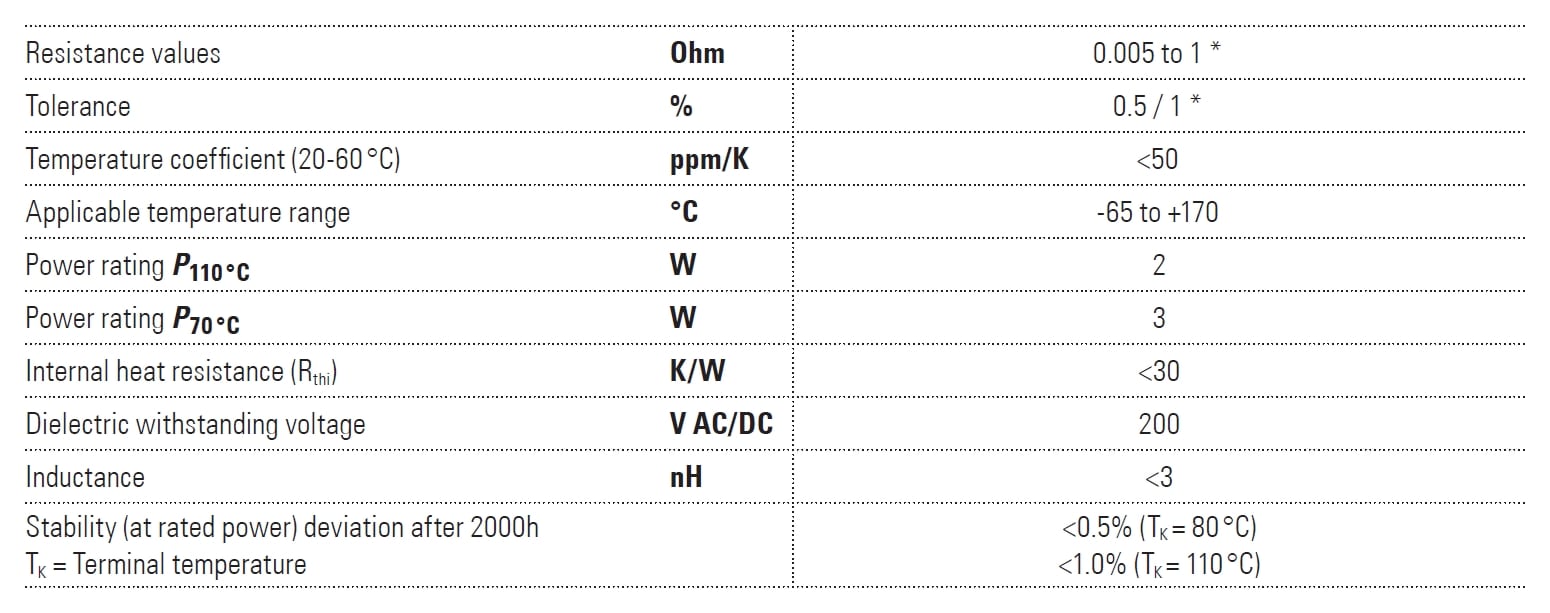

The below table gives an overview of the specifications for Isabellenhütte SMP-PW series
* Please contact us or see ordering information tab
£0.00 Ex Tax: £0.00
The SMS-PW surface-mount current sensing resistor series from Isabellenhütte offers SnPb tinned connections suitable for aviation and aerospace applications being ESCC 4001/027 qualified. Higher power ratings and low internal temperature rises due to the larger pad termination sizes. The Manganin® alloy resistance element has a resistance range of 0.005Ω to 1Ω TCR of below 50ppm/K over the temperature range of +20°C and +60°C and offers excellent long term stability. The SMS-PW model offers these capabilities in a 2512 chip size.
Typical applications for the SMS-PW series include:

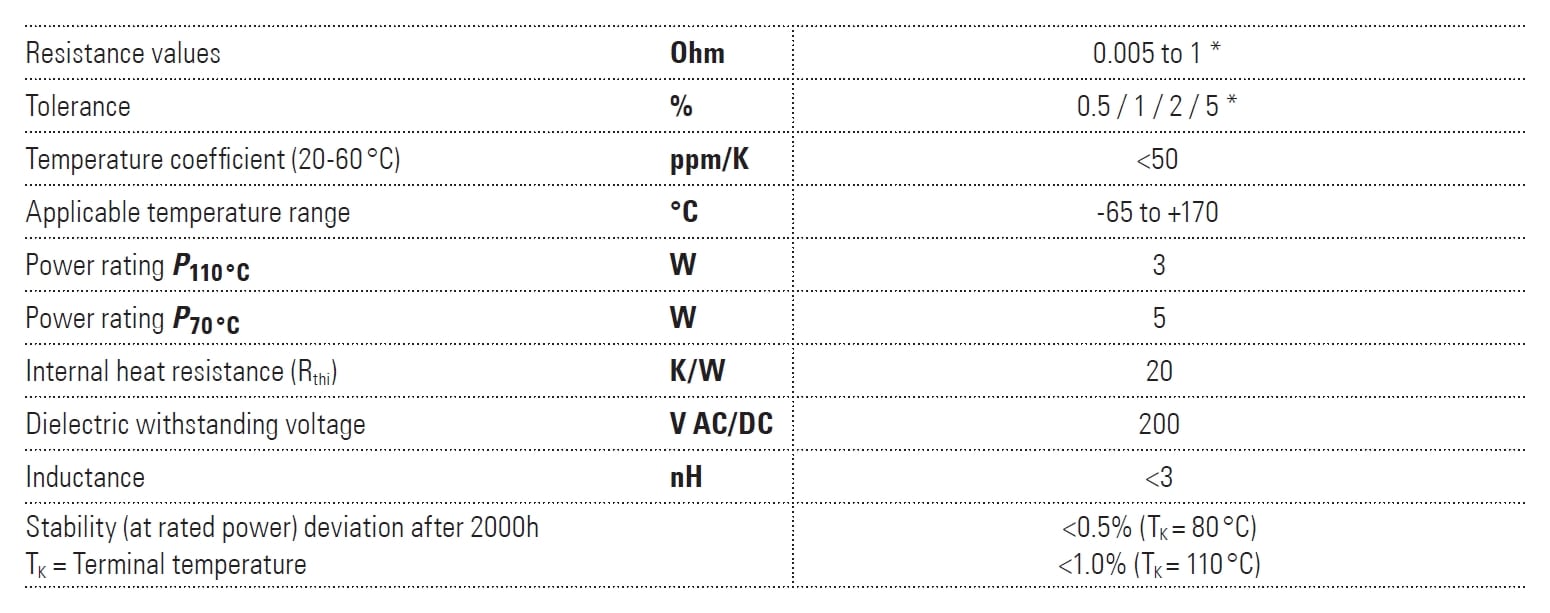

The below table gives an overview of the specifications for Isabellenhütte SMS-PW series:
* Please contact us or see ordering information tab
£0.00 Ex Tax: £0.00
The SMT-PW surface-mount current sensing resistor series from Isabellenhütte offers SnPb tinned connections suitable for aviation and aerospace applications being ESCC 4001/027 qualified. Designed for higher power ratings and low internal temperature rises due to the larger pad termination sizes. The Manganin® alloy resistance element has a resistance range of 0.004Ω to 4Ω, TCR of below 50ppm/K over the temperature range of +20°C and +60°C for resistance values of 0.010Ω or more and offers excellent long term stability. The SMT-PW model offers these capabilities in a 2817 chip size.
Typical applications for the SMT-PW series include:
The below table gives an overview of the specifications for Isabellenhütte SMT-PW series:
* Please contact us or see ordering information tab
£0.00 Ex Tax: £0.00
The SMV-PW 4-terminal surface-mount resistor series from Isabellenhütte offers SnPb tinned connections suitable for aviation and aerospace applications. Developed to be ESCC 4001/028 qualified, with a temperature range of -55°C to +140°C, with a 3W permanent power at 80°C and selective resistance values available are between 0.0033Ω and 1Ω. The SMV-PW series from Isabellenhütte offers high pulse power rating and is suitable for reflow, infrared and wave soldering.
Typical applications for the SMV-PW series include:

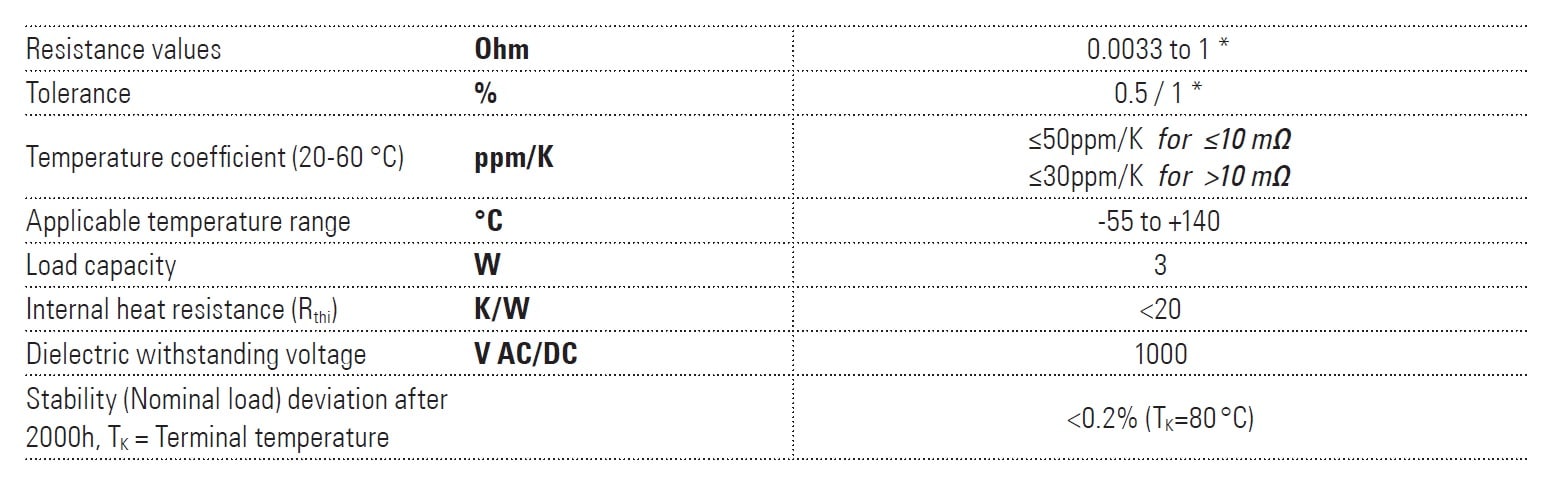

The below table gives an overview of the specifications for the Isabellenhütte SMV-PW series:
* Please contact us for available parts or see the ordering information tab
£0.00 Ex Tax: £0.00
The MCH0402 military grade high voltage chip resistor series from Ohmcraft® offers a voltage rating of 150V, power rating of 0.04W and a resistance range from 10kΩ up to 1GΩ all in a 0402 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. MCH0402 resistors offer very low noise, ultra-high stability with tolerances down to ±1% (between 10kΩ and 500MΩ), TCR as low as ±50 ppm/°C (between 10kΩ and 100MΩ) and VCR down to 1 ppm/V. Ohmcraft's military SMT chip resistors have an extended TCR temperature range (-55°C to +125°C) and are stringently inspected.
Ohmcraft's MCH0402 ultra-high voltage surface-mount resistors are available with various terminations:
Please see the MCH series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.
The below table gives the available specifications for the MCH0402 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The MCH0603 military grade high voltage chip resistor series from Ohmcraft® offers a voltage rating of 400V, power rating of 0.06W and a resistance range from 10kΩ up to 50GΩ all in a 0603 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. MCH0603 resistors offer very low noise, ultra-high stability with tolerances down to ±0.5% (between 10kΩ and 10MΩ), TCR as low as ±50 ppm/°C (between 10kΩ and 500MΩ) and VCR down to 1 ppm/V. Ohmcraft's military SMT chip resistors have an extended TCR temperature range (-55°C to +125°C) and are stringently inspected.
Ohmcraft's MCH0603 military grade ultra-high voltage surface-mount resistors are available with the following terminations:
Please see the MCH series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.

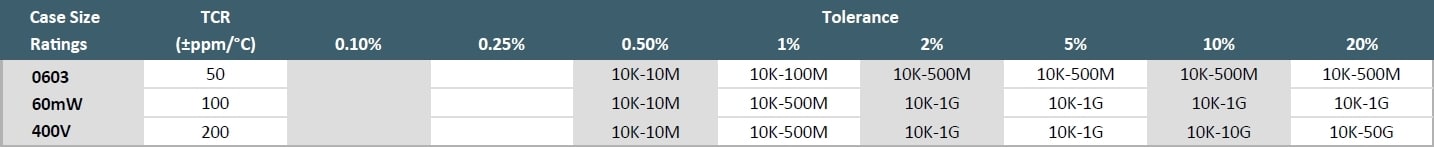

The below table gives the available specifications for the MCH0603 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The MCH0805 military grade high voltage chip resistor series from Ohmcraft® offers a voltage rating of 600V, power rating of 0.2W and a resistance range from 10kΩ up to 50GΩ all in a 0805 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. MCH0805 resistors offer very low noise, ultra-high stability with tolerances down to ±0.5% (between 10kΩ and 10MΩ), TCR as low as ±50 ppm/°C (between 10kΩ and 500MΩ) and VCR down to 1 ppm/V. Ohmcraft's military SMT chip resistors have an extended TCR temperature range (-55°C to +125°C) and are stringently inspected.
Ohmcraft's MCH0805 military grade ultra-high voltage surface-mount resistors are available with the following terminations:
Please see the MCH series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.

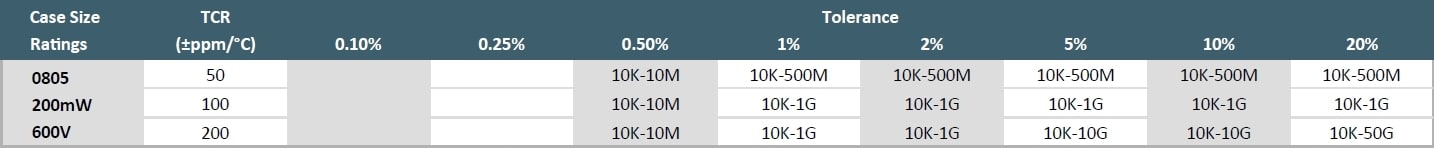

The below table gives the available specifications for the MCH0805 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The MCH1206 military grade high voltage chip resistor series from Ohmcraft® offers a voltage rating of 1.5kV, power rating of 0.33W and a resistance range from 10kΩ up to 50GΩ all in a 1206 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. MCH1206 resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (between 10kΩ and 10MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 100MΩ) and VCR down to 1 ppm/V. Ohmcraft's military SMT chip resistors have an extended TCR temperature range (-55°C to +125°C) and are stringently inspected.
Ohmcraft's MCH1206 military grade ultra-high voltage surface-mount resistors are available with the following terminations:
Please see the MCH series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.
The below table gives the available specifications for the MCH1206 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The MCH2010 military grade high voltage chip resistor series from Ohmcraft® offers a voltage rating of 2kV, power rating of 1W and a resistance range from 10kΩ up to 50GΩ all in a 2010 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. MCH2010 resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (between 10kΩ and 10MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 100MΩ) and VCR down to 1 ppm/V. Ohmcraft's military SMT chip resistors have an extended TCR temperature range (-55°C to +125°C) and are stringently inspected.
Ohmcraft's MCH2010 military grade ultra-high voltage surface-mount resistors are available with the following terminations:
Please see the MCH series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.

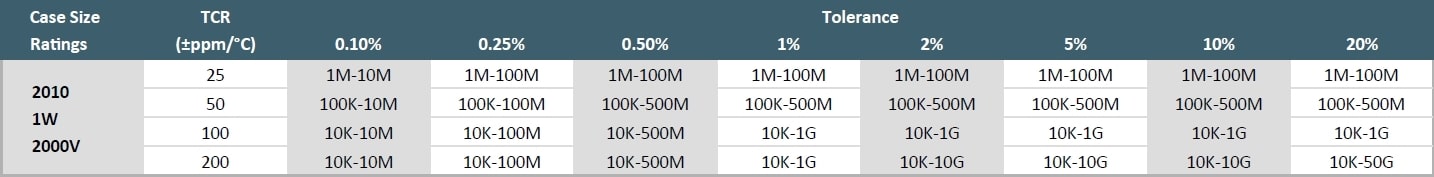

The below table gives the available specifications for the MCH2010 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The MCH2512 military grade high voltage chip resistor series from Ohmcraft® offers a voltage rating of 3kV, power rating of 2W and a resistance range from 10kΩ up to 50GΩ all in a 2512 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. MCH2512 resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (between 10kΩ and 100MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 500MΩ) and VCR down to 1 ppm/V. Ohmcraft's military SMT chip resistors have an extended TCR temperature range (-55°C to +125°C) and are stringently inspected.
Ohmcraft's MCH2512 military grade ultra-high voltage surface-mount resistors are available with the following terminations:
Please see the MCH series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.

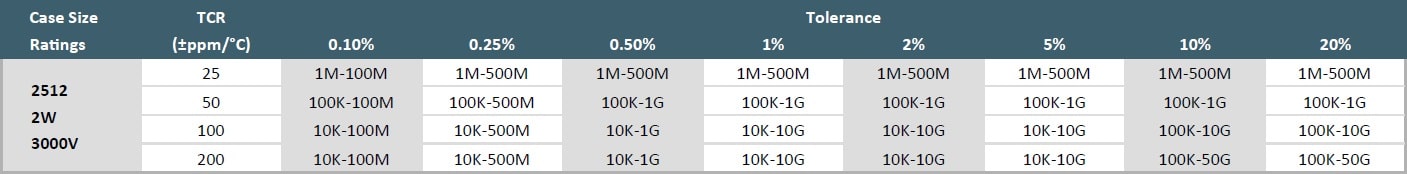

The below table gives the available specifications for the MCH2512 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The MCH3512 military grade high voltage chip resistor series from Ohmcraft® offers a voltage rating of 3.5kV, power rating of 2W and a resistance range from 10kΩ up to 50GΩ all in a 3512 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. MCH3512 resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (between 10kΩ and 100MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 500MΩ) and VCR down to 1 ppm/V. Ohmcraft's military SMT chip resistors have an extended TCR temperature range (-55°C to +125°C) and are stringently inspected.
Ohmcraft's MCH3512 military grade ultra-high voltage surface-mount resistors are available with the following terminations:
Please see the MCH series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.
The below table gives the available specifications for the MCH3512 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The MCH4020 military grade high voltage chip resistor series from Ohmcraft® offers a voltage rating of 4kV, power rating of 2W and a resistance range from 10kΩ up to 50GΩ all in a 4020 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. MCH4020 resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (between 10kΩ and 100MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 500MΩ) and VCR down to 1 ppm/V. Ohmcraft's military SMT chip resistors have an extended TCR temperature range (-55°C to +125°C) and are stringently inspected.
Ohmcraft's MCH4020 military grade ultra-high voltage surface-mount resistors are available with the following terminations:
Please see the MCH series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.

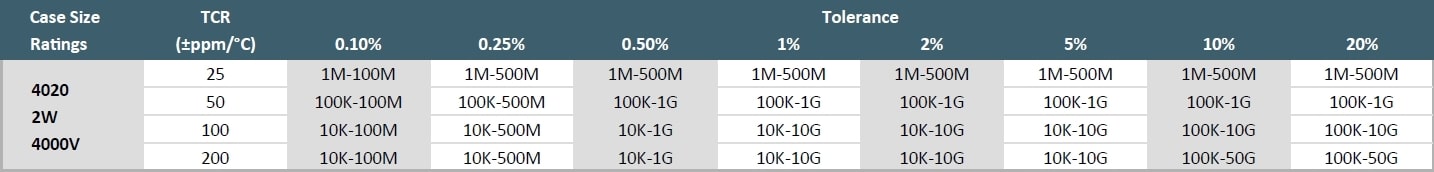

The below table gives the available specifications for the MCH4020 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The MCH5020 military grade high voltage chip resistor series from Ohmcraft® offers a voltage rating of 5kV, power rating of 2W and a resistance range from 10kΩ up to 50GΩ all in a 5020 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. MCH5020 resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (between 10kΩ and 100MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 500MΩ) and VCR down to 1 ppm/V. Ohmcraft's military SMT chip resistors have an extended TCR temperature range (-55°C to +125°C) and are stringently inspected.
Ohmcraft's MCH5020 military grade ultra-high voltage surface-mount resistors are available with the following terminations:
Please see the MCH series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.
The below table gives the available specifications for the MCH5020 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The 22810 polyimide insulated flexible RTD Stikon® surface sensor series from RdF is designed to provide a practical method for measuring surface temperature. The standard sensing element is platinum with a resistance of 100Ω at 0°C with a TCR of 0.0038 Ω/Ω/°C nominal and an operating temperature range -200°C to +232°C. The 22810 sensor series from RdF are small, flexible and their low mass has a minimal thermal effect on the material being measured. They are ideally suited for applications where the device can be permanently mounted using adhesives or other mechanical mounting methods.
The insulation resistance between the outer sensor insulation clamped between 2 metal plates and the common lead wire is 50MΩ minimum with 50VDC applied to a dry sensor at room temperature.
Mounting will conform to surfaces with radii down to ⅜ inch transverse to the element winding and 1½ inch longitudinal to the winding
The below table gives the temperature resistance ratio characteristics of the RdF 22810 series:
Temperature coefficient 0.00385Ω/Ω/°C nominal (IEC751) between -200°C to +232°C for the 22810 series
£0.00 Ex Tax: £0.00
The PNC700 general purpose, high accuracy pancake load cell from Stellar Technology, offers maximum load ranges from 100lbs to 100k lbs with an accuracy of ±0.05% FSO BFSL. These force sensors incorporate a threaded-through centre hole with dual diaphragms and uniquely configured mounting holes, these design features result in improved accuracy and increased rigidity thus reducing both the effects if off-centre loading and side loading. The PNC700 series from Stellar Technology are constructed of all welded stainless steel for very demanding application environments, with bolt-on or welded-on stainless steel electrical connectors.
Optional features for the Stellar Technology PNC700 series include:
Potential markets for the Stellar Technology PNC700 series include:
