The BAC precision resistor series from Isabellenhütte includes a PCB with connector for voltage sensing, designed for battery management systems or welding equipment with a low resistance value of 50µΩ or 100µΩ. The BAC series from Isabellenhütte is available with untinned or Ni-plated terminals, continuous load up to 550A (50µΩ) within a chip size of 8420.
Typical applications for the BAC series include:

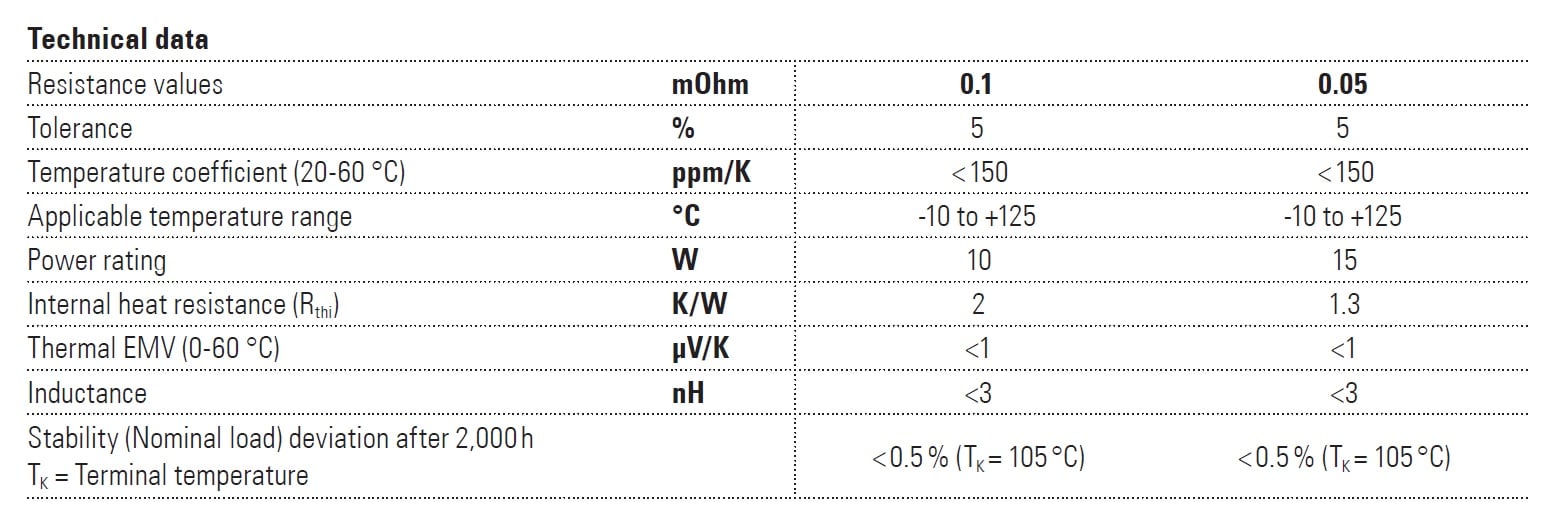

The below table gives an overview of the specifications for the Isabellenhütte BAC series:
£0.00 Ex Tax: £0.00
The BAS precision resistor series from Isabellenhütte, designed for battery management systems or welding equipment with a low resistance values from 0.000035Ω to 0.0005Ω. The BAS series from Isabellenhütte is available with tinned or untinned terminals, continuous load up to 350A (100µΩ) within a chip size of 8420.
Typical applications for the BAS series include:

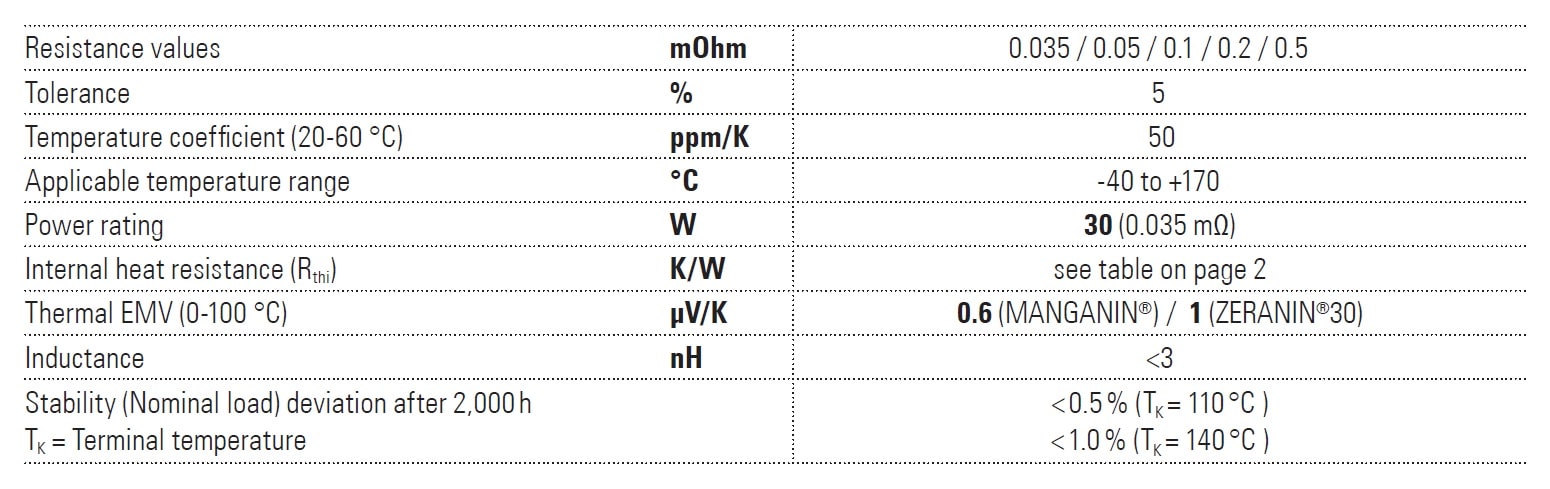

The below table gives an overview of the specifications for the Isabellenhütte BAS series:
£0.00 Ex Tax: £0.00
The BRS surface-mount resistor series from Isabellenhütte has an excellent long term stability and is ideal for mounting on DBC and IMS substrate with a maximum solder temperature up to 350°C for 30 seconds or 250°C for 10 minutes. The BRS series from Isabellenhütte has a range of resistance values from 0.002Ω to 0.025Ω and solid metal precision materials.
Typical applications for the BRS series include:

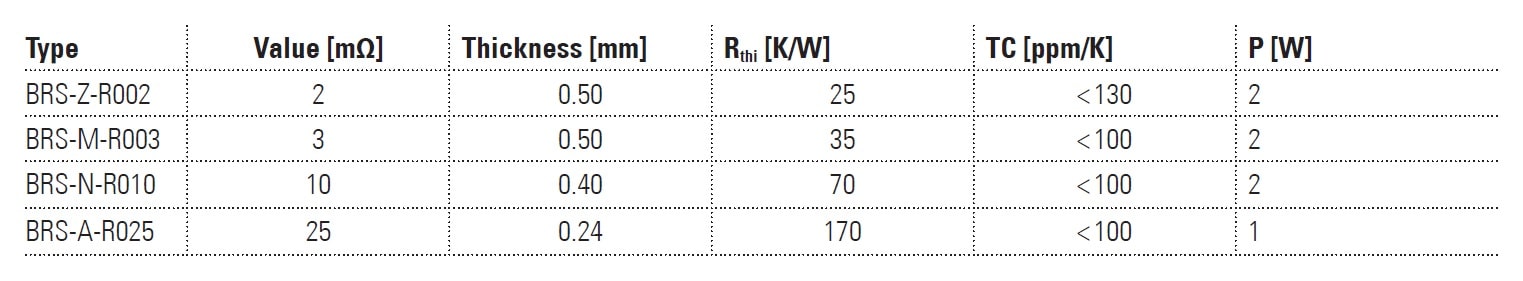

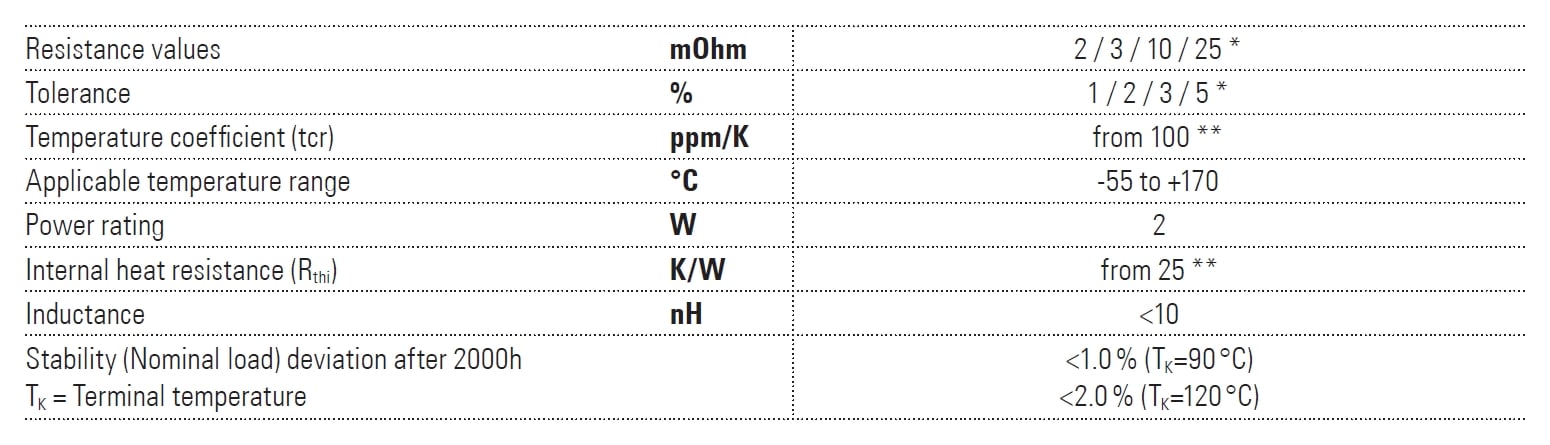

The below tables give an overview of the specifications for the Isabellenhütte BRS series as well as the standard parts available:
Further values and tolerances available on request
£0.00 Ex Tax: £0.00
The BVB surface-mount resistor series from Isabellenhütte is made of composite material considered ideal for use on DBC or ceramic substrate. The BVB series from Isabellenhütte offers 4-terminal connection and has excellent long term stability with a range of resistance values from 0.0002 to 0.005Ω within a 2725 chip size
Typical applications for the BVB series include:

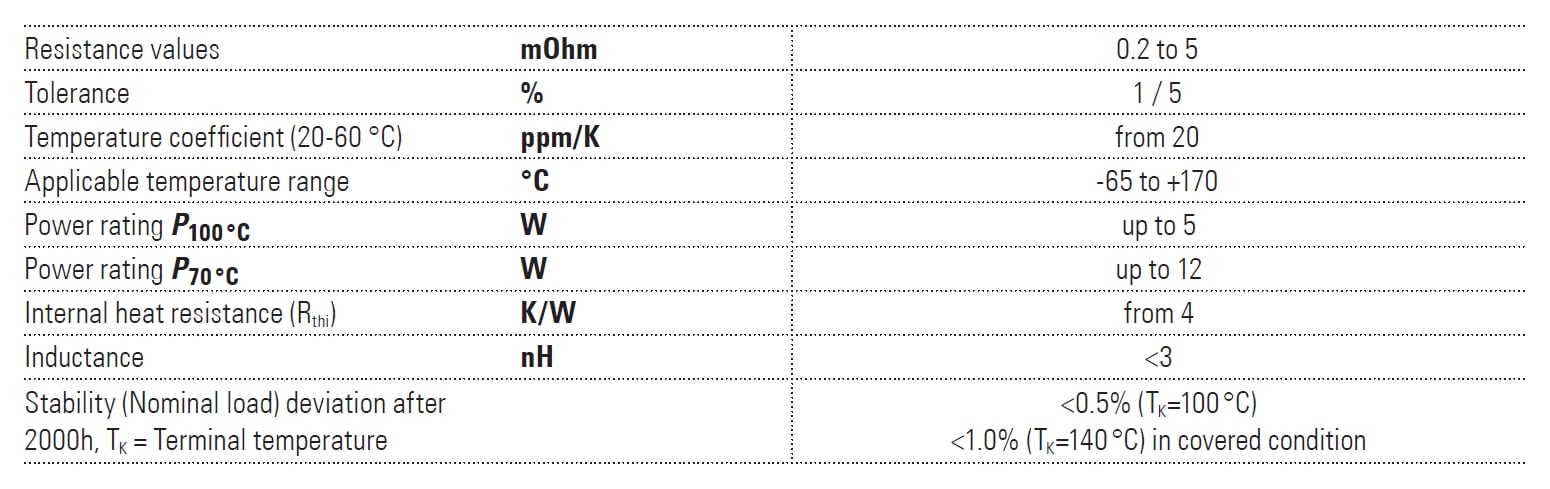

The below tables give an overview of the specifications for the Isabellenhütte BVB series as well as the standard parts:
£0.00 Ex Tax: £0.00
The BVE 2-terminal precision resistor series from Isabellenhütte is designed with large heavy copper connectors for high performance and the resistance range for these resistors is between 0.0001Ω to 0.002Ω. The BVE series from Isabellenhütte offers a continuous current load up to 220A (0.0002Ω), with a TCR value from 50 ppm/K and 5930 chip size.
Typical applications for the BVE series include:

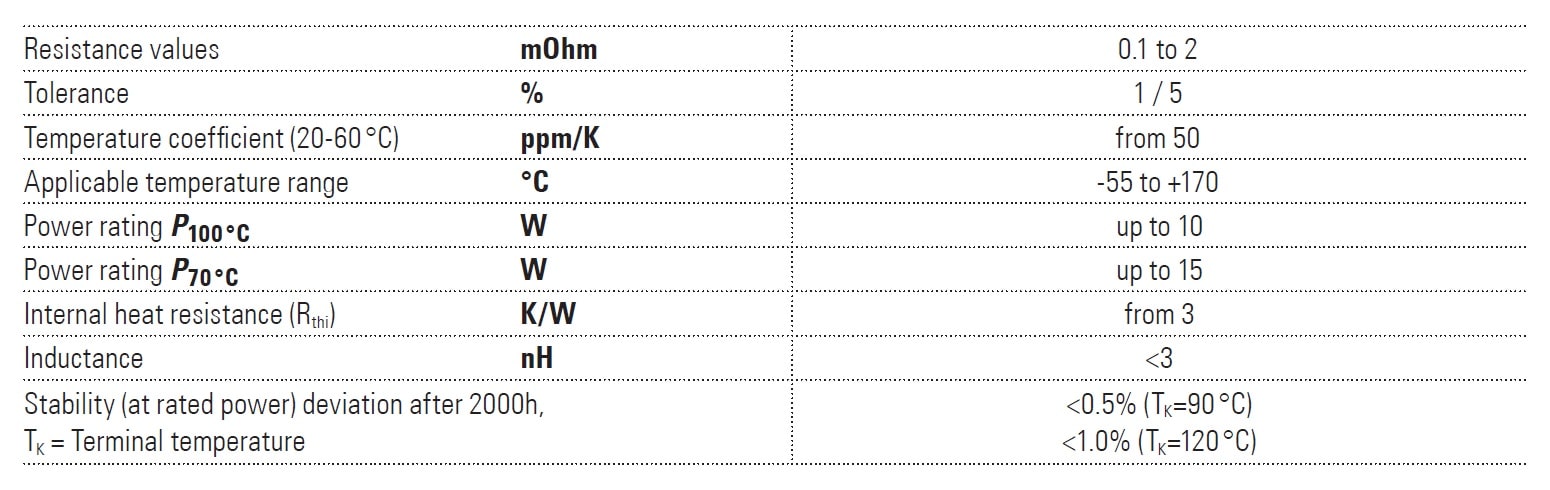

The below tables give an overview of the specifications for the Isabellenhütte BVE series as well as the standard parts available:
£0.00 Ex Tax: £0.00
The BVF 2-terminal precision resistor series from Isabellenhütte is a small designed resistor with a chip size of 1213. The resistance values are 0.001Ω to 0.0015Ω with a TCR of <70 ppm/K and it uses NOVENTIN® material. The BVF series from Isabellenhütte offers a continuous current up to 55A (0.001Ω), with excellent long term stability and is AEC-Q200 qualified.
Typical applications for the BVF series include:

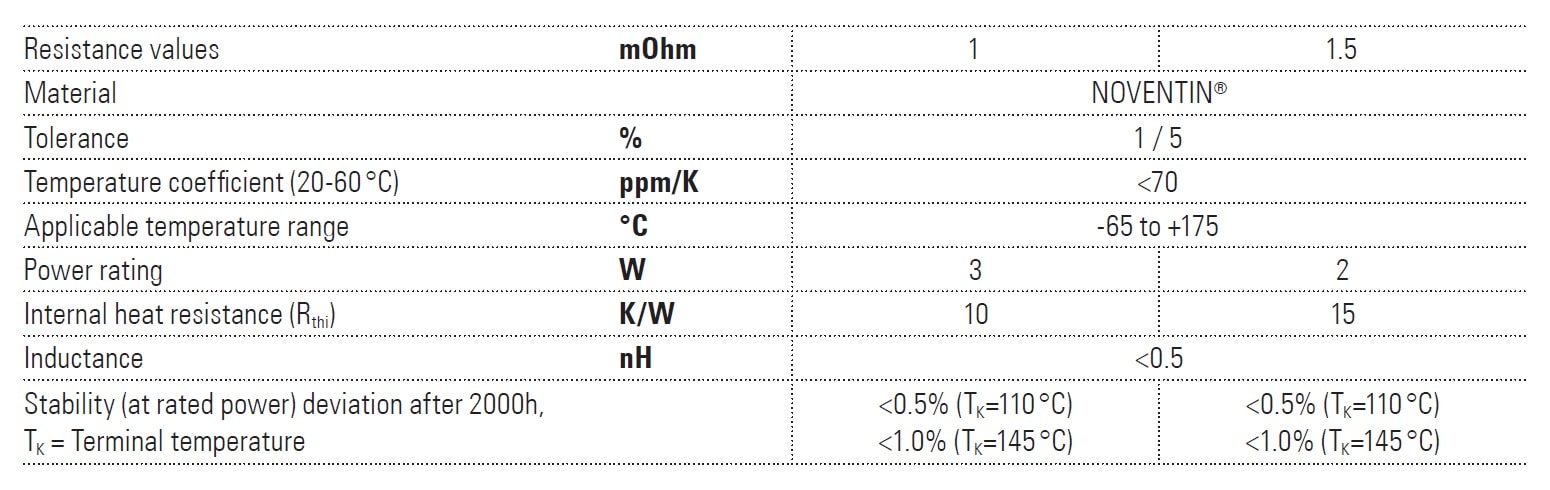

The below table gives an overview of the specifications for the Isabellenhütte BVF series:
£0.00 Ex Tax: £0.00
The BVH 4-terminal through-hole precision resistor series from Isabellenhütte has a chip size of 3820 with solid copper connections. The resistance values available are 0.0003Ω, 0.0005Ω, 0.001Ω and 0.002Ω with a TCR of <100 ppm/K (0.001Ω and 0.005Ω) and <300 ppm/K (0.0003Ω and 0.0005Ω). The BVH series from Isabellenhütte offers a continuous current up to 100A (0.0003Ω), with excellent long term stability and is AEC-Q200 qualified.
Typical applications for the BVH series include:
The below table gives an overview of the specifications for the Isabellenhütte BVH series:
£0.00 Ex Tax: £0.00
The BVM-F precision resistor series from Isabellenhütte is designed for high current applications such as kWh meters and battery chargers, with a resistance value range from 0.0001Ω to 0.0005Ω. The BVM-F series from Isabellenhütte has a three different power connections with a choice of threaded bolts, bolt down holes or solid terminals, which have a continuous current load up to 200A (0.0001Ω).
Typical applications for the BVM-F series include:

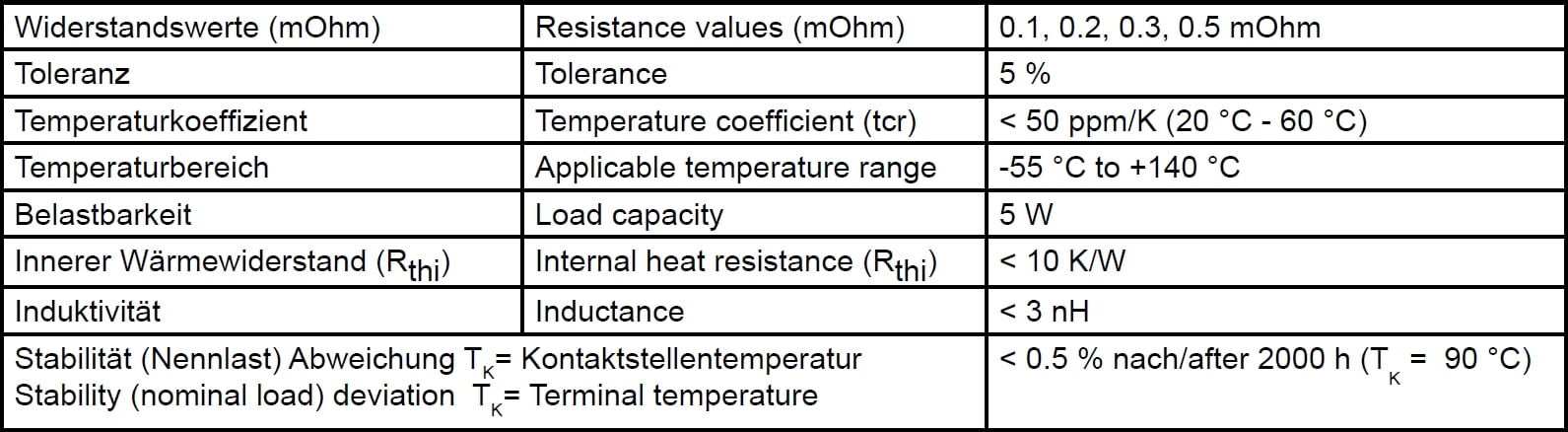

The below table gives an overview of the specifications for the Isabellenhütte BVM-F series:
£0.00 Ex Tax: £0.00
The BVN resistor series from Isabellenhütte offers 4-terminal surface-mount connection technology for current sensing applications in a space saving design. Developed for high current automotive applications with a power rating up to 5W, resistance values available are 0.0005Ω and 0.01Ω. The BVN series from Isabellenhütte offers excellent long term stability, manufactured from solid metal alloys and are ideal for mounting on DBC or ceramic substrate.
Typical applications for the BVN series include:

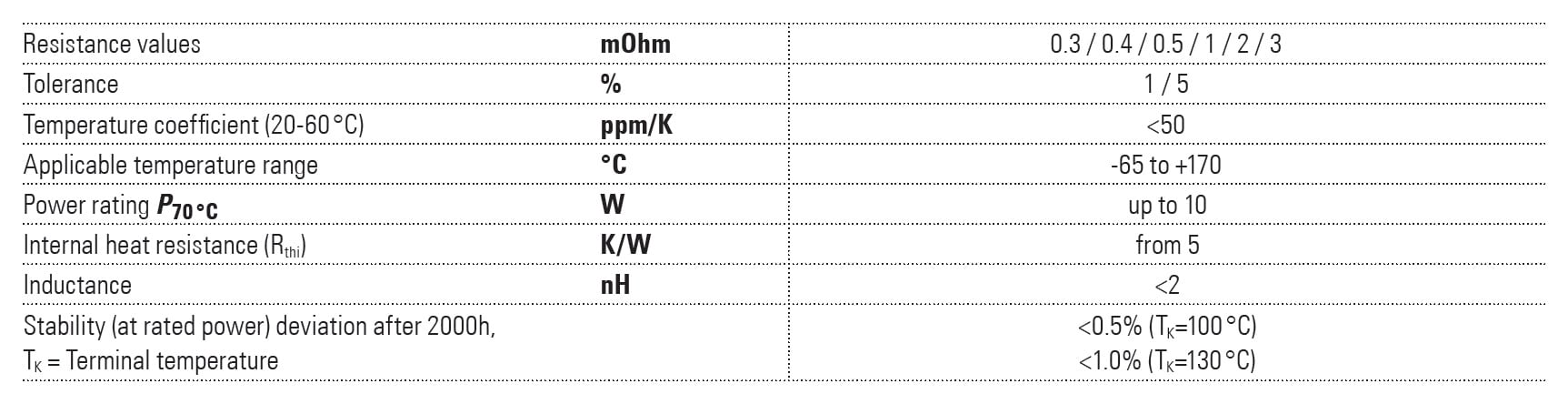

The below table gives an overview of the specifications for the Isabellenhütte BVN series:
£0.00 Ex Tax: £0.00
The BVR 4-terminal precision resistor series from Isabellenhütte has a chip size of 4026 with heavy copper connections ideally suited for mounting on DBC/IMS substrate. The available resistance range is from 0.0002Ω to 0.003Ω, with a TCR from 20 ppm/K to 50 ppm/K. The BVR series from Isabellenhütte offers a continuous current load up to 160A (0.0002Ω), with excellent long term stability and is AEC-Q200 qualified.
Typical applications for the BVR series include:

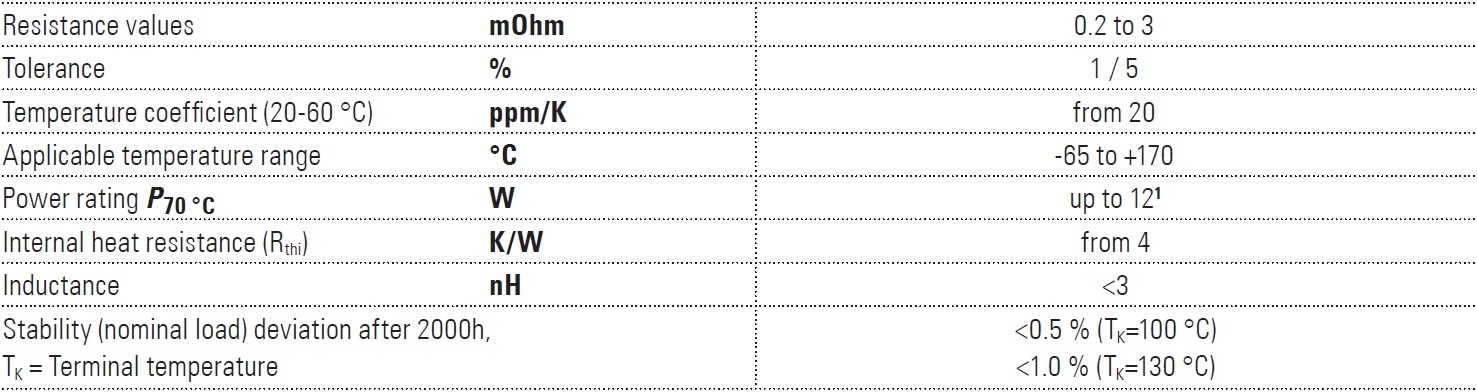

The below table gives an overview of the specifications for the Isabellenhütte BVR series:
£0.00 Ex Tax: £0.00
The BVS 2-terminal precision resistor series from Isabellenhütte has a chip size of 3920 with heavy copper connections ideally suited for mounting on DBC substrate. The available resistance range is from 0.0002Ω to 0.005Ω, with a TCR from ±50 ppm/K. The BVS series from Isabellenhütte offers a continuous current load up to 160A (0.0002Ω), with excellent long term stability and is AEC-Q200 qualified.
Typical applications for the BVS series include:
The below table gives an overview of the specifications for the Isabellenhütte BVS series:
£0.00 Ex Tax: £0.00
The BVT resistor series from Isabellenhütte offers 2-terminal surface-mount connection technology for current sensing applications. Developed with a high application temperature range of -65° to +170° due to its special design, it has a power rating up to 6W and selective resistance values are available between 0.0003Ω and 0.068Ω. The BVT series from Isabellenhütte offers excellent long term stability.
Typical applications for the BVT series include:

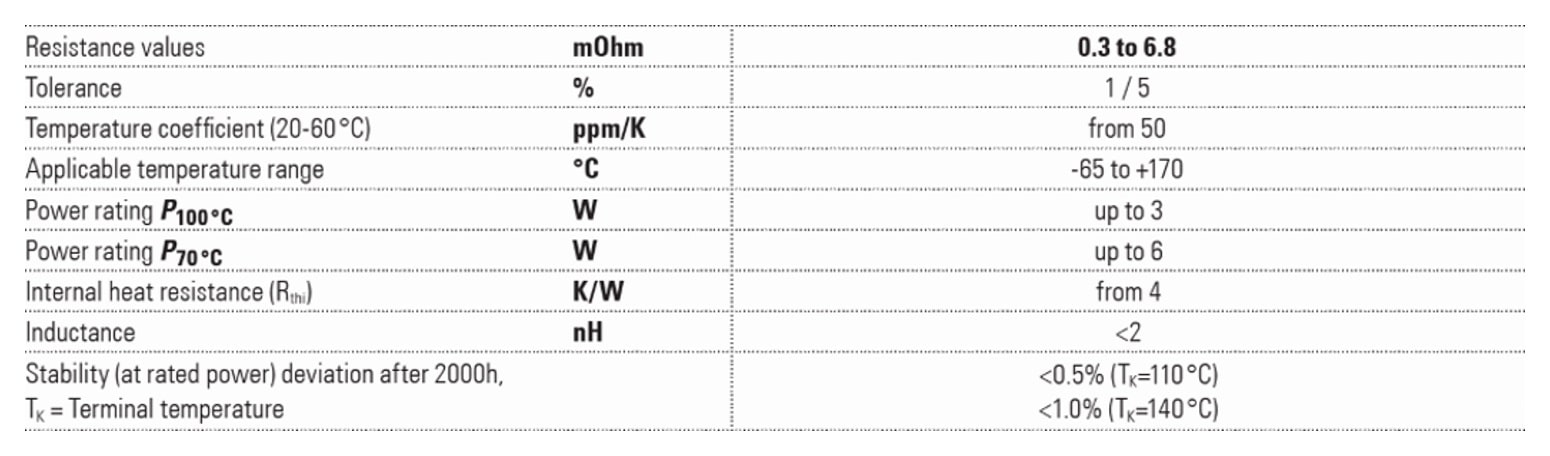

The below tables give an overview of the specifications for the Isabellenhütte BVT series as well as the standard parts available:
£0.00 Ex Tax: £0.00
The BVZ resistor series from Isabellenhütte offers 2-terminal surface-mount connection technology for current sensing applications. These resistors are ideally suited for mounting on DBC/IMS substrate. Developed with a high application temperature range of -65° to +170°, they offer power rating up to 13W and resistance values between 0.525mΩ and 3mΩ. The BVZ series from Isabellenhütte offers excellent long term stability.
Typical applications for the BVZ series include:

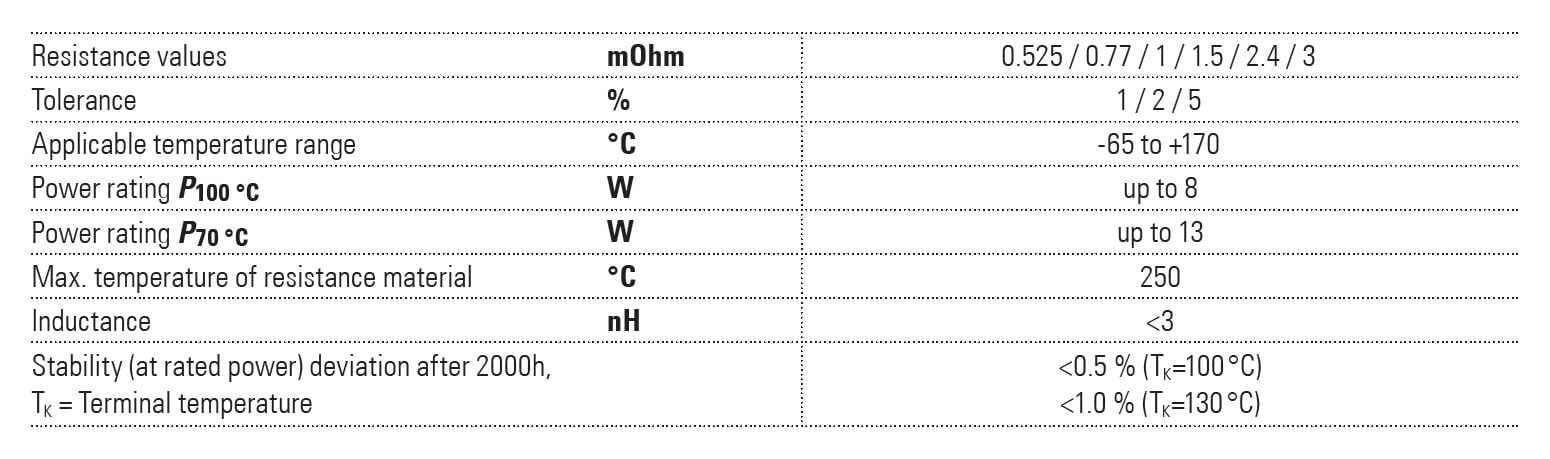

The below tables give an overview of the specifications for the Isabellenhütte BVZ series as well as the standard parts available in the Ordering info tab:
£0.00 Ex Tax: £0.00
The CMK surface-mount current sensing resistor series from Isabellenhütte has been developed to offer outstanding price-performance ratio. The CMK series with a resistance range of 0.01Ω to 0.1Ω offers a temperature coefficient of below 50ppm/K (between +20°C and +60°C) over the entire ohmic range, tolerances as low as ±1% as well as good long term stability. The CMK model offers these capabilities in a 1206 chip size.
Typical applications for the CMK series include:

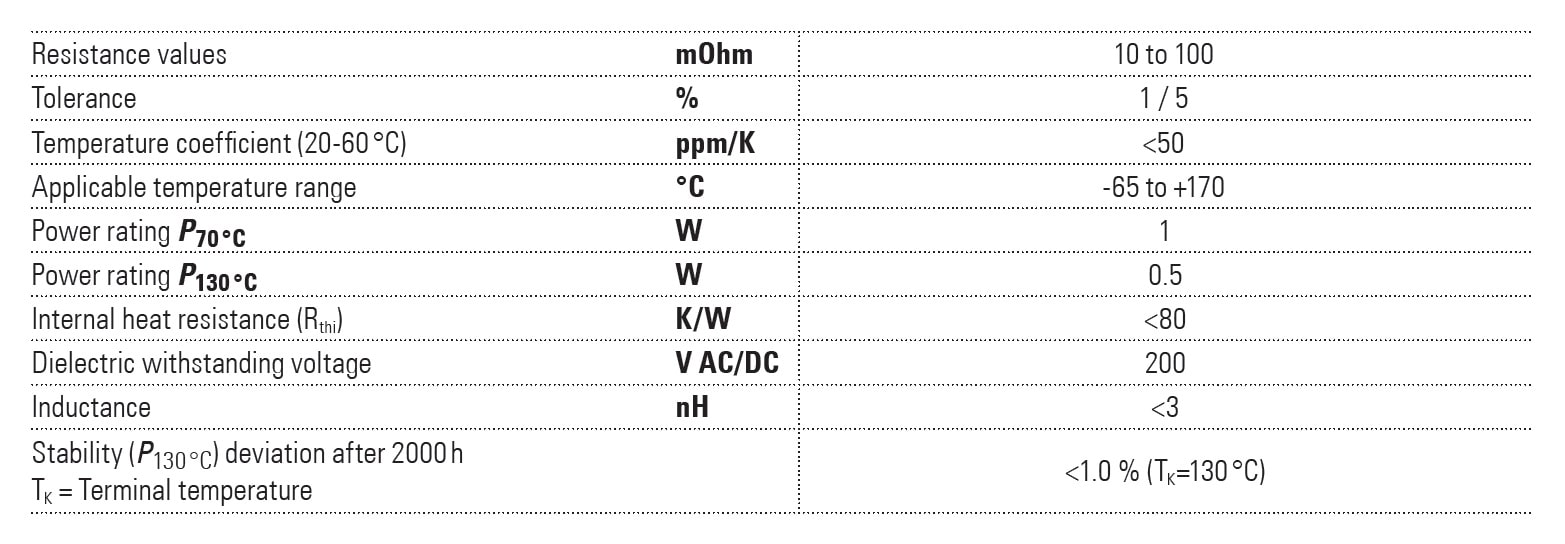

The below table gives an overview of the specifications for Isabellenhütte CMK series
£0.00 Ex Tax: £0.00
The CMP surface-mount series from Isabellenhütte has been developed to offer outstanding price-performance ratio. The CMP series with a resistance range of 0.01Ω to 0.25Ω offers a temperature coefficient of below 50ppm/K (between +20°C and +60°C) over the entire ohmic range, tolerances down to ±1% as well as good long term stability. The CMP model offers these capabilities in a 2010 chip size.
Typical applications for the CMP series include:

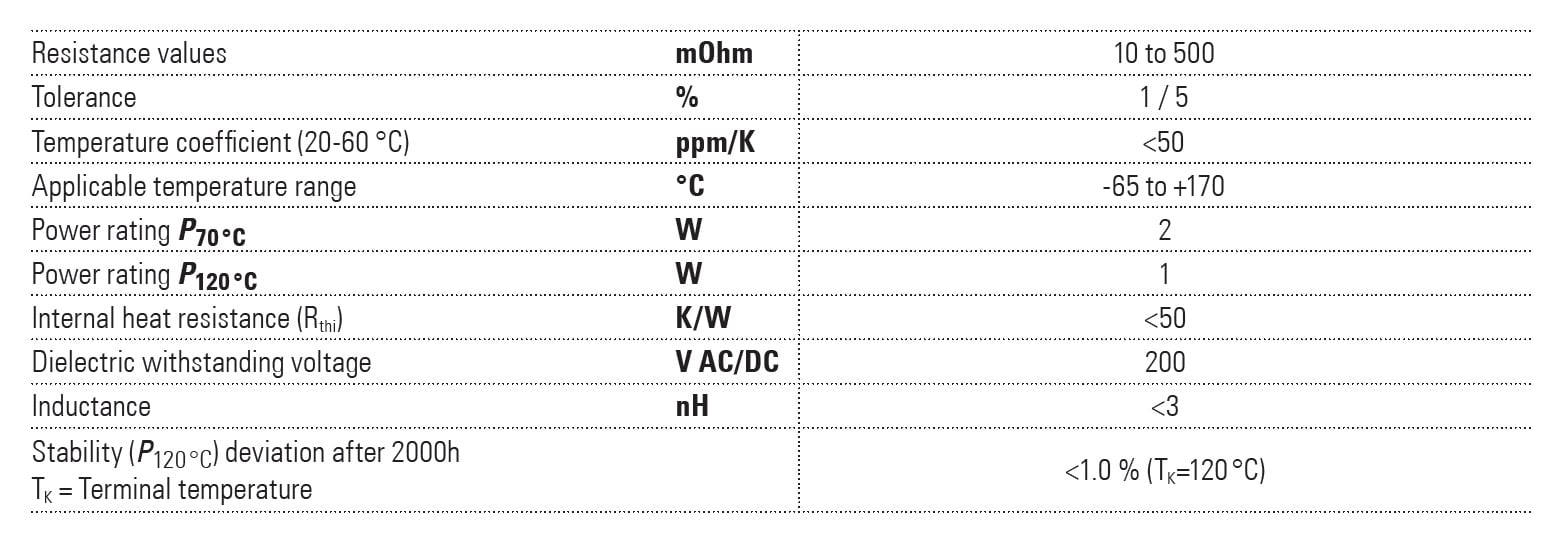

The below table gives an overview of the specifications for the Isabellenhütte CMP series:
£0.00 Ex Tax: £0.00
