Alpha ATV Series
Click Image for Gallery
The ATV series from Alpha Electronics is a current / voltage (I/V) conversion adaptor used to accurately measure current using a voltage meter. Its small, lightweight construction enables it to be easily attached directly to a voltage meter for ease of operation.
- Current / voltage conversion adaptor
- Compact size
- Lightweight
- Full resistance range available from 1Ω to 100kΩ
- Temperature coefficient of ±2.5 ppm/°C
- ±0.1% accuracy
- Maximum working current of up to 0.5A (ATV-1R0 1Ω model)
- Power rating of 0.1W (0.25W for the ATV-1R0 model)
Each model corresponds to a set resistance value and maximum working current.

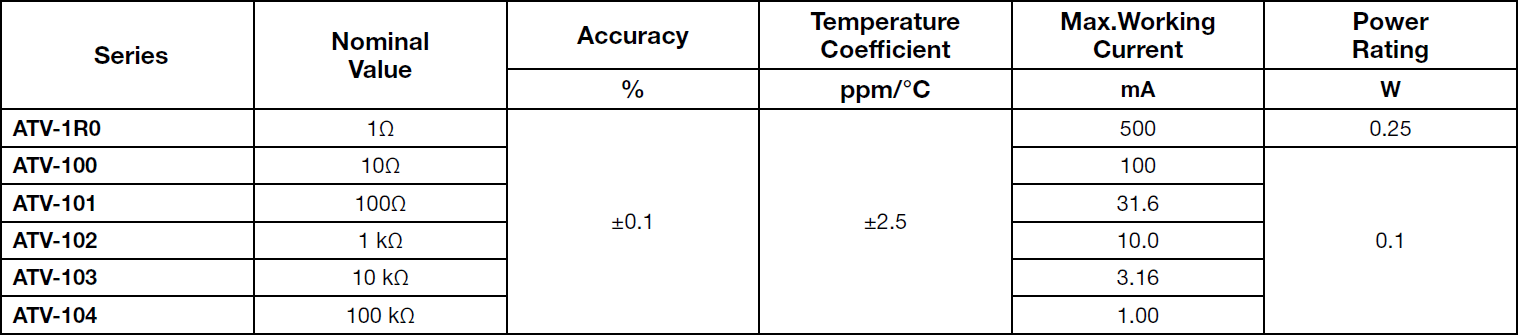

The below table gives the full specifications for each model available of the Alpha ATV series:
| Specifications | |
| Accuracy | ±0.1% |
| Additional Features |
|
| Maximum Power Rating |
|
| Maximum Resistance | 100kΩ |
| Minimum Resistance | 1Ω |
| TCR | ±2.5 ppm/°C |
