The MU ultra-precision resistor 1-2-3 network series from Alpha Electronics offers a 3 terminal, 2 element resistor network in a small surface-mount package. Each resistive element can range from 10Ω up to 20kΩ all with tight tolerances down to +0.02% absolute and +0.01% matching (1kΩ to 20kΩ). By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce this resistor network series with low temperature coefficients (both absolute and tracking) as well as excellent long-term stability. The Alpha MU series J-lead terminals provide flexibility once the parts are soldered to the board compared to standard fixed surface-mount resistors.

2 element resistor network

Each resistor element is available in any resistance between 10Ω and 20kΩ

Surface-mount moulded package with J-lead terminations

Tight absolute tolerance of ±0.02% for resistances between 1kΩ and 20kΩ with an even tighter matching tolerance of ±0.01% over the same resistance range available

Tight absolute TCR of ±5 ppm/°C (from -55°C up to +125°C, between 100Ω and 20kΩ)

Tight tracking TCR available of between ±1 ppm/°C and ±5 ppm/°C depending on resistance ratio between the two elements

Power rating of 0.05W per resistor element (at +125°C)

Maximum rated operating temperature +125°C

Working temperature from -65°C up to +150°C

The MU surface-mount, ultra-precision resistor 1-2-3 network series exhibits excellent high frequency characteristics thanks to Alpha's Bulk Metal® foil resistor technology, making them suitable for the most demanding precision applications.

Alpha's MU resistor network series are ideal for use in input and feedback resistors for amplifiers due to both the input and feedback resistors being incorporated into the same package, therefore amplification is not affected by temperature change.

The below table gives a summary of the specifications and options available for the Alpha MU series:

* Symbols parenthesized are for part number composition ** Please contact us for resistance availability

The SC case-encapsulated precision resistor network series from Alpha Electronics is fully customisable and offers excellent performance in TCR tracking, resistance ratio matching and stability thanks to Alpha's Bulk Metal® foil resistor technology. The SC ultra-precision resistor network series can offer up to a maximum of 10 resistive elements. Each resistive element can range from 30Ω up to 120kΩ all with tight tolerances, both absolute and matching, down to +0.01% (the maximum total resistance for the network is 1,200kΩ).

Fully customisable resistor network with up to 10 resistor elements and 5 different standard circuit layouts to choose from

Each resistor element is available in any resistance between 30Ω and 120kΩ

Maximum resistance value for complete resistor network of 1,200kΩ

Through-hole case-encapsulated package

Tight absolute and matching tolerances as low as ±0.01% available

Tight absolute TCR of ±5 ppm/°C (from -25°C up to +125°C)

Tight tracking TCR available of between ±1 ppm/°C and ±3 ppm/°C depending on resistance ratio (Rmax. / Rmin.)

Power rating of 1.5W for the complete resistor package (at +70°C)

Maximum rated operating temperature +70°C

Working temperature from -55°C up to +155°C

The SC case-encapsulated, through-hole, ultra-precision resistor network series exhibits excellent high frequency characteristics thanks to Alpha's Bulk Metal® foil resistor technology, making them suitable for the most demanding precision applications.

These resistors are fully customisable including the circuit layout. There are 5 standard circuit types available to choose from:

Circuit layout A - resistor array

Circuit layout B - independent resistors in the same package

Circuit layout C - divider network

Circuit layout E - circuit layout A split into 2 i.e. 2 separate resistor arrays

Circuit layout F - circuit layout C split into 2 i.e. 2 separate divider networks

For full details, please see the ultra-precision resistor networks supporting document under the technical library tab.

Pin pitch for the Alpha SC series will be in multiples of 2.54mm.

The below table gives a summary of the specifications and options available for the Alpha SC series:

* TCR tracking is dependent on resistance ratio, please see Table 1 ** Symbols parenthesized are for part number composition

The SE conformally coated precision resistor network series from Alpha Electronics is fully customisable and offers excellent performance in TCR tracking, resistance ratio matching and stability thanks to Alpha's Bulk Metal® foil resistor technology. The SE precision resistor network series can offer up to a maximum of 5 resistive elements. Each resistive element can range from 30Ω up to 120kΩ all with tight tolerances down to +0.05% absolute and +0.01% matching (the maximum total resistance for the network is 600kΩ).

Fully customisable resistor network with up to 5 resistor elements and 4 different standard circuit layouts to choose from

Each resistor element is available in any resistance between 30Ω and 120kΩ

Maximum resistance value for complete resistor network of 600kΩ

Through-hole conformally coated package

Tight absolute tolerance of ±0.05% with an even tighter matching tolerance of ±0.01% available

Tight absolute TCR of ±5 ppm/°C (from -25°C up to +125°C)

Tight tracking TCR available of between ±1 ppm/°C and ±3 ppm/°C depending on resistance ratio (Rmax. / Rmin.)

Power rating of 1W for the complete resistor package (at +70°C)

Maximum rated operating temperature +70°C

Working temperature from -25°C up to +125°C

The SE conformally coated, through-hole, precision resistor network series exhibits excellent high frequency characteristics thanks to Alpha's Bulk Metal® foil resistor technology, making them suitable for the most demanding precision applications.

These resistors are fully customisable including the circuit layout. There are 4 standard circuit types available to choose from:

Circuit layout A - resistor array

Circuit layout B - independent resistors in the same package

Circuit layout C - divider network

Circuit layout F - circuit layout C split into 2 i.e. 2 separate divider networks

For full details, please see the ultra-precision resistor networks supporting document under the technical library tab.

Pin pitch for the Alpha SE series will be in multiples of 2.54mm.

The below table gives the full specifications for each resistor model available including the Alpha SE series:

* TCR tracking is dependent on resistance ratio, please see Table 1 ** Symbols parenthesized are for part number composition

The SF conformally coated precision resistor network series from Alpha Electronics is fully customisable and offers excellent performance in TCR tracking, resistance ratio matching and stability thanks to Alpha's Bulk Metal® foil resistor technology. The SF precision resistor network series offers 2 resistive elements. Each resistive element can range from 30Ω up to 120kΩ all with tight tolerances down to +0.05% absolute and +0.01% matching (the maximum total resistance for the network is 240kΩ).

Fully customisable resistor network with 2 resistor elements and 2 different standard circuit layouts to choose from

Each resistor element is available in any resistance between 30Ω and 120kΩ

Maximum resistance value for complete resistor network of 240kΩ

Through-hole conformally coated package

Tight absolute tolerance of ±0.05% with an even tighter matching tolerance of ±0.01% available

Tight absolute TCR of ±5 ppm/°C (from -25°C up to +125°C)

Tight tracking TCR available of between ±1 ppm/°C and ±3 ppm/°C depending on resistance ratio (Rmax. / Rmin.)

Power rating of 0.5W for the complete resistor package (at +70°C)

Maximum rated operating temperature +70°C

Working temperature from -25°C up to +125°C

The SF conformally coated, through-hole, precision resistor network series exhibits excellent high frequency characteristics thanks to Alpha's Bulk Metal® foil resistor technology, making them suitable for the most demanding precision applications.

These resistors are fully customisable including the circuit layout. There are 2 standard circuit types available to choose from:

Circuit layout B - independent resistors in the same package

Circuit layout C - divider network

For full details, please see the ultra-precision resistor networks supporting document under the technical library tab.

Pin pitch for the Alpha SF series will be in multiples of 2.54mm.

The below table gives the full specifications for each resistor model available including the Alpha SF series:

* TCR tracking is dependent on resistance ratio, please see Table 1 ** Symbols parenthesized are for part number composition

The SLD conformally coated ultra-precision resistor 1-2-3 network series from Alpha Electronics offers a 3 terminal, 2 element resistor network in a small through-hole package. Each resistive element can range from 50Ω up to 30kΩ all with tight tolerances down to +0.05% absolute and +0.02% matching (100Ω to 30kΩ). By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce this resistor network series with low temperature coefficients (both absolute and tracking) as well as excellent long-term stability. The Alpha SLD series offers three pins with a standard pin pitch of 2.54 ±0.25mm.

2 element resistor network

Each resistor element is available in any resistance between 50Ω and 30kΩ

Through-hole conformally coated 3 pin package

Tight absolute tolerance of ±0.05% for resistances between 100Ω and 30kΩ with an even tighter matching tolerance of ±0.02% over the same resistance range available

Tight absolute TCR of ±2.5 ppm/°C (from -25°C up to +125°C)

Tight tracking TCR available of between ±0.5 ppm/°C and ±3 ppm/°C depending on resistance ratio between the two elements

Power rating of 0.25W per resistor package (at +70°C)

Maximum rated operating temperature +70°C

Working temperature from -25°C up to +125°C

The SLD through-hole, ultra-precision resistor 1-2-3 network series exhibits excellent high frequency characteristics thanks to Alpha's Bulk Metal® foil resistor technology, making them suitable for the most demanding precision applications.

Alpha's SLD resistor network series are ideal for use in input and feedback resistors for amplifiers due to both the input and feedback resistors being incorporated into the same package, therefore amplification is not affected by temperature change.

The below table gives the full specifications for each resistor model available including the Alpha SLD series:

* Symbols parenthesized are for part number composition ** Please contact us for resistance availability TCR is from -25°C to +125°C for SLD Type

The SM transfer moulded ultra-precision resistor 1-2-3 network series from Alpha Electronics offers a 3 terminal, 2 element resistor network in a small through-hole package. Each resistive element can range from 10Ω up to 30kΩ all with tight tolerances down to +0.02% absolute and +0.01% matching (50Ω to 30kΩ). By utilising Alpha's Bulk Metal® foil resistor technology, they are able to produce this resistor network series with low temperature coefficients (both absolute and tracking) as well as excellent long-term stability. The Alpha SM series offers three pins with a standard pin pitch of 2.54 ±0.25mm.

2 element resistor network

Each resistor element is available in any resistance between 50Ω and 30kΩ

Through-hole conformally coated 3 pin package

Tight absolute tolerance of ±0.02% for resistances between 100Ω and 30kΩ with an even tighter matching tolerance of ±0.01% over the same resistance range available

Tight absolute TCR of ±2.5 ppm/°C (from -55°C up to +125°C)

Tight tracking TCR available of between ±0.5 ppm/°C and ±3 ppm/°C depending on resistance ratio between the two elements

Power rating of 0.3W per resistor package (at +125°C)

Maximum rated operating temperature +125°C

Working temperature from -65°C up to +150°C

The SM through-hole, ultra-precision resistor 1-2-3 network series exhibits excellent high frequency characteristics thanks to Alpha's Bulk Metal® foil resistor technology, making them suitable for the most demanding precision applications.

Alpha's SM resistor network series are ideal for use in input and feedback resistors for amplifiers due to both the input and feedback resistors being incorporated into the same package, therefore amplification is not affected by temperature change.

The below table gives the full specifications for each resistor model available including the Alpha SM series:

* Symbols parenthesized are for part number composition ** Please contact us for resistance availability TCR is from -25°C to +125°C for SLD Type

The SS conformally coated precision resistor network series from Alpha Electronics is fully customisable and offers excellent performance in TCR tracking, resistance ratio matching and stability thanks to Alpha's Bulk Metal® foil resistor technology. The SS precision resistor network series can offer up to a maximum of 5 resistive elements. Each resistive element can range from 30Ω up to 20kΩ all with tight tolerances down to +0.05% absolute and +0.01% matching (the maximum total resistance for the network is 100kΩ).

Fully customisable resistor network with up to 5 resistor elements and 5 different standard circuit layouts to choose from

Each resistor element is available in any resistance between 30Ω and 20kΩ

Maximum resistance value for complete resistor network of 100kΩ

Through-hole conformally coated package

Tight absolute tolerance of ±0.05% with an even tighter matching tolerance of ±0.01% available

Tight absolute TCR of ±5 ppm/°C (from -25°C up to +125°C)

Tight tracking TCR available of between ±1 ppm/°C and ±3 ppm/°C depending on resistance ratio (Rmax. / Rmin.)

Power rating of 1W for the complete resistor package (at +70°C)

Maximum rated operating temperature +70°C

Working temperature from -25°C up to +125°C

The SS conformally coated, through-hole, precision resistor network series exhibits excellent high frequency characteristics thanks to Alpha's Bulk Metal® foil resistor technology, making them suitable for the most demanding precision applications.

These resistors are fully customisable including the circuit layout. There are 5 standard circuit types available to choose from:

Circuit layout A - resistor array

Circuit layout B - independent resistors in the same package

Circuit layout C - divider network

Circuit layout E - circuit layout A split into 2 i.e. 2 separate resistor arrays

Circuit layout F - circuit layout C split into 2 i.e. 2 separate divider networks

For full details, please see the ultra-precision resistor networks supporting document under the technical library tab.

Pin pitch for the Alpha SS series will be in multiples of 2.54mm.

The below table gives the full specifications for each resistor model available including the Alpha SS series:

* TCR tracking is dependent on resistance ratio, please see Table 1 ** Symbols parenthesized are for part number composition

The CN custom through-hole resistor network series from Ohmcraft® provides a fully customisable solution for your resistor network needs. The CN series offers ohmic values up to 2GΩ, very low noise, ultra-high stability including tight ratio tolerances to ±0.1%, low absolute TCR to ±10 ppm/°C with a tracking TCR down to ±5 ppm/°C and a low VCR to 0.05 ppm/V. By utilising their patented Micropen® precision printing technology, FineFilm, Ohmcraft are able to provide an entirely new level of performance and stability in custom leaded resistor networks.

Due to the endless possibilities with the Ohmcraft CN custom resistor network series, each requirement will be individually reviewed and a part number allocated upon approval. Please include the following information for any requirement:

A schematic and physical diagram showing how all of the resistors interconnect

The value of each resistor

The desired TCR value (ppm/°C)

Overall tolerance and the tolerances for each individual component value

Type and length of leads

Any other information necessary to the manufacture of the network

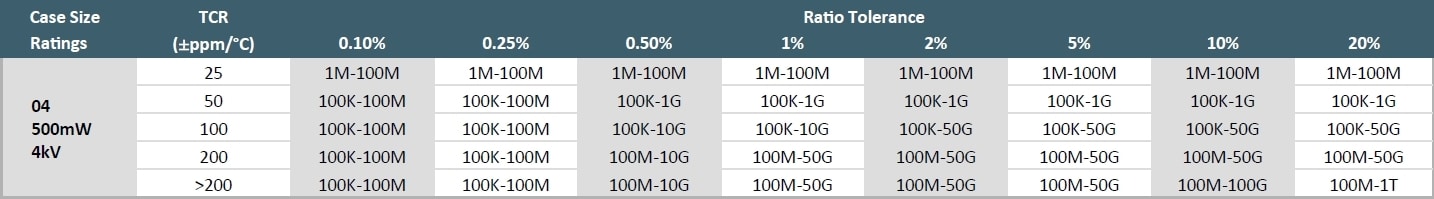

The HVD04 through-hole high voltage divider resistor series from Ohmcraft® offers a voltage rating of 4kV, power rating of 0.5W, standard ratios of 1000:1 (A) or 100:1 (B) and a resistance range from 100kΩ up to 1TΩ all in a small radial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film through-hole resistor. HVD04 high voltage divider resistors offer very low noise, ultra-high stability with ratio tolerances down to ±0.1% (between 100kΩ and 100MΩ), absolute TCR as low as ±25 ppm/°C (between 1MΩ and 100MΩ) and VCR down to 0.05 ppm/V.

Radial leaded through-hole high voltage divider resistor

Ratios of 1000:1 (A) and 100:1 (B) as standard or custom ratios available upon request

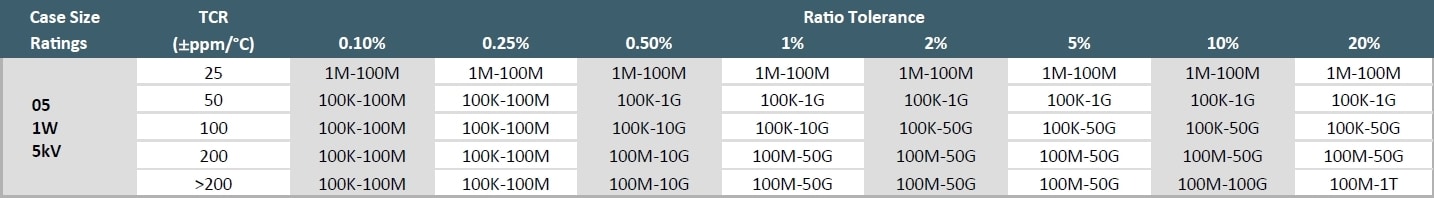

The HVD05 through-hole high voltage divider resistor series from Ohmcraft® offers a voltage rating of 5kV, power rating of 1W, standard ratios of 1000:1 (A) or 100:1 (B) and a resistance range from 100kΩ up to 1TΩ all in a small radial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film through-hole resistor. HVD05 high voltage divider resistors offer very low noise, ultra-high stability with ratio tolerances down to ±0.1% (between 100kΩ and 100MΩ), absolute TCR as low as ±25 ppm/°C (between 1MΩ and 100MΩ) and VCR down to 0.05 ppm/V.

Radial leaded through-hole high voltage divider resistor

Ratios of 1000:1 (A) and 100:1 (B) as standard or custom ratios available upon request

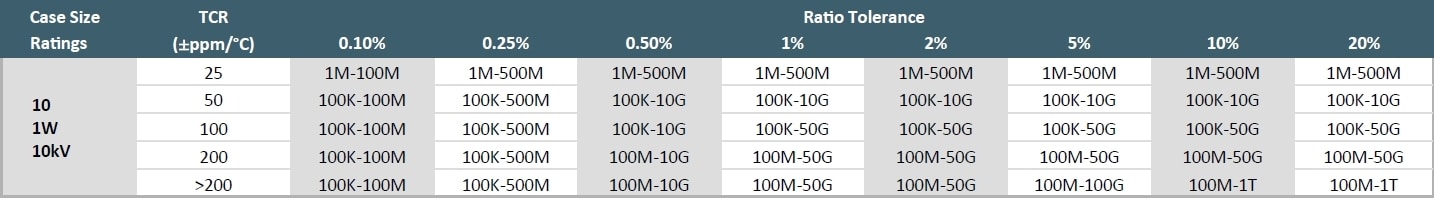

The HVD10 through-hole high voltage divider resistor series from Ohmcraft® offers a voltage rating of 10kV, power rating of 1W, standard ratios of 1000:1 (A) or 100:1 (B) and a resistance range from 100kΩ up to 1TΩ all in a small radial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film through-hole resistor. HVD10 high voltage divider resistors offer very low noise, ultra-high stability with ratio tolerances down to ±0.1% (between 100kΩ and 100MΩ), absolute TCR as low as ±25 ppm/°C (between 1MΩ and 500MΩ) and VCR down to 0.05 ppm/V.

Radial leaded through-hole high voltage divider resistor

Ratios of 1000:1 (A) and 100:1 (B) as standard or custom ratios available upon request

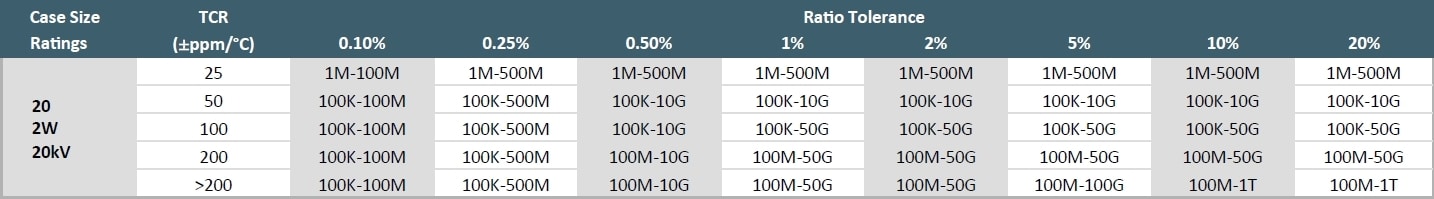

The HVD20 through-hole high voltage divider resistor series from Ohmcraft® offers a voltage rating of 20kV, power rating of 2W, standard ratios of 1000:1 (A) or 100:1 (B) and a resistance range from 100kΩ up to 1TΩ all in a small radial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film through-hole resistor. HVD20 high voltage divider resistors offer very low noise, ultra-high stability with ratio tolerances down to ±0.1% (between 100kΩ and 100MΩ), absolute TCR as low as ±25 ppm/°C (between 1MΩ and 500MΩ) and VCR down to 0.05 ppm/V.

Radial leaded through-hole high voltage divider resistor

Ratios of 1000:1 (A) and 100:1 (B) as standard or custom ratios available upon request

The HVD30 through-hole high voltage divider resistor series from Ohmcraft® offers a voltage rating of 30kV, power rating of 3W, standard ratios of 1000:1 (A) or 100:1 (B) and a resistance range from 100kΩ up to 1TΩ all in a small radial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film through-hole resistor. HVD30 high voltage divider resistors offer very low noise, ultra-high stability with ratio tolerances down to ±0.1% (between 100kΩ and 100MΩ), absolute TCR as low as ±25 ppm/°C (between 1MΩ and 500MΩ) and VCR down to 0.05 ppm/V.

Radial leaded through-hole high voltage divider resistor

Ratios of 1000:1 (A) and 100:1 (B) as standard or custom ratios available upon request

The HVD40 through-hole high voltage divider resistor series from Ohmcraft® offers a voltage rating of 40kV, power rating of 6W, standard ratios of 1000:1 (A) or 100:1 (B) and a resistance range from 100kΩ up to 1TΩ all in a small radial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film through-hole resistor. HVD40 high voltage divider resistors offer very low noise, ultra-high stability with ratio tolerances down to ±0.1% (between 100kΩ and 100MΩ), absolute TCR as low as ±25 ppm/°C (between 1MΩ and 500MΩ) and VCR down to 0.05 ppm/V.

Radial leaded through-hole high voltage divider resistor

Ratios of 1000:1 (A) and 100:1 (B) as standard or custom ratios available upon request
