Browse wide range of High Voltage resistors from leading industry manufacturers at Rhopoint Components. Available as through-hole and surface mount options, and with a wide range of votage ratings, power ratings, tolerances and other variables, we can find the right solution for your project, however big or small.
Can't find what you're looking for? Contact us, we can often offer customised solution to meet all your needs.
The HVA05 precision high voltage axial resistor series from Ohmcraft® offers a voltage rating of 5kV, power rating of 1W and a resistance range from 500kΩ up to 500MΩ all in a cylindrical axial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, non-inductive thick-film resistor. HVA resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (500kΩ to 100MΩ), TCR as low as ±50 ppm/°C and VCR down to 0.1 ppm/V.
Ohmcraft's HVA05 high voltage axial leaded through-hole resistor series offers a body length of 14.27mm (±0.76mm) and a diameter of 4.57mm (±0.38mm). The lead length is 38.1mm (±3.18mm) with a diameter of 0.64mm (±0.05mm).
The HVA series is produced using an Alumina substrate, coated in high-temperature silicone conformal and fitted with stainless steel end caps. The leads are solderable Gold and Nickel plated copper (RoHS compliant).
For custom configurations or requirements, please contact us.

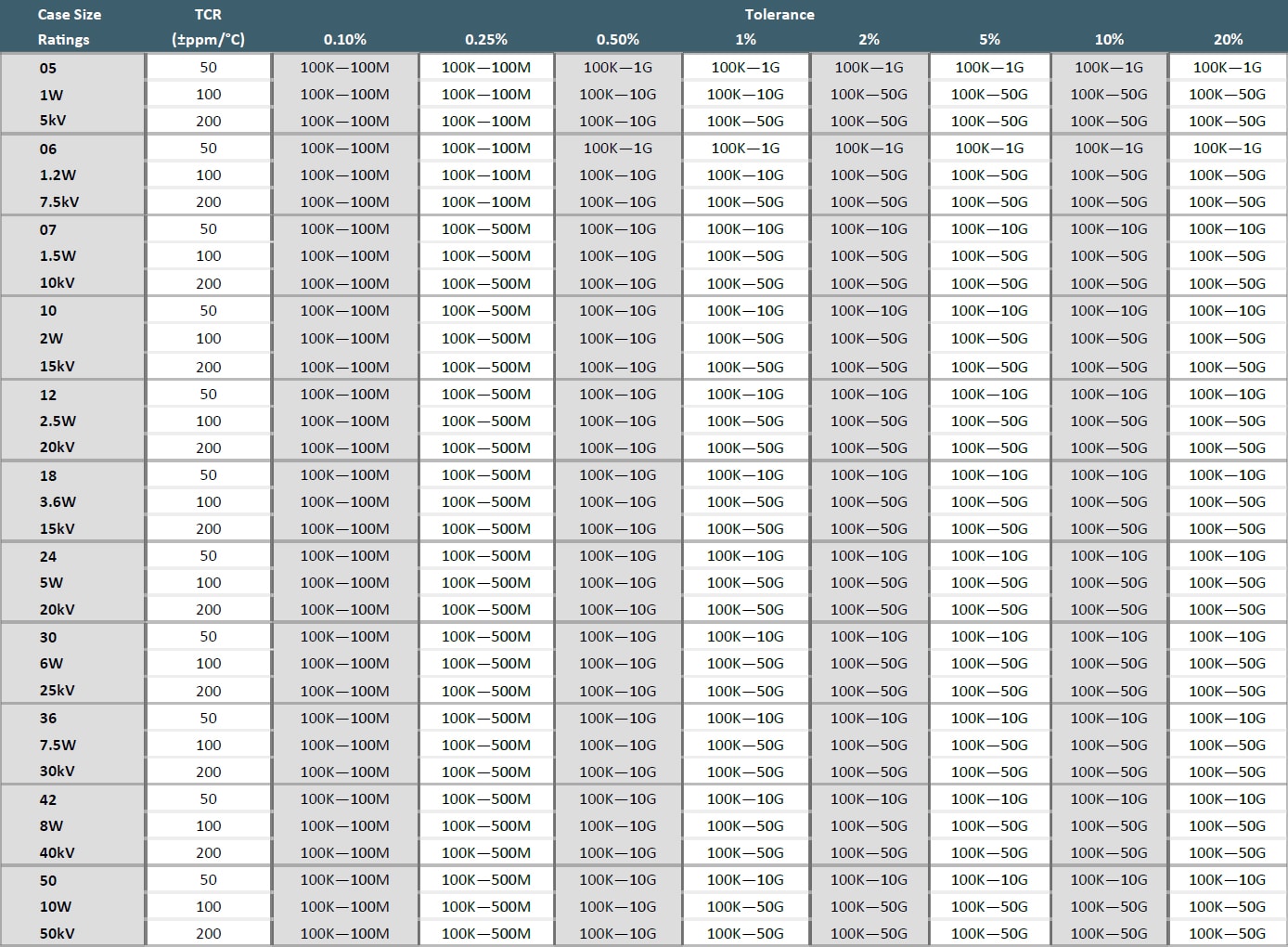

The below table gives the specifications available for the complete HVA series including the HVA05:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVA10 precision high voltage axial resistor series from Ohmcraft® offers a voltage rating of 15kV, power rating of 2W and a resistance range from 500kΩ up to 2GΩ all in a cylindrical axial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, non-inductive thick-film resistor. HVA resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (500kΩ to 100MΩ), TCR as low as ±50 ppm/°C and VCR down to 0.1 ppm/V.
Ohmcraft's HVA10 high voltage axial leaded through-hole resistor series offers a body length of 38.1mm (±0.76mm) and a diameter of 4.57mm (±0.38mm). The lead length is 38.1mm (±3.18mm) with a diameter of 0.64mm (±0.05mm).
The HVA series is produced using an Alumina substrate, coated in high-temperature silicone conformal and fitted with stainless steel end caps. The leads are solderable Gold and Nickel plated copper (RoHS compliant).
For custom configurations or requirements, please contact us.
The below table gives the specifications available for the complete HVA series including the HVA10:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVA18 precision high voltage axial resistor series from Ohmcraft® offers a voltage rating of 15kV, power rating of 3.6W and a resistance range from 500kΩ up to 2GΩ all in a cylindrical axial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, non-inductive thick-film resistor. HVA resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (500kΩ to 100MΩ), TCR as low as ±50 ppm/°C and VCR down to 0.1 ppm/V.
Ohmcraft's HVA18 high voltage axial leaded through-hole resistor series offers a body length of 38.1mm (±0.76mm) and a diameter of 7.87mm (±0.38mm). The lead length is 38.1mm (±3.18mm) with a diameter of 1.02mm (±0.05mm).
The HVA series is produced using an Alumina substrate, coated in high-temperature silicone conformal and fitted with stainless steel end caps. The leads are solderable Gold and Nickel plated copper (RoHS compliant).
For custom configurations or requirements, please contact us.
The below table gives the specifications available for the complete HVA series including the HVA18:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVA25 precision high voltage axial resistor series from Ohmcraft® offers a voltage rating of 20kV, power rating of 5W and a resistance range from 500kΩ up to 4GΩ all in a cylindrical axial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, non-inductive thick-film resistor. HVA resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (500kΩ to 100MΩ), TCR as low as ±50 ppm/°C and VCR down to 0.1 ppm/V.
Ohmcraft's HVA25 high voltage axial leaded through-hole resistor series offers a body length of 53.98mm (±0.76mm) and a diameter of 7.87mm (±0.38mm). The lead length is 38.1mm (±3.18mm) with a diameter of 1.02mm (±0.05mm).
The HVA series is produced using an Alumina substrate, coated in high-temperature silicone conformal and fitted with stainless steel end caps. The leads are solderable Gold and Nickel plated copper (RoHS compliant).
For custom configurations or requirements, please contact us.
The below table gives the specifications available for the complete HVA series including the HVA25:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVA38 precision high voltage axial resistor series from Ohmcraft® offers a voltage rating of 30kV, power rating of 7.5W and a resistance range from 500kΩ up to 6GΩ all in a cylindrical axial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, non-inductive thick-film resistor. HVA resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (500kΩ to 100MΩ), TCR as low as ±50 ppm/°C and VCR down to 0.1 ppm/V.
Ohmcraft's HVA38 high voltage axial leaded through-hole resistor series offers a body length of 79.38mm (±0.76mm) and a diameter of 7.87mm (±0.38mm). The lead length is 38.1mm (±3.18mm) with a diameter of 1.02mm (±0.05mm).
The HVA series is produced using an Alumina substrate, coated in high-temperature silicone conformal and fitted with stainless steel end caps. The leads are solderable Gold and Nickel plated copper (RoHS compliant).
For custom configurations or requirements, please contact us.
The below table gives the specifications available for the complete HVA series including the HVA38:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVA50 precision high voltage axial resistor series from Ohmcraft® offers a voltage rating of 50kV, power rating of 10W and a resistance range from 500kΩ up to 10GΩ all in a cylindrical axial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, non-inductive thick-film resistor. HVA resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (500kΩ to 100MΩ), TCR as low as ±50 ppm/°C and VCR down to 0.1 ppm/V.
Ohmcraft's HVA50 high voltage axial leaded through-hole resistor series offers a body length of 127.38mm (±0.76mm) and a diameter of 7.87mm (±0.38mm). The lead length is 38.1mm (±3.18mm) with a diameter of 1.02mm (±0.05mm).
The HVA series is produced using an Alumina substrate, coated in high-temperature silicone conformal and fitted with stainless steel end caps. The leads are solderable Gold and Nickel plated copper (RoHS compliant).
For custom configurations or requirements, please contact us.
The below table gives the specifications available for the complete HVA series including the HVA50:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVC0402 high voltage chip resistor series from Ohmcraft® offers a voltage rating of 150V, power rating of 0.04W and a resistance range from 10kΩ up to 1GΩ all in a 0402 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. The HVC0402 resistors series offers very low noise, ultra-high stability with tolerances down to ±1% (between 10kΩ and 500MΩ), TCR as low as ±50 ppm/°C (between 10kΩ and 100MΩ) and VCR down to 1 ppm/V.
Ohmcraft's HVC0402 ultra-high voltage surface-mount resistors are available with various terminations:
Please see the HVC series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.

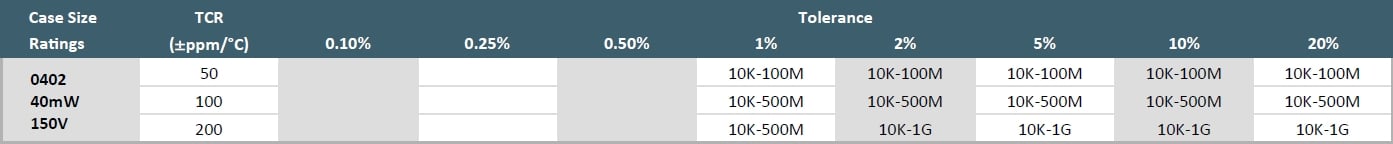

The below table gives the available specifications for the HVC0402 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVC0603 high voltage chip resistor series from Ohmcraft® offers a voltage rating of 400V, power rating of 0.06W and a resistance range from 10kΩ up to 50GΩ all in a 0603 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. The HVC0603 resistors series offers very low noise, ultra-high stability with tolerances down to ±0.5% (between 10kΩ and 10MΩ), TCR as low as ±50 ppm/°C (between 10kΩ and 500MΩ) and VCR down to 1 ppm/V.
Ohmcraft's HVC0603 ultra-high voltage surface-mount resistors are available with various terminations:
Please see the HVC series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.

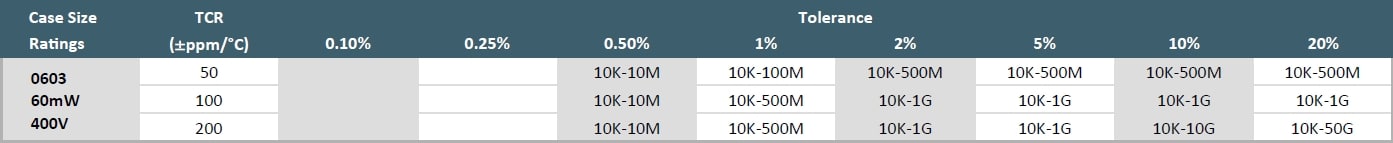

The below table gives the available specifications for the HVC0603 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVC0805 high voltage chip resistor series from Ohmcraft® offers a voltage rating of 600V, power rating of 0.2W and a resistance range from 10kΩ up to 50GΩ all in a 0805 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. The HVC0805 resistors series offers very low noise, ultra-high stability with tolerances down to ±0.5% (between 10kΩ and 10MΩ), TCR as low as ±50 ppm/°C (between 10kΩ and 500MΩ) and VCR down to 1 ppm/V.
Ohmcraft's HVC0805 ultra-high voltage surface-mount resistors are available with various terminations:
Please see the HVC series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.

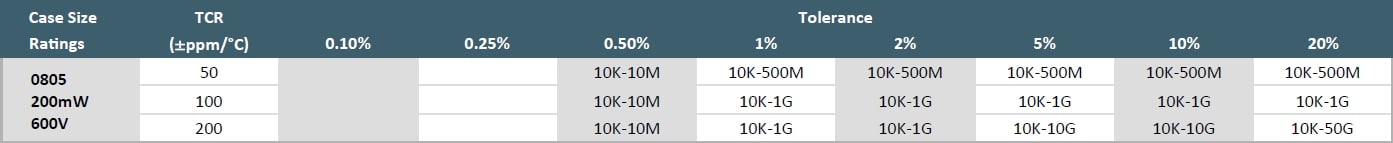

The below table gives the available specifications for the HVC0805 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVC1206 high voltage chip resistor series from Ohmcraft® offers a voltage rating of 1.5kV, power rating of 0.33W and a resistance range from 10kΩ up to 50GΩ all in a 1206 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. The HVC1206 resistors series offers very low noise, ultra-high stability with tolerances down to ±0.1% (between 10kΩ and 10MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 10MΩ) and VCR down to 1 ppm/V.
Ohmcraft's HVC1206 ultra-high voltage surface-mount resistors are available with various terminations:
Please see the HVC series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.

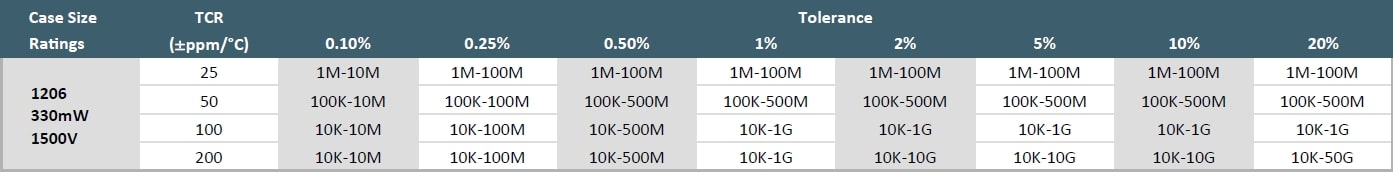

The below table gives the available specifications for the HVC1206 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVC2010 high voltage chip resistor series from Ohmcraft® offers a voltage rating of 2kV, power rating of 1W and a resistance range from 10kΩ up to 50GΩ all in a 2010 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. The HVC2010 resistors series offers very low noise, ultra-high stability with tolerances down to ±0.1% (between 10kΩ and 10MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 10MΩ) and VCR down to 1 ppm/V.
Ohmcraft's HVC2010 ultra-high voltage surface-mount resistors are available with various terminations:
Please see the HVC series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.

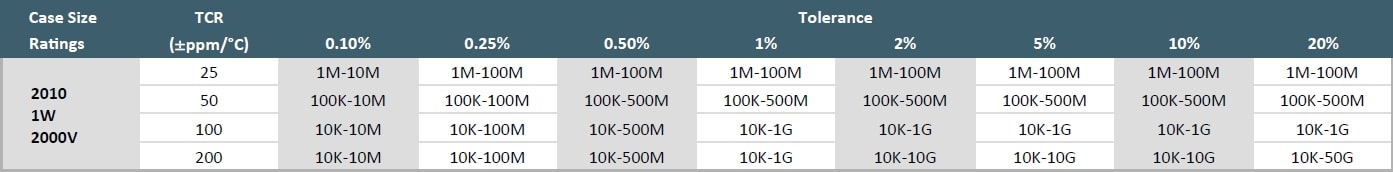

The below table gives the available specifications for the HVC2010 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVC2512 high voltage chip resistor series from Ohmcraft® offers a voltage rating of 3kV, power rating of 2W and a resistance range from 10kΩ up to 50GΩ all in a 2512 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. The HVC2512 resistors series offers very low noise, ultra-high stability with tolerances down to ±0.1% (between 10kΩ and 100MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 100MΩ) and VCR down to 1 ppm/V.
Ohmcraft's HVC2512 ultra-high voltage surface-mount resistors are available with various terminations:
Please see the HVC series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.

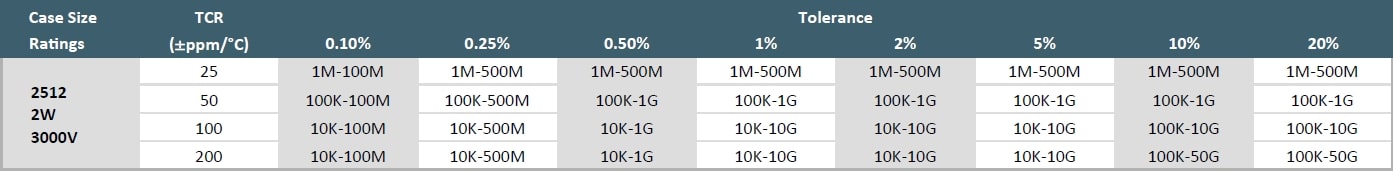

The below table gives the available specifications for the HVC2512 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVC3512 high voltage chip resistor series from Ohmcraft® offers a voltage rating of 3.5kV, power rating of 2W and a resistance range from 10kΩ up to 50GΩ all in a 3512 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. The HVC3512 resistors series offers very low noise, ultra-high stability with tolerances down to ±0.1% (between 10kΩ and 100MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 100MΩ) and VCR down to 1 ppm/V.
Ohmcraft's HVC3512 ultra-high voltage surface-mount resistors are available with various terminations:
Please see the HVC series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.
The below table gives the available specifications for the HVC3512 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVC4020 high voltage chip resistor series from Ohmcraft® offers a voltage rating of 4kV, power rating of 2W and a resistance range from 10kΩ up to 50GΩ all in a 4020 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. The HVC4020 resistors series offers very low noise, ultra-high stability with tolerances down to ±0.1% (between 10kΩ and 100MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 100MΩ) and VCR down to 1 ppm/V.
Ohmcraft's HVC4020 ultra-high voltage surface-mount resistors are available with various terminations:
Please see the HVC series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.

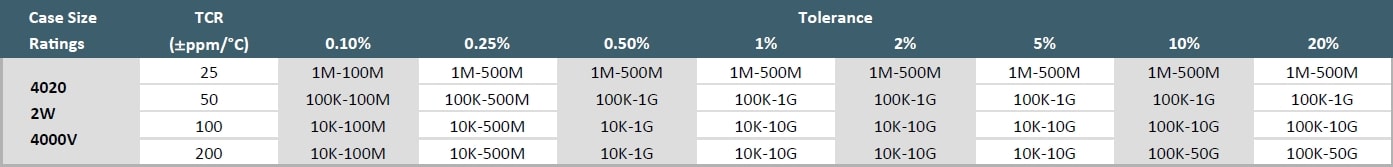

The below table gives the available specifications for the HVC4020 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The HVC5020 high voltage chip resistor series from Ohmcraft® offers a voltage rating of 5kV, power rating of 2W and a resistance range from 10kΩ up to 50GΩ all in a 5020 chip size package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film surface-mount resistor. The HVC5020 resistors series offers very low noise, ultra-high stability with tolerances down to ±0.1% (between 10kΩ and 100MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 100MΩ) and VCR down to 1 ppm/V.
Ohmcraft's HVC5020 ultra-high voltage surface-mount resistors are available with various terminations:
Please see the HVC series datasheet under the Technical Library tab for other available chip sizes and standard products.
For custom configurations or requirements, please contact us.

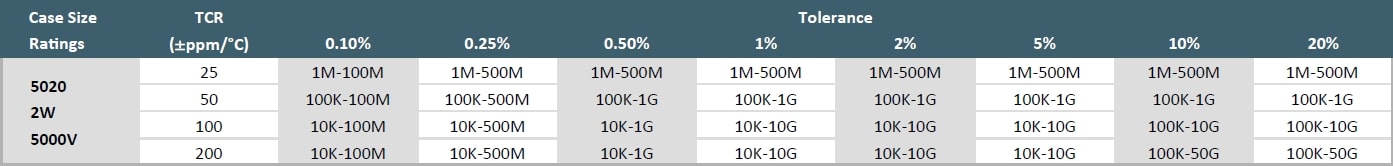

The below table gives the available specifications for the HVC5020 series:
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
