Liquid Level, Flow and Temperature Sensors, Pressure Transducers, High Voltage Relays and Signal Conditioners |
|
For their official website, please click here |
The D1 series of reed relays with changeover contacts offers 100W switching power (at 33.3V DC switching voltage), isolation across contacts of 0.75kV (AC or DC peak) and highly reliable tungsten contacts. These relays utilise high vacuum reed switches to achieve the excellent switching characteristics, and are often used in safety critical applications. The D1 series of relays is offered with or without magnetic screen and is PCB mountable, with custom mounting options available upon request. The series has been UL approved as per pollution degree 2 classification.
Typical applications for the Cynergy3 D1 changeover relay series include

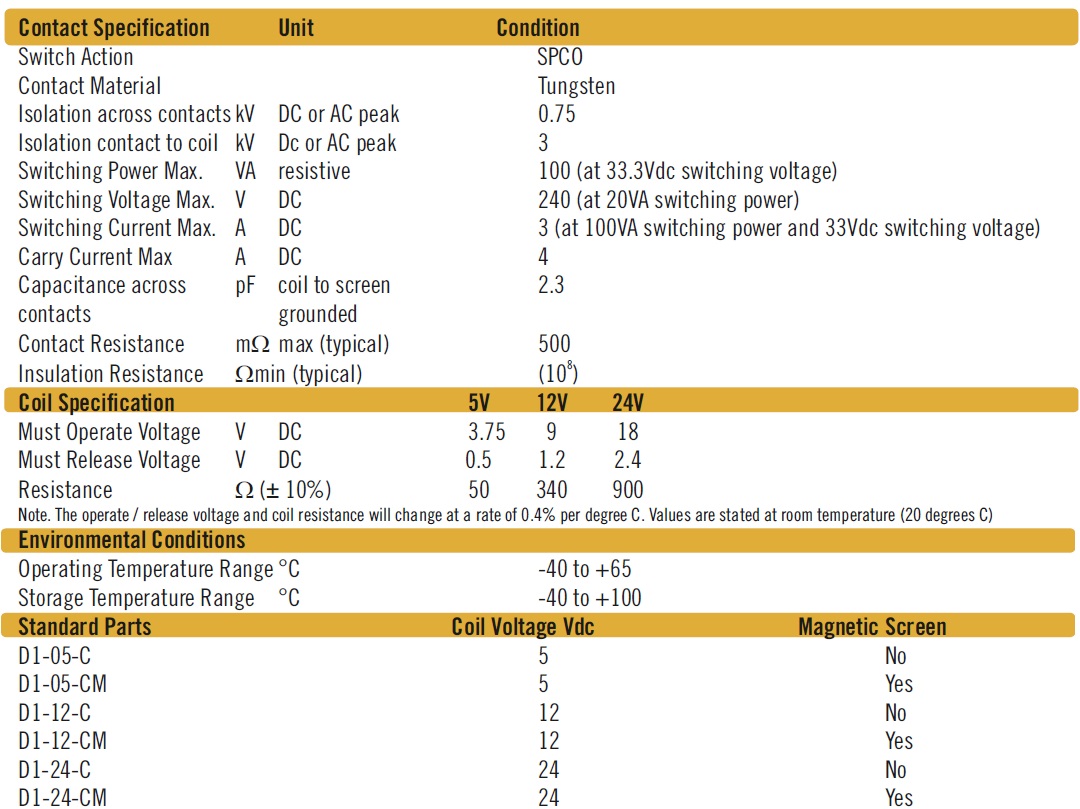

The below table gives the full specifications for each resistor model available including the Cynergy3 D1 series:
£0.00 Ex Tax: £0.00
The DA (UL) series of normally open, high voltage relays offers isolation voltage of 10kV with contact resistance as low as 15mΩ (typical for Rhodium contacts). These relays utilise high vacuum reed switches to achieve the excellent characteristics, and are available in choice of Rhodium or Tungsten contacts - the Rhodium contacts offer lower contact resistance, while the Tungsten handles higher switching voltages. The DA (UL) series of relays is offered as PCB and panel mountable with variety of connection options. The series has been UL approved as per pollution degree 2 classification.
Typical applications for the Cynergy3 DA (UL) N/O high voltage relay series include

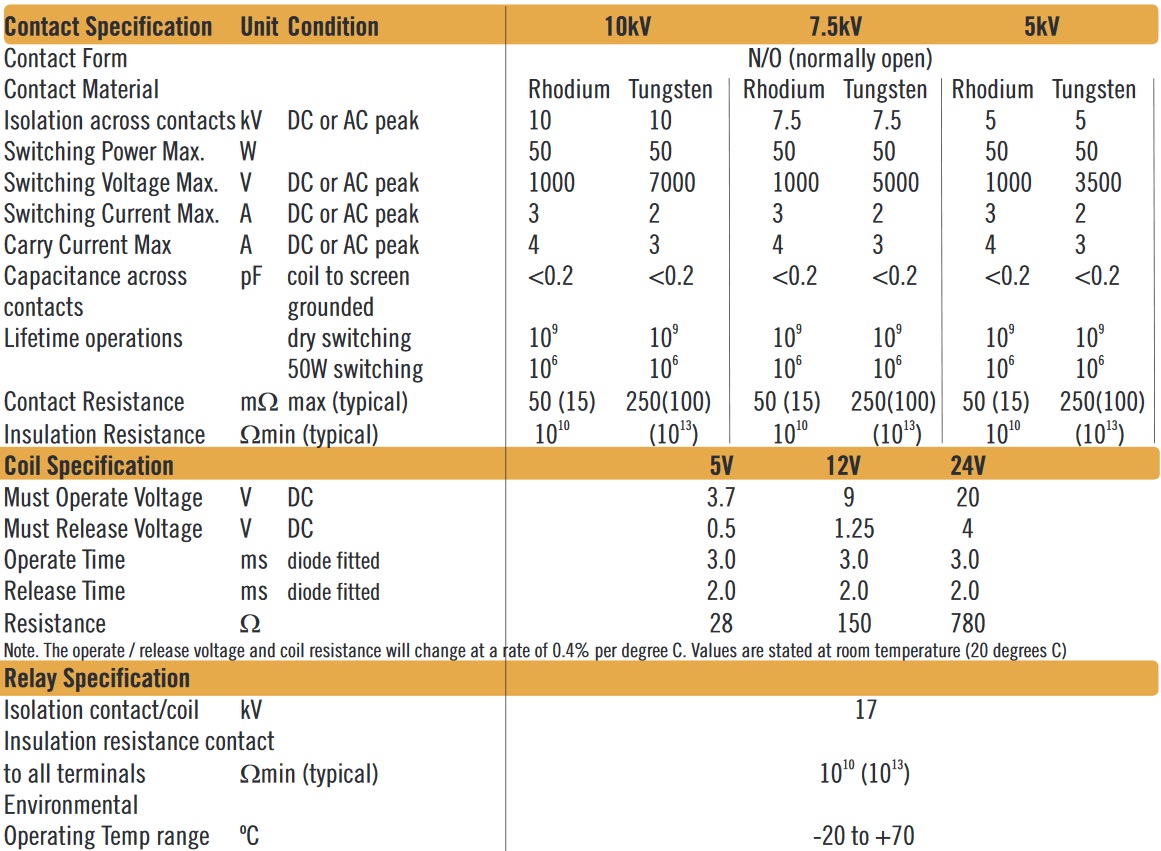

The below table gives the full specifications for each resistor model available including the Cynergy3 DA (UL) series:
£0.00 Ex Tax: £0.00
The DA (UL) series of normally open, high voltage relays offers isolation voltage of 5kV with contact resistance as low as 15mΩ (typical for Rhodium contacts). These relays utilise high vacuum reed switches to achieve the excellent characteristics, and are available in choice of Rhodium or Tungsten contacts - the Rhodium contacts offer lower contact resistance, while the Tungsten handles higher switching voltages. The DA (UL) series of relays is offered as PCB and panel mountable with variety of connection options. The series has been UL approved as per pollution degree 2 classification.
Typical applications for the Cynergy3 DA (UL) N/O high voltage relay series include
The below table gives the full specifications for each resistor model available including the Cynergy3 DA (UL) series:
£0.00 Ex Tax: £0.00
The DA (UL) series of normally open, high voltage relays offers isolation voltage of 7.5kV with contact resistance as low as 15mΩ (typical for Rhodium contacts). These relays utilise high vacuum reed switches to achieve the excellent characteristics, and are available in choice of Rhodium or Tungsten contacts - the Rhodium contacts offer lower contact resistance, while the Tungsten handles higher switching voltages. The DA (UL) series of relays is offered as PCB and panel mountable with variety of connection options. The series has been UL approved as per pollution degree 2 classification.
Typical applications for the Cynergy3 DA (UL) N/O high voltage relay series include
The below table gives the full specifications for each resistor model available including the Cynergy3 DA (UL) series:
£0.00 Ex Tax: £0.00
The DB (UL) series of normally closed, high voltage relays offers isolation voltage of 10kV with contact resistance as low as 15mΩ (typical for Rhodium contacts). These relays utilise high vacuum reed switches to achieve the excellent characteristics, and are available in choice of Rhodium or Tungsten contacts - the Rhodium contacts offer lower contact resistance, while the Tungsten handles higher switching voltages. The DB (UL) series of relays is offered as PCB and panel mountable with variety of connection options. The series has been UL approved as per pollution degree 2 classification.
Typical applications for the Cynergy3 DB (UL) N/C high voltage relay series include

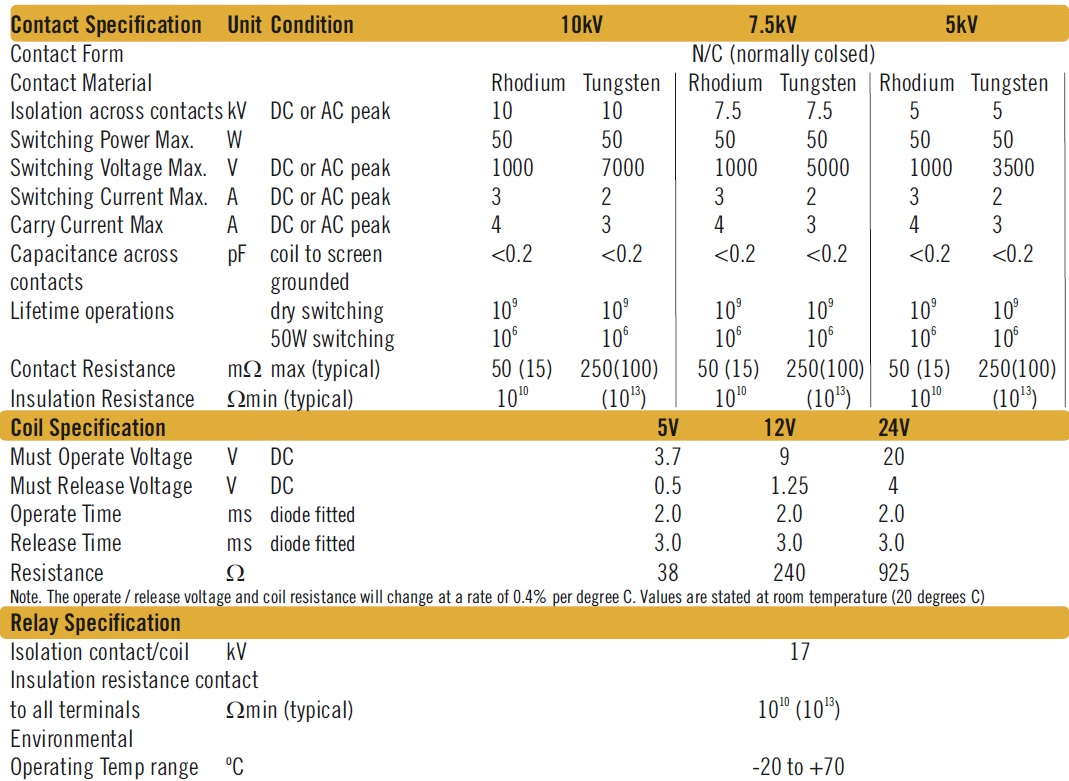

The below table gives the full specifications for each resistor model available including the Cynergy3 DB (UL) series:
£0.00 Ex Tax: £0.00
The DB (UL) series of normally closed, high voltage relays offers isolation voltage of 5kV with contact resistance as low as 15mΩ (typical for Rhodium contacts). These relays utilise high vacuum reed switches to achieve the excellent characteristics, and are available in choice of Rhodium or Tungsten contacts - the Rhodium contacts offer lower contact resistance, while the Tungsten handles higher switching voltages. The DB (UL) series of relays is offered as PCB and panel mountable with variety of connection options. The series has been UL approved as per pollution degree 2 classification.
Typical applications for the Cynergy3 DB (UL) N/C high voltage relay series include
The below table gives the full specifications for each resistor model available including the Cynergy3 DB (UL) series:
£0.00 Ex Tax: £0.00
The DB (UL) series of normally closed, high voltage relays offers isolation voltage of 7.5kV with contact resistance as low as 15mΩ (typical for Rhodium contacts). These relays utilise high vacuum reed switches to achieve the excellent characteristics, and are available in choice of Rhodium or Tungsten contacts - the Rhodium contacts offer lower contact resistance, while the Tungsten handles higher switching voltages. The DB (UL) series of relays is offered as PCB and panel mountable with variety of connection options. The series has been UL approved as per pollution degree 2 classification.
Typical applications for the Cynergy3 DB (UL) N/C high voltage relay series include
The below table gives the full specifications for each resistor model available including the Cynergy3 DB (UL) series:
£0.00 Ex Tax: £0.00
The FS15 series of normally open flow switches by Cynergy3 utilises a fixed reed switch with a low flow restriction and a moving magnet to enable accurate flow detection, while ensuring minimal fluid flow restriction. These inline switches are designed for operation in liquid flow systems with pressure of up to 10 bar (not suitable for systems containing significant amount of solid particles) and come in 15mm tube size with a low-flow version available. The FS15 series flow switches can be operated in temperatures of up to 85°C and are WRAS approved for use in cold and hot water up to 60°C.
Customisation is available on this product - speak to our technical sales team to discuss your requirement.

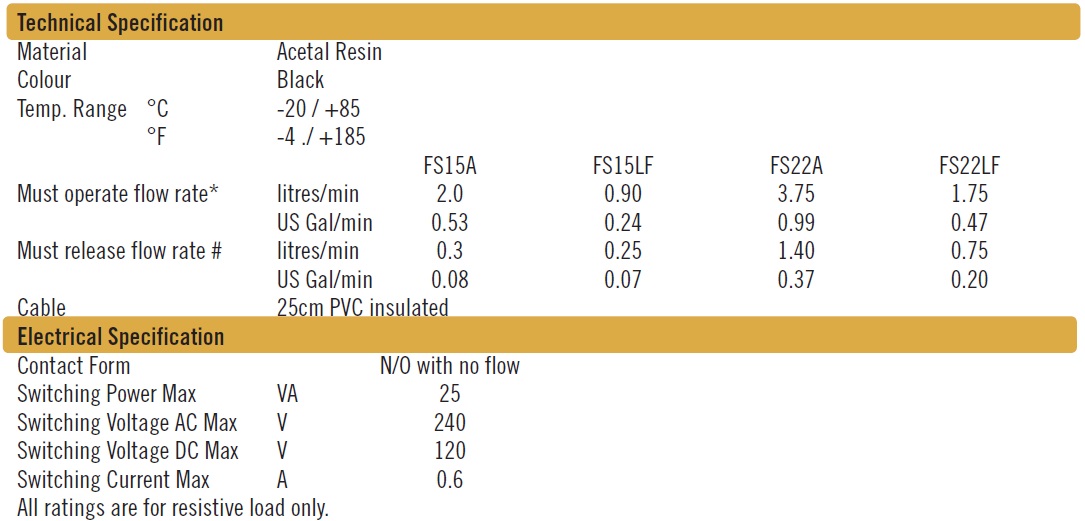

The below table gives the full specifications for each resistor model available including the Cynergy3 FS15 series:
£0.00 Ex Tax: £0.00
The FS22 series of normally open flow switches by Cynergy3 utilises a fixed reed switch with a low flow restriction and a moving magnet to enable accurate flow detection, while ensuring minimal fluid flow restriction. These inline switches are designed for operation in liquid flow systems with pressure of up to 10 bar (not suitable for systems containing significant amount of solid particles) and come in 22mm tube size with a low-flow version available. The FS15 series flow switches can be operated in temperatures of up to 85°C and are WRAS approved for use in cold and hot water up to 60°C.
Customisation is available on this product - speak to our technical sales team to discuss your requirement.
The below table gives the full specifications for each resistor model available including the Cynergy3 FS22 series:
£0.00 Ex Tax: £0.00
The ILLS series of submersible tank gauging level transmitters from Cynergy3 utilises piezo-resistive silicon sensing technology to achieve better level of control and measurements for small tanks (1m to 10m high), while ensuring excellent stability, repeatability and resolution. The probe is isolated by a stainless steel diaphragm as well as steel housing, designed for continuous submersion in liquids. This level transmitter offers accuracy below 0.5% of the full scale BFSL, with each device being temperature compensated, calibrated and fully traceable.
The ILLS series of level transmitters is available in several output, pressure range and cable length options. Further customisation is available on this product - speak to our technical sales team to discuss your requirement.
Typical applications for the Cynergy3 ILLS level transmitter series include:
The below table gives the full specifications for each resistor model available including the Cynergy3 ILLS series:
£0.00 Ex Tax: £0.00
The IPS series of ceramic industrial pressure transducers from Cynergy3 utilises piezo-resistive ceramic sensing technology to achieve excellent accuracy (<±0.25% of the full scale BFSL) and a microprocessor based amplifier for stability, making it an ideal device for industrial applications. The IPS pressure transducer is available with selection of pressure ratings (between -1 and 400 bar G) and outputs (4-20mA, 0-100mV or 0-5V). Moreover, the sensor features stainless steel housing ensuring excellent media compatibility. Each device comes temperature compensated, calibrated and fully traceable.
The IPS series of pressure transducers is available in several output and pressure range options. Further customisation is available on this product - speak to our technical sales team to discuss your requirement.
Typical applications for the Cynergy3 IPS pressure transducer series include:
The below table gives the full specifications for each resistor model available including the Cynergy3 IPS series:
£0.00 Ex Tax: £0.00
The IPSAT series of intrinsically safe industrial pressure transducers from Cynergy3 utilises piezo-resistive ceramic sensing technology to achieve excellent accuracy (<±0.25% of the full scale BFSL) and a microprocessor based amplifier for stability, making it an ideal device for industrial applications. The IPSAT pressure transducer is available with selection of pressure ratings (between -1 and 400 bar G) and 4-20mA output. Moreover, the sensor features stainless steel housing ensuring excellent media compatibility. Each device comes temperature compensated, calibrated and fully traceable. The IPSAT series of pressure transducers is fully ATEX and IECEx approved, making is suitable for applications in hazardous areas.
The IPSAT series of intrinsically safe pressure transducers is available in several pressure range options, with further customisation available - speak to our technical sales team to discuss your requirement.
Typical applications for the Cynergy3 IPSAT pressure transducers series include:
The below table gives the full specifications for each resistor model available including the Cynergy3 IPSAT series:
£0.00 Ex Tax: £0.00
The ITT series of programmable temperature probes utilise K or J thermocouple or a PT100 RTD sensor and a 6mm stainless steel sheath for efficient temperature measurement (accuracy of 0.1% for RTD and 0.2% for thermocouple), delivered via programmable 4-20mA transmitter output. The probe comes pre-programmed for easy setup, but the can be configured to any temperature range within the probe's capability using the software provided.
The ITT series of pressure transducers is available with a variety of accessories such as plastic and metal cable glands, compression fittings or stainless steel pockets - speak to our technical sales team to discuss your requirement.
The below table gives the full specifications for each resistor model available including the Cynergy3 ITT series:
£0.00 Ex Tax: £0.00
The ITTU series of programmable temperature probes utilise K or J thermocouple or a PT100 RTD sensor and a 6mm stainless steel sheath for efficient temperature measurement (accuracy of 0.1% for RTD and 0.2% for thermocouple), delivered via programmable 4-20mA transmitter output. The probe comes pre-programmed for easy setup, but the can be configured to any temperature range within the probe's capability using the software provided.
The ITTU series of pressure transducers is available with a variety of accessories such as plastic and metal cable glands, compression fittings or stainless steel pockets - speak to our technical sales team to discuss your requirement.
The below table gives the full specifications for each resistor model available including the Cynergy3 ITTU series:
£0.00 Ex Tax: £0.00
The IWPT series of wireless industrial pressure transducers from Cynergy3 utilises piezo-resistive thick film ceramic sensor to offer an excellent cost effective alternative to traditional wired transducers in inaccessible or expensive installation environments. The sensors feature accuracy as low as <±0.25% of the full scale (BFSL), selection of pressure ranges from -1 to +400 bar gauge and up to 750m line-on-site range. The IWPT series' user selectable features include transmission update rates, output (1-5V or 4-20mA) and configuration (single or 5 channel; depending on receiver used). The IWPT series is designed to be paired with one of the IWR family of wireless receivers for simple plug-and-play pressure measurement solution; a swivel adaptor is available to allow easy alignment of the head with the receiver. The sensors are housed within a 316 stainless steel body, making them suitable to use with liquids and gases. Each device comes temperature compensated, calibrated and fully traceable.
The IWPT series of pressure transducers is available in several output and pressure range options. Further customisation is available on this product - speak to our technical sales team to discuss your requirement.
Typical applications for the Cynergy3 IWPT pressure transducer series include:

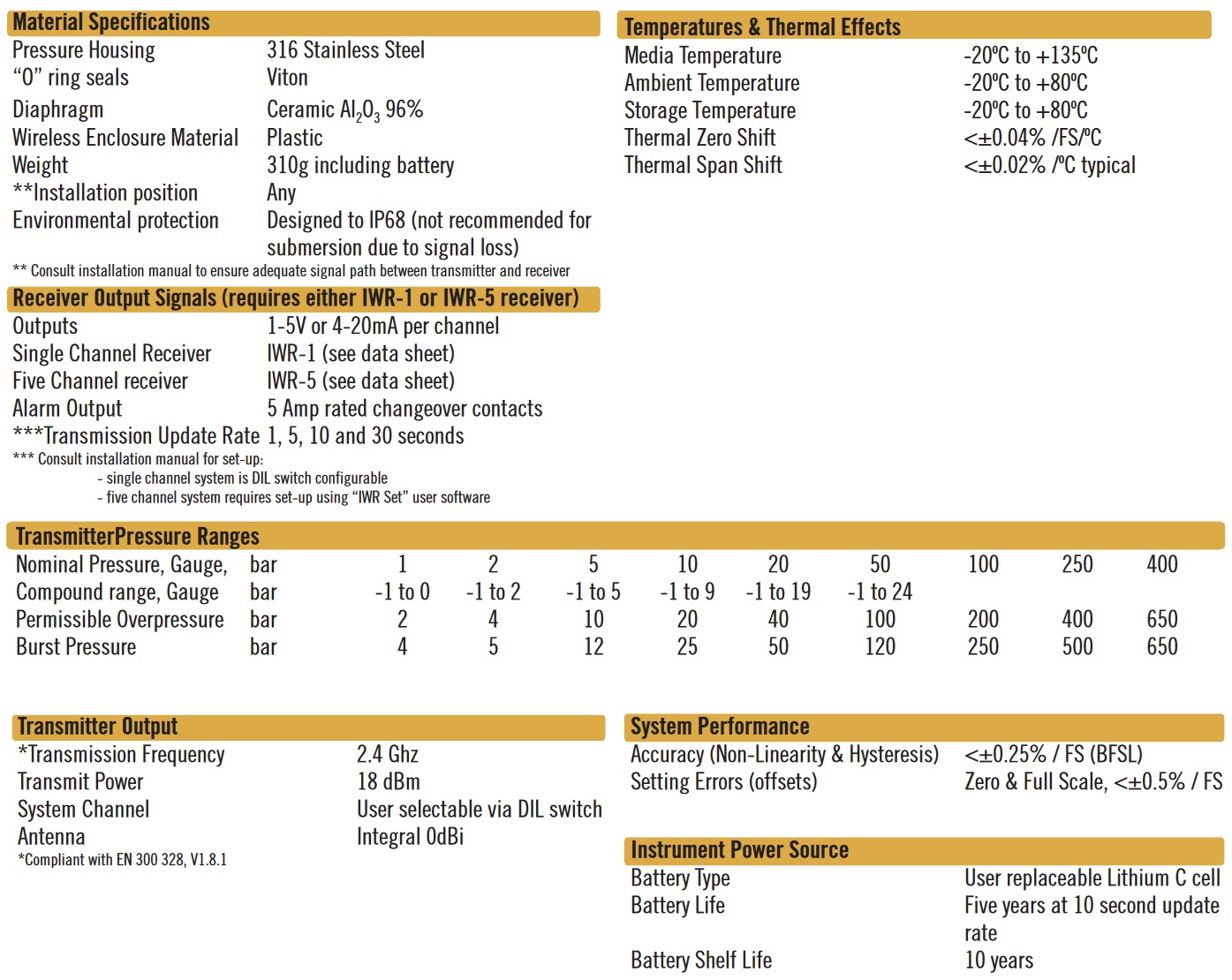

The below table gives the full specifications for each resistor model available including the Cynergy3 IWPT series:
£0.00 Ex Tax: £0.00
